板装插座 2mm 插件180° 40位(带锁扣)
FWF20012-D40S22W5B

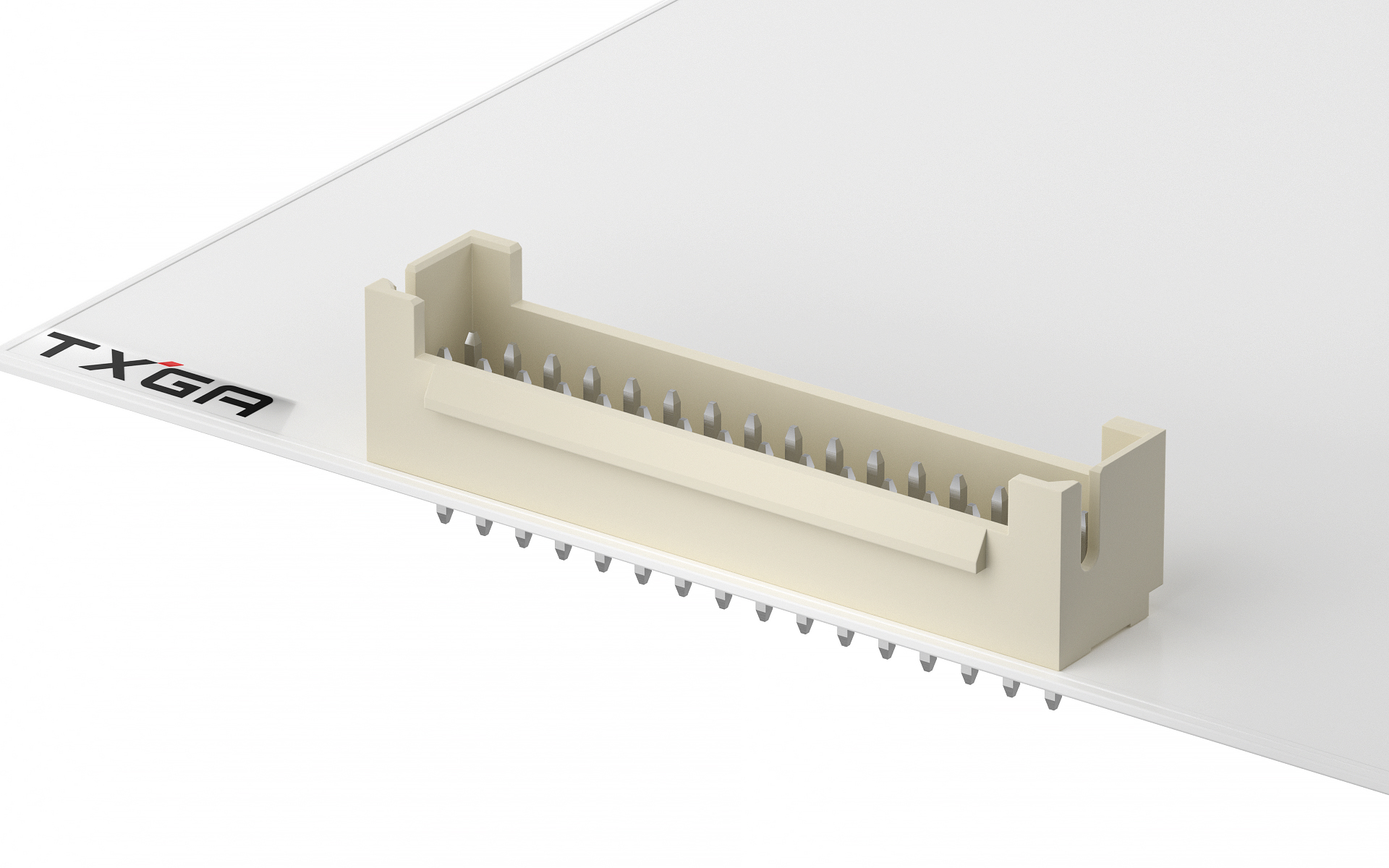

Wafer 2mm 180°Vertical 40Circuits (DIP)
FWF20012-D40S22W5B Copy
Share this product
Stock(pcs)
2026
Lead time

≦ 2026 In stock

＞ 2026 Estimated delivery date 2025-12-30

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.316880
10 $0.298859
50 $0.262817
100 $0.244796
500 $0.208754
1000 $0.162861
2500 $0.160623
5000 $0.158384
10000 $0.156145
25000 $0.153907

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2mm
Row Option
Dual row
Number of Positions
40Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
30 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA46
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF20012 Series

3D Drawings

FWF20012-D40S22W5B-REF

Product Specifications

FWF20012Productspecification.pdf
Plug
Wire to board housing 2mm 40Circuits

FHG20007-D40M2W1B

Wire to board housing 2mm 40Circuits
