板装插座 2mm ,7位 ,立贴

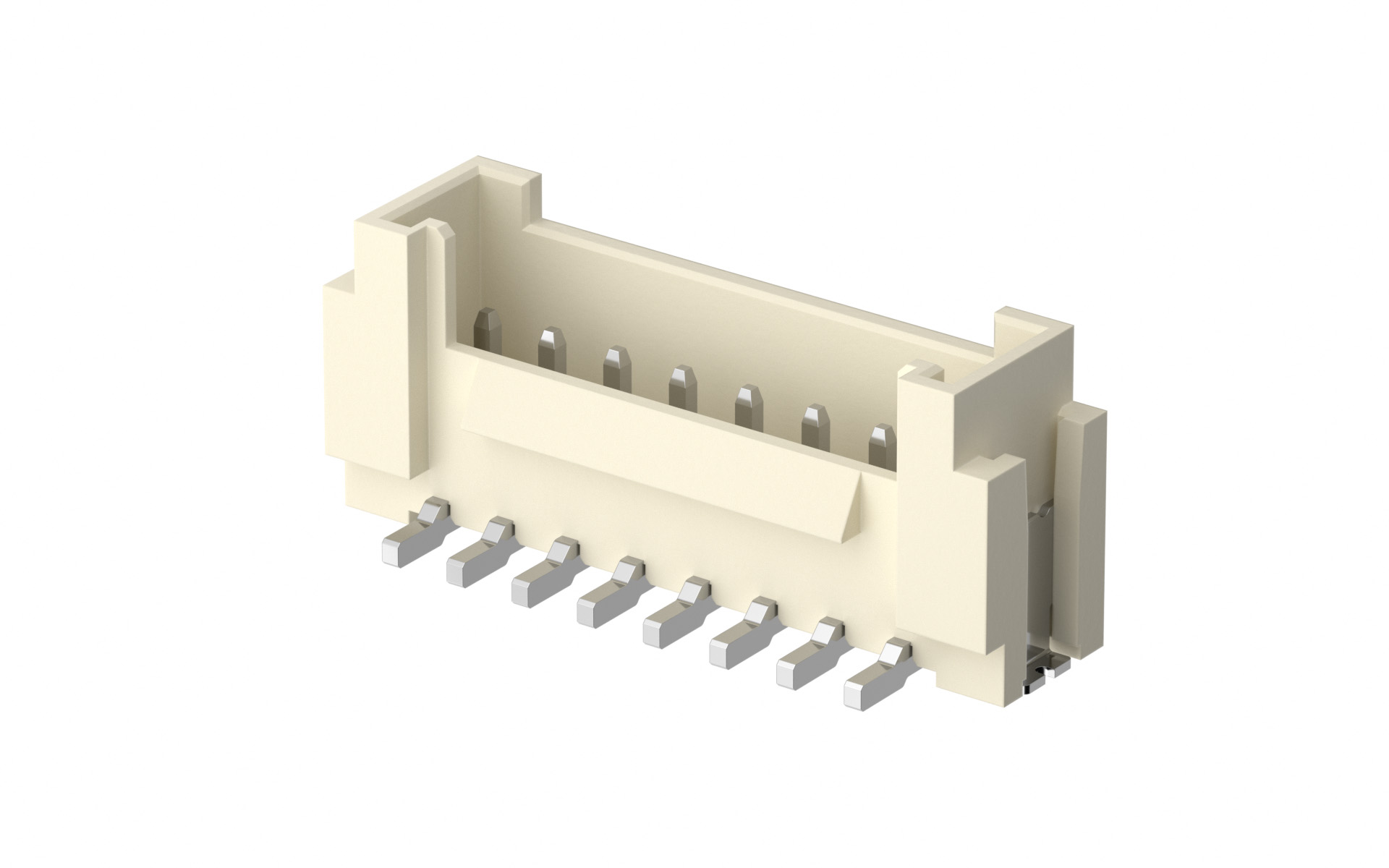

FWF20023-S07S23W5M
Wafer 2mm, 7Circuits, 180° Vertical(SMT)
FWF20023-S07S23W5M Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-12-30
MPQ
800
MOQ
800
Quantity Unit Price
1 $0.176148
10 $0.165698
50 $0.144798
100 $0.134348
500 $0.113448
1000 $0.084292
2500 $0.083138
5000 $0.081983
10000 $0.080828
25000 $0.079674

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2mm
Row Option
Single row
Number of Positions
7Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
2A
Voltage(Max)
125V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF20023_Series

Product Specifications

FWF20023Productspecification.pdf
Plug
Wire to board housing 2mm 7Circuits

FHG20005-S07M2W1B

Wire to board housing 2mm 7Circuits
