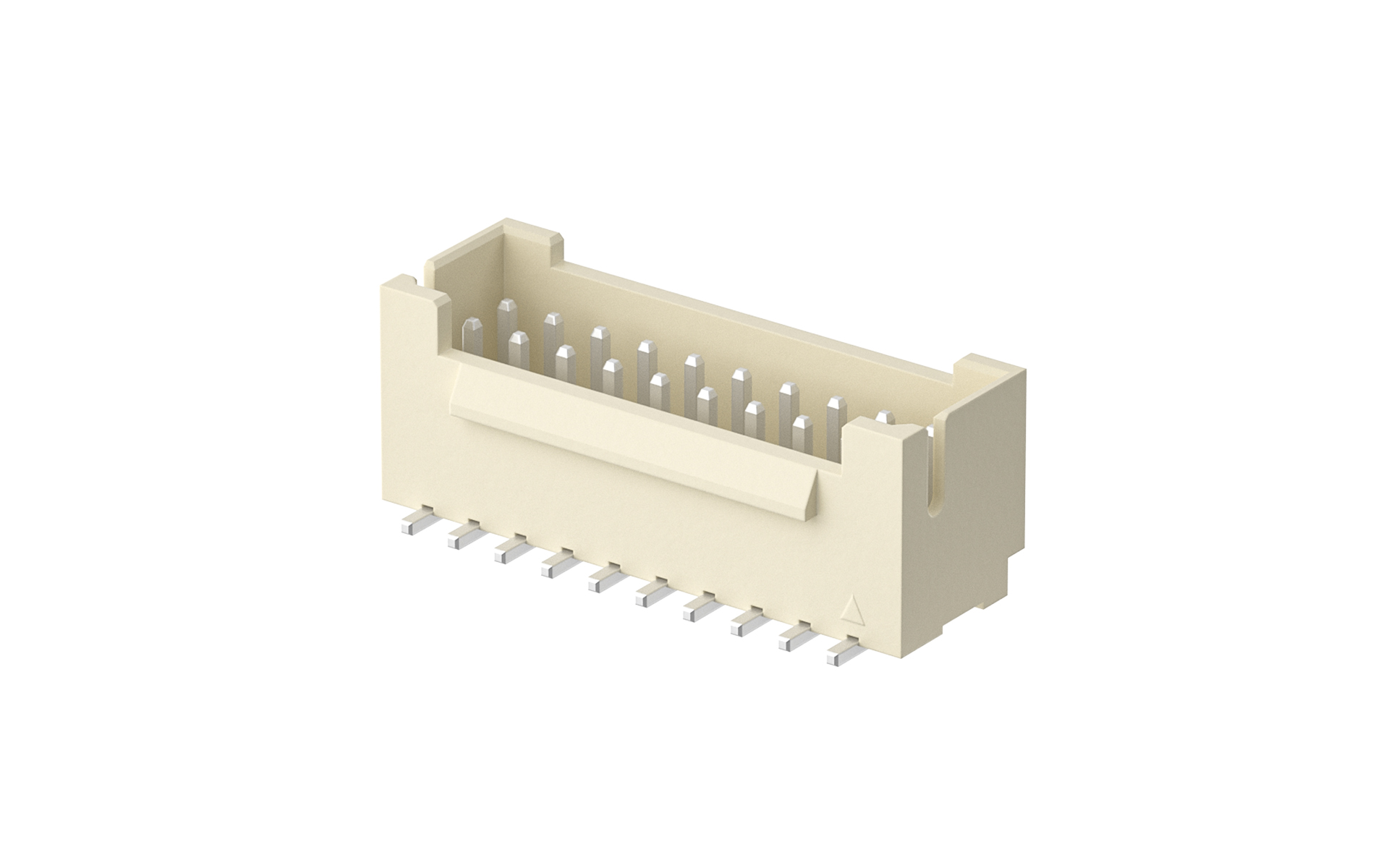

FWF20030-D18S23NAM Wafer 2mm, 18Circuits, Vertical(180°), SMT

FWF20030-D18S23NAM

Wafer 2mm, 18Circuits, Vertical(180°), SMT

Product Number：FWF20030-D18S23NAM

Production Status： Active

Wafer 2mm, 18Circuits, Vertical(180°), SMT

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{2.918554\|tradeCurrencySymbol({digits:6})}}
600+	{{0.997173\|tradeCurrencySymbol({digits:6})}}
1200+	{{0.955479\|tradeCurrencySymbol({digits:6})}}
4200+	{{0.927683\|tradeCurrencySymbol({digits:6})}}
8400+	{{0.913785\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 600

MPQ 4200

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Wire to Board/Wire Connector

Style

Socket

Gender

Female

Pitch

2mm

Row Option

Dual row

Number of Positions

18Circuits

Orientation

Vertical(180°)

Colour

Natural

Current(Max)

Voltage(Max)

250V

Contact Resistance

30 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

1000V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

Mounting Style

SMT

Material-Contact

Brass

Plating

Matte tin plated

Material-Resin

PA46

Flammability Rating

UL94 V-0

Packaging

Reel

Product Drawings

FWF20030.pdf

3D Drawings

FWF20030-D18S23NAM_REF.stp

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
