FWF25001-S05S24W5B Wafer 2.5mm 180°Vertical 5Circuits (DIP)

FWF25001-S05S24W5B

Wafer 2.5mm 180°Vertical 5Circuits (DIP)

Product Number：FWF25001-S05S24W5B

Production Status： Discontinued

Wafer 2.5mm 180°Vertical 5Circuits (DIP)

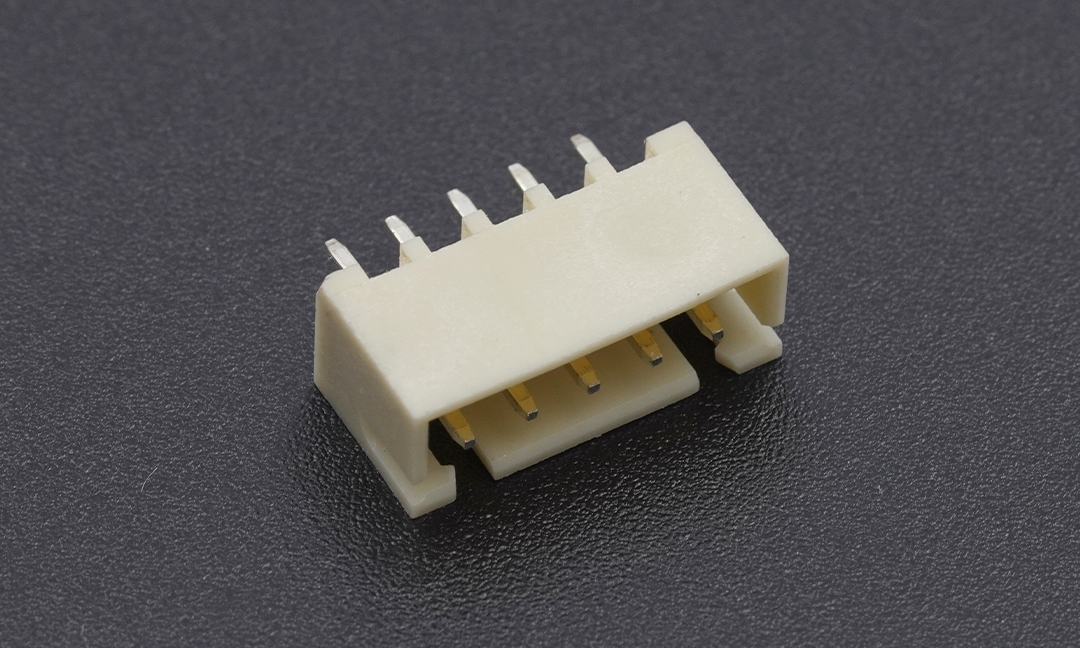

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{0.567771\|tradeCurrencySymbol({digits:6})}}
10+	{{0.531349\|tradeCurrencySymbol({digits:6})}}
50+	{{0.458505\|tradeCurrencySymbol({digits:6})}}
100+	{{0.422083\|tradeCurrencySymbol({digits:6})}}
500+	{{0.349239\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 1000

MPQ 10000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Wire to Board/Wire Connector

Style

Socket

Gender

Female

Pitch

2.5mm

Row Option

Single row

Number of Positions

5Circuits

Orientation

Vertical(180°)

Colour

Natural

Current(Max)

Voltage(Max)

250V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

1000V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

Mounting Style

Through hole

Material-Contact

Brass

Plating

Bright tin plated

Material-Resin

PA6T

Flammability Rating

UL94 V-0

Packaging

PE Bag

Product Drawings

FWF25001_series.pdf

Product Specifications

FWF25001Productspecification.pdf English Version

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
