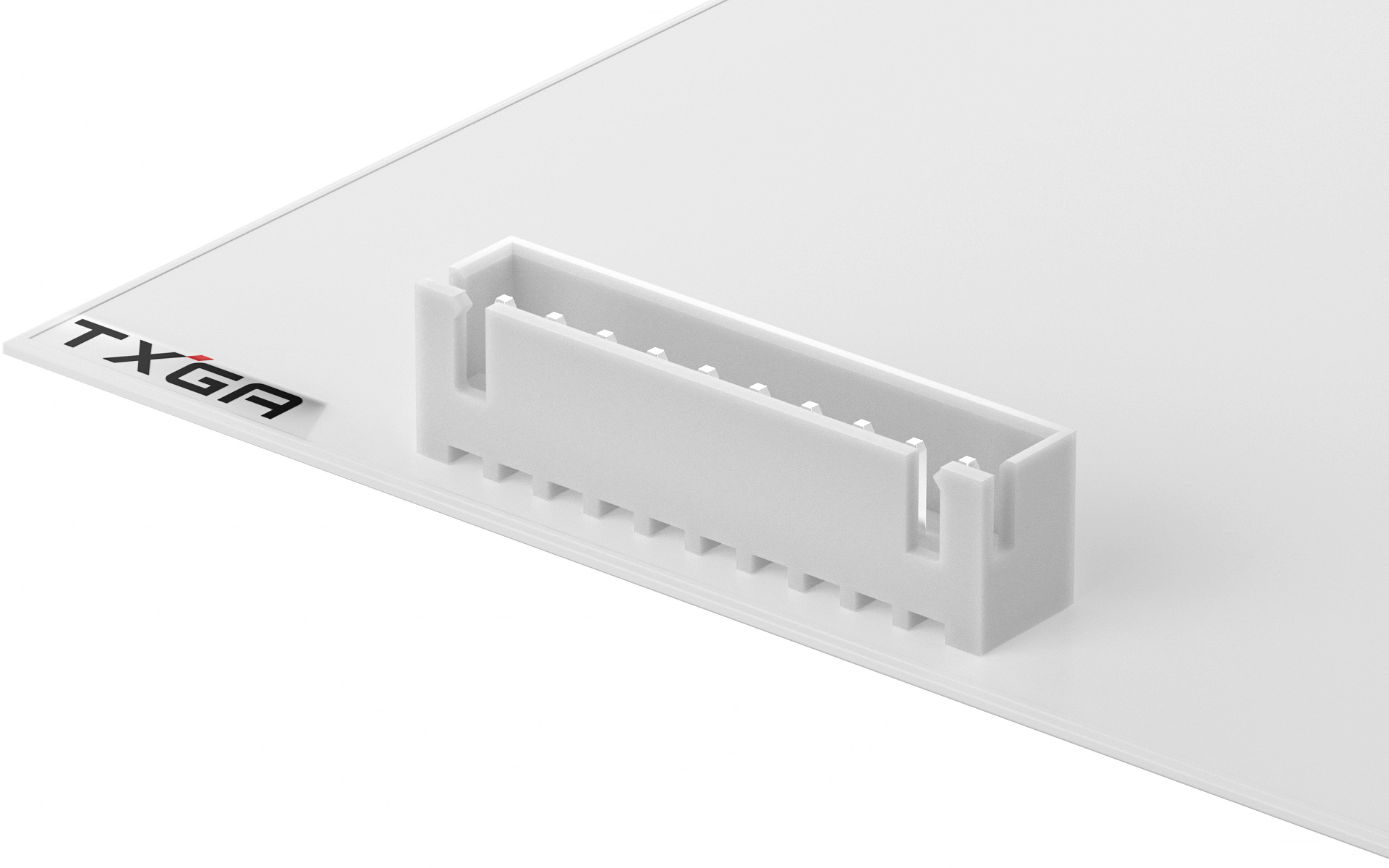

板装插座 2.5mm 插件 180° 15位
FWF25001-S15S22W1B
Wafer 2.5mm 180°Vertical 15Circuits (DIP)
FWF25001-S15S22W1B Copy
Share this product
Stock(pcs)
200
Lead time

≦ 200 In stock

＞ 200 Estimated delivery date 2025-10-14

MPQ
500
MOQ
1000
Quantity Unit Price
1 $0.115714
10 $0.081798
50 $0.065837
100 $0.059852
500 $0.048879
1000 $0.029726
5000 $0.028928
10000 $0.028529

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2.5mm
Row Option
Single row
Number of Positions
15Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF25001_series

Product Specifications

FWF25001Productspecification.pdf
Plug
Wire to board housing 2.5mm 15Circuits

FHG25001-S15M2W1B

Wire to board housing 2.5mm 15Circuits
