板装插座 2.5mm 插件 180° 16位

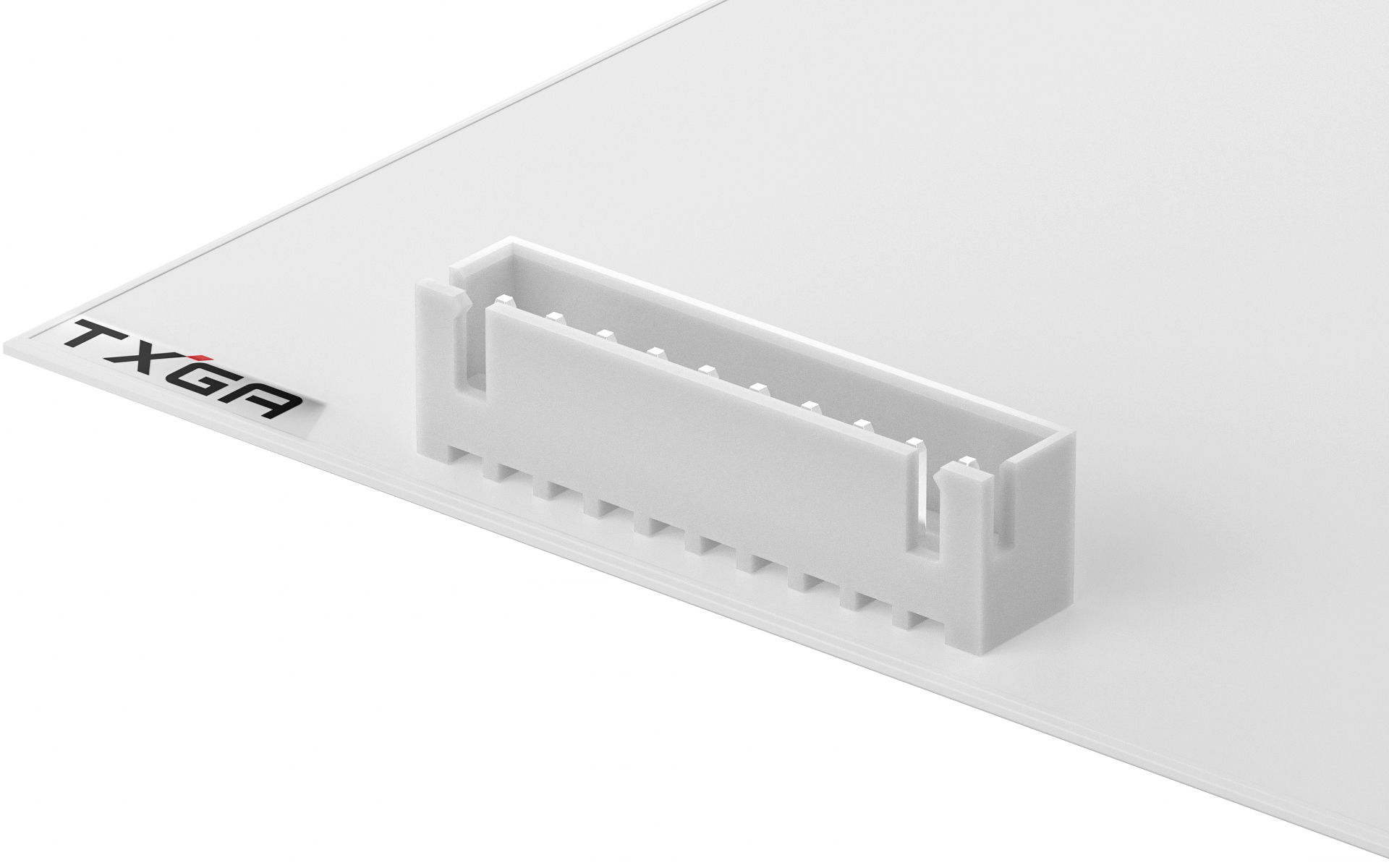

FWF25001-S16S22W1B
Wafer 2.5mm 180°Vertical 16Circuits (DIP)
FWF25001-S16S22W1B Copy
Share this product
Stock(pcs)
325
Lead time

≦ 325 In stock

＞ 325 Estimated delivery date 2025-10-14

MPQ
500
MOQ
1000
Quantity Unit Price
1 $0.114954
10 $0.081261
50 $0.065405
100 $0.059459
500 $0.048558
1000 $0.029531
5000 $0.028739
10000 $0.028342

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2.5mm
Row Option
Single row
Number of Positions
16Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF25001_series

Product Specifications

FWF25001Productspecification.pdf
Plug
Wire to board housing 2.5mm 16Circuits

FHG25001-S16M2W1B

Wire to board housing 2.5mm 16Circuits
