板装插座 2.5mm 插件 90° 5位
FWF25002-S05B22W1B

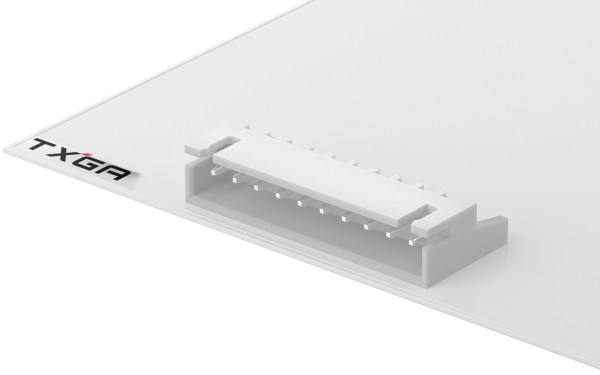

Wafer 2.5mm 90°Angle 5Circuits(DIP)
FWF25002-S05B22W1B Copy
Share this product
Stock(pcs)
234
Lead time

≦ 234 In stock

＞ 234 Estimated delivery date 2025-10-14

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.038213
10 $0.035627
50 $0.030453
100 $0.027866
500 $0.022692
1000 $0.013533
2500 $0.013348
5000 $0.013164
10000 $0.012980
25000 $0.012796

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2.5mm
Row Option
Single row
Number of Positions
5Circuits
Orientation
Right angle(90°)
Colour
White
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF25002 Series

Product Specifications

FWF25002Productspecification.pdf
Plug
Wire to board housing 2.5mm 5Circuits

FHG25001-S05M2W1B

Wire to board housing 2.5mm 5Circuits
