板装插座 2.5mm 插件 90° 7位

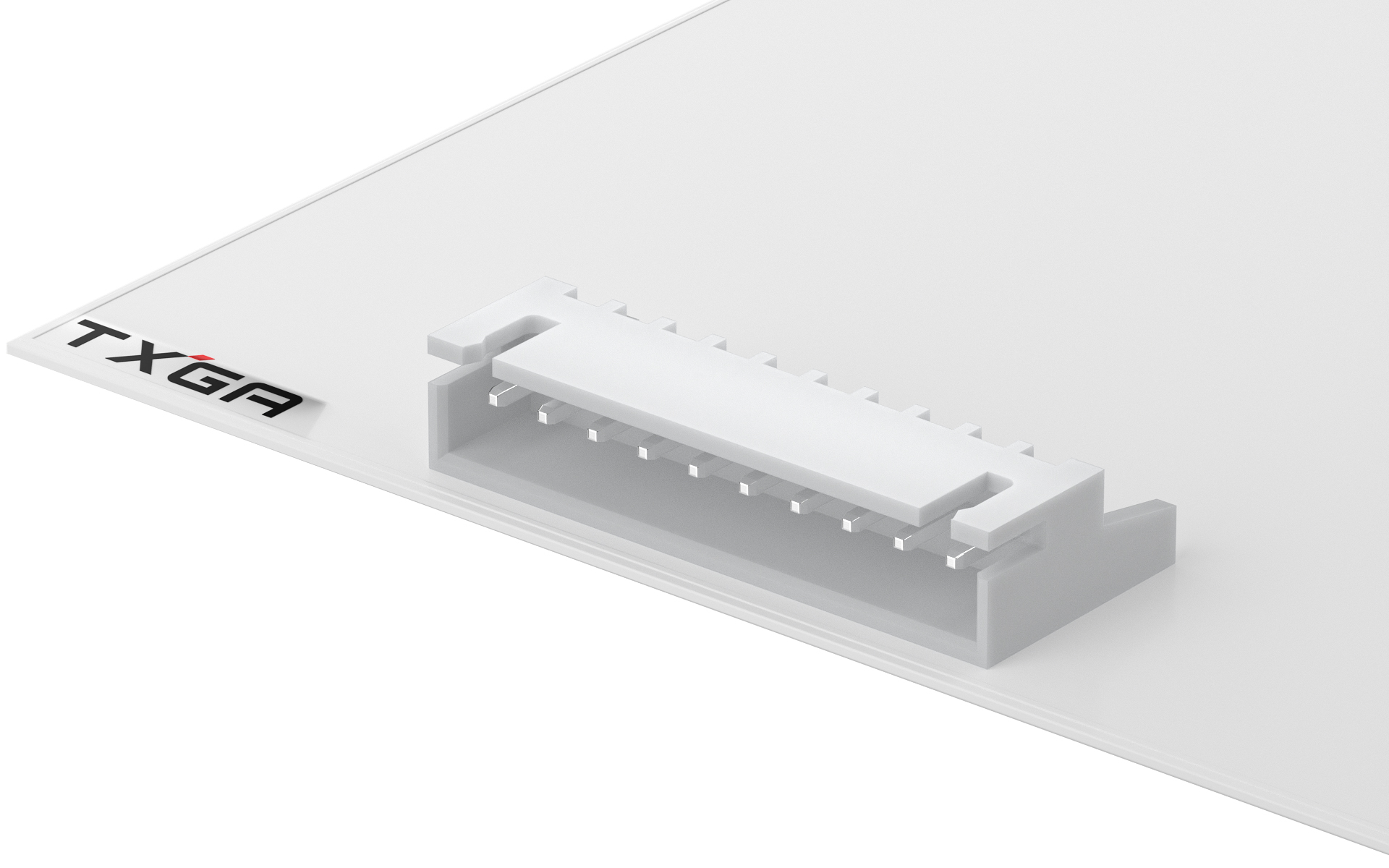

FWF25002-S07B22W1B
Wafer 2.5mm 90°Angle 7Circuits(DIP)
FWF25002-S07B22W1B Copy
Share this product
Stock(pcs)
543
Lead time

≦ 543 In stock

＞ 543 Estimated delivery date 2025-10-14

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.052425
10 $0.048876
50 $0.041778
100 $0.038229
500 $0.031132
1000 $0.018565
2500 $0.018313
5000 $0.018060
10000 $0.017808
25000 $0.017555

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2.5mm
Row Option
Single row
Number of Positions
7Circuits
Orientation
Right angle(90°)
Colour
White
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF25002 Series

Product Specifications

FWF25002Productspecification.pdf
Plug
Wire to board housing 2.5mm 7Circuits

FHG25001-S07M2W1B

Wire to board housing 2.5mm 7Circuits
