板装插座 2.5mm 插件 90° 12位
FWF25002-S12B22W1B

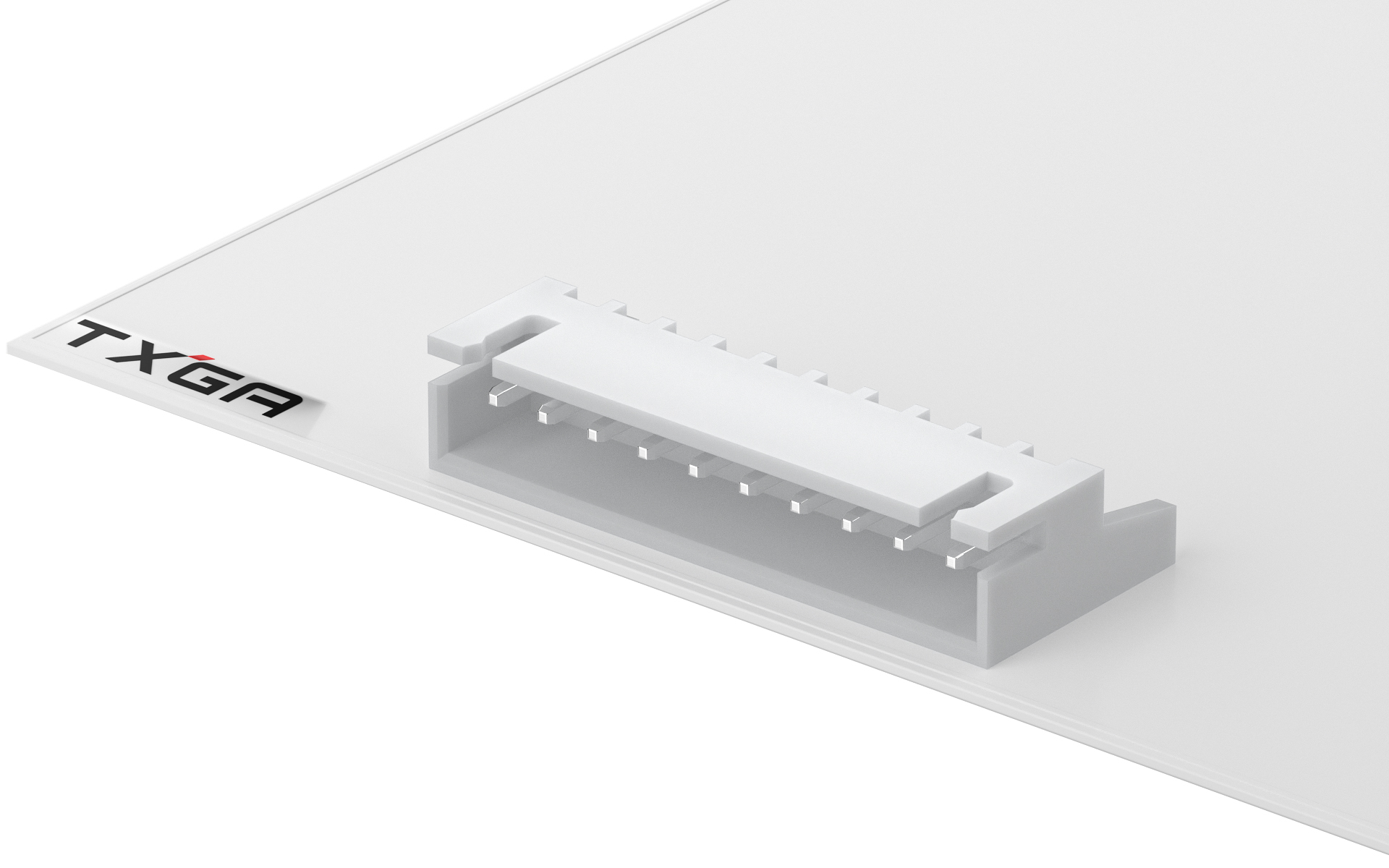

Wafer 2.5mm 90°Angle 12Circuits (DIP)
FWF25002-S12B22W1B Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-10-14
MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.076466
10 $0.071560
50 $0.061750
100 $0.056845
500 $0.047035
1000 $0.031109
2500 $0.030684
5000 $0.030259
10000 $0.029834
25000 $0.029410

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2.5mm
Row Option
Single row
Number of Positions
12Circuits
Orientation
Right angle(90°)
Colour
White
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF25002 Series

Product Specifications

FWF25002Productspecification.pdf
Plug
Wire to board housing 2.5mm 12Circuits

FHG25001-S12M2W1B

Wire to board housing 2.5mm 12Circuits
