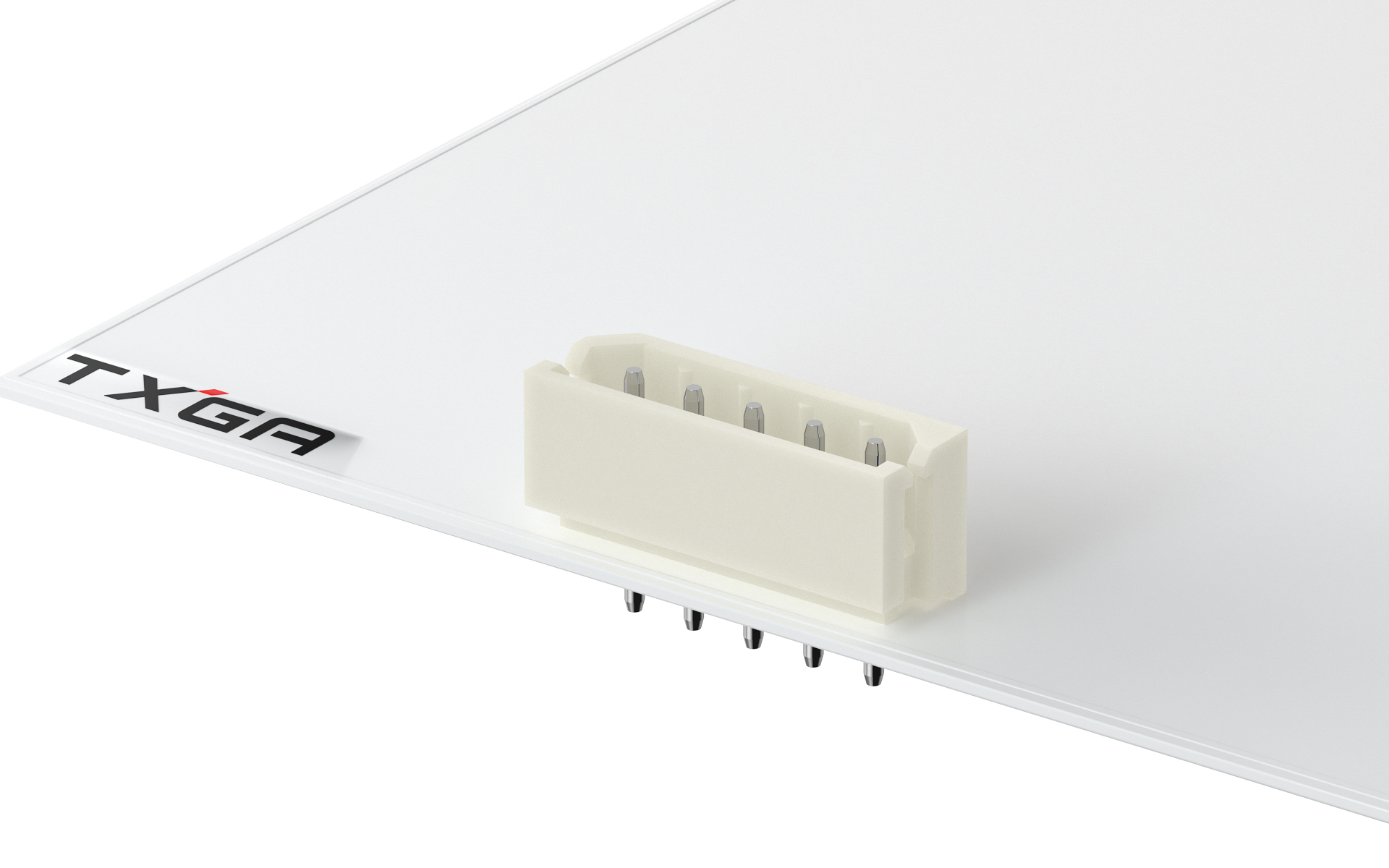

板装插座 2.5mm 插件 180° 3位(圆针)
FWF25003-S03S22W5B
Wafer 2.5mm 180°Vertical 3Circuits (DIP)
FWF25003-S03S22W5B Copy
Share this product
Stock(pcs)
38
Lead time

≦ 38 In stock

＞ 38 Estimated delivery date 2025-12-29

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.030271
10 $0.028222
50 $0.024124
100 $0.022075
500 $0.017976
1000 $0.010720
2500 $0.010574
5000 $0.010428
10000 $0.010283
25000 $0.010137

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2.5mm
Row Option
Single row
Number of Positions
3Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF25003 Series
Plug
Wire to board housing 2.5mm 3Circuits

FHG25002-S03M2W1B

Wire to board housing 2.5mm 3Circuits
