板装插座 2.5mm 插件 180° 4位(带锁扣) 红色
FWF25012-S04S22R1B

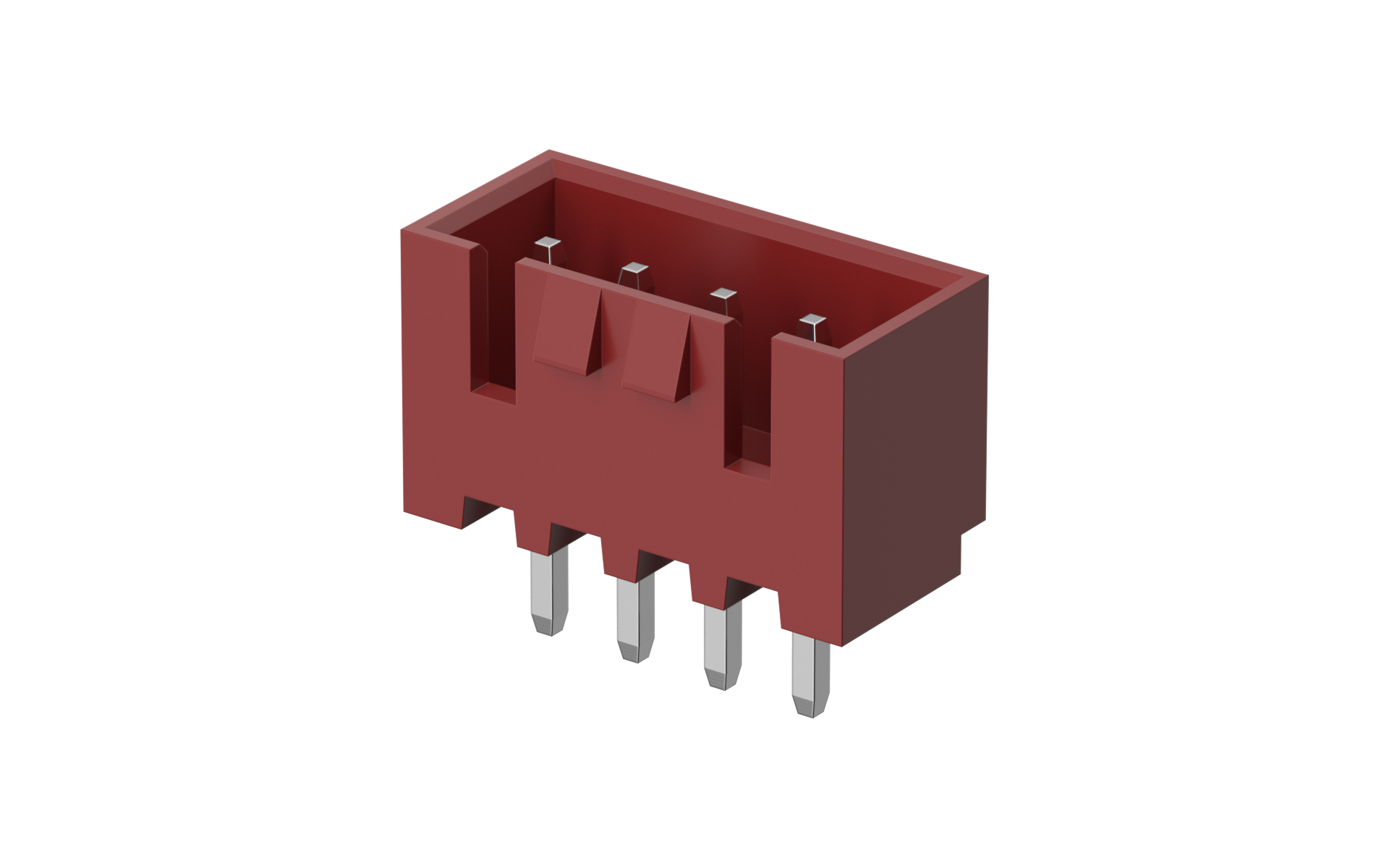

Wafer 2.5mm 180°Vertical 4Circuits (DIP) Red
FWF25012-S04S22R1B Copy
Share this product
Stock(pcs)
25619
Lead time

≦ 25619 In stock

＞ 25619 Estimated delivery date 2025-10-21

MPQ
1000
MOQ
30000
Quantity Unit Price
1 $0.118051
10 $0.065239
50 $0.038315
100 $0.033655
500 $0.029513
1000 $0.027856
5000 $0.027442
30000 $0.023300

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2.5mm
Row Option
Single row
Number of Positions
4Circuits
Orientation
Vertical(180°)
Colour
Red
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF25012_Series

Product Specifications

FWF25012Productspecification.pdf
Plug
Wire to board housing 2.5mm 4Circuits

FHG25006-S04M2R1B

Wire to board housing 2.5mm 4Circuits

 Wire to board housing 2.5mm 4Circuits

FHG25006-S04M2W1B

Wire to board housing 2.5mm 4Circuits
