板装插座 2.5mm 插件 180° 3位
FWF25018-S03S22W1B

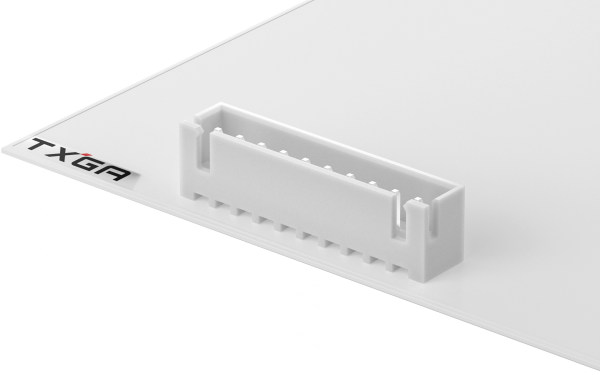

Wafer 2.5mm 180°Vertical 3Circuits (DIP)
FWF25018-S03S22W1B Copy
Share this product
Stock(pcs)
503
Lead time

≦ 503 In stock

＞ 503 Estimated delivery date 2025-10-14

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.017550
10 $0.016362
50 $0.013986
100 $0.012798
500 $0.010422
1000 $0.006215
2500 $0.006131
5000 $0.006046
10000 $0.005961
25000 $0.005877

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2.5mm
Row Option
Single row
Number of Positions
3Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF25018 Series

3D Drawings

FWF25018-S03S22W1B_REF

Product Specifications

FWF25018Productspecification.pdf
Plug
Wire to board housing 2.5mm 3Circuits

FHG25001-S03M2W1B

Wire to board housing 2.5mm 3Circuits
