板装插座 2.5mm 卧贴 7位(9T)

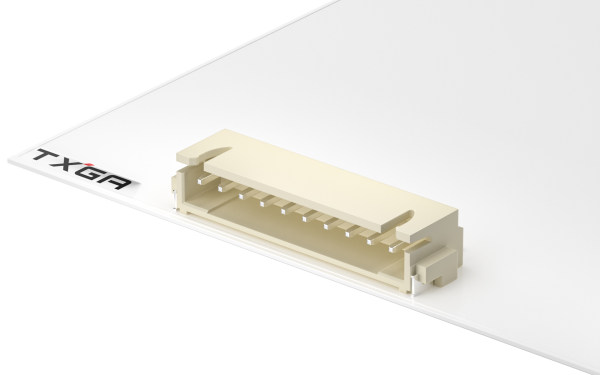

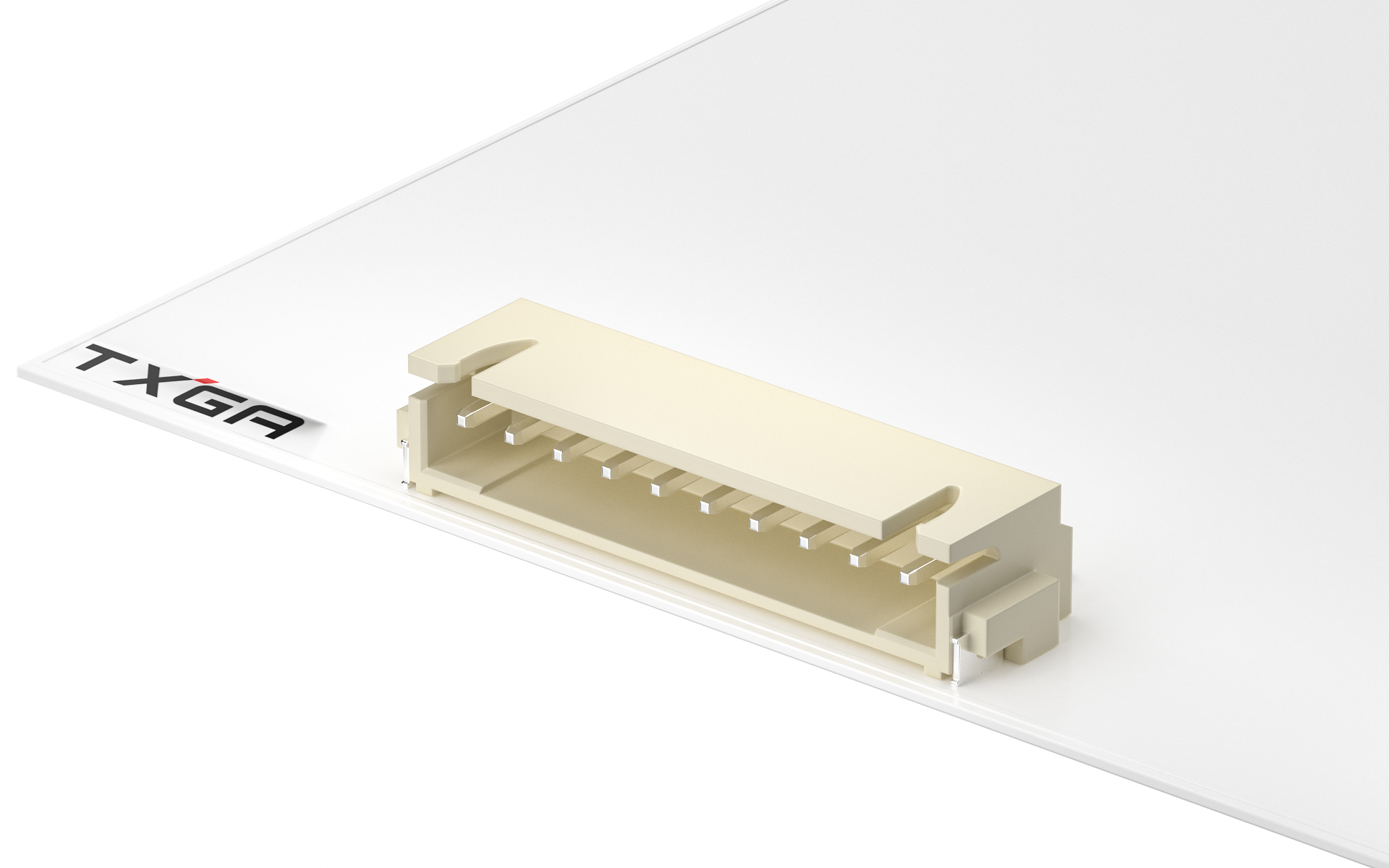

FWF25021-S07B24W5M
Wafer 2.5mm 90°Angle 7Circuits (SMT)
FWF25021-S07B24W5M Copy
Share this product
Stock(pcs)
715
Lead time

≦ 715 In stock

＞ 715 Estimated delivery date 2025-10-14

MPQ
900
MOQ
900
Quantity Unit Price
1 $0.201343
10 $0.189398
50 $0.165509
100 $0.153564
500 $0.129675
1000 $0.096349
2500 $0.095029
5000 $0.093709
10000 $0.092389
25000 $0.091070

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2.5mm
Row Option
Single row
Number of Positions
7Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF25021 series
Plug
Wire to board housing 2.5mm 7Circuits

FHG25001-S07M2W1B

Wire to board housing 2.5mm 7Circuits
