板装插座 2.5mm 卧贴 10位(9T)
FWF25021-S10B24W5M

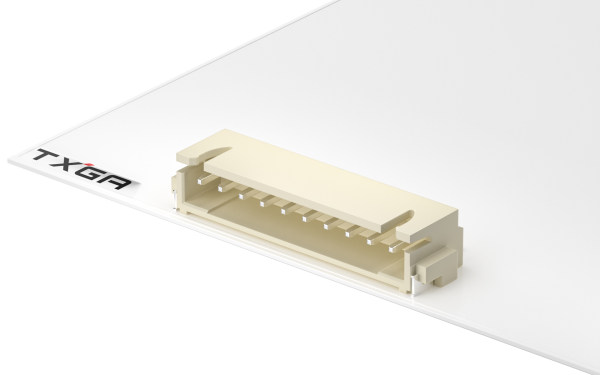

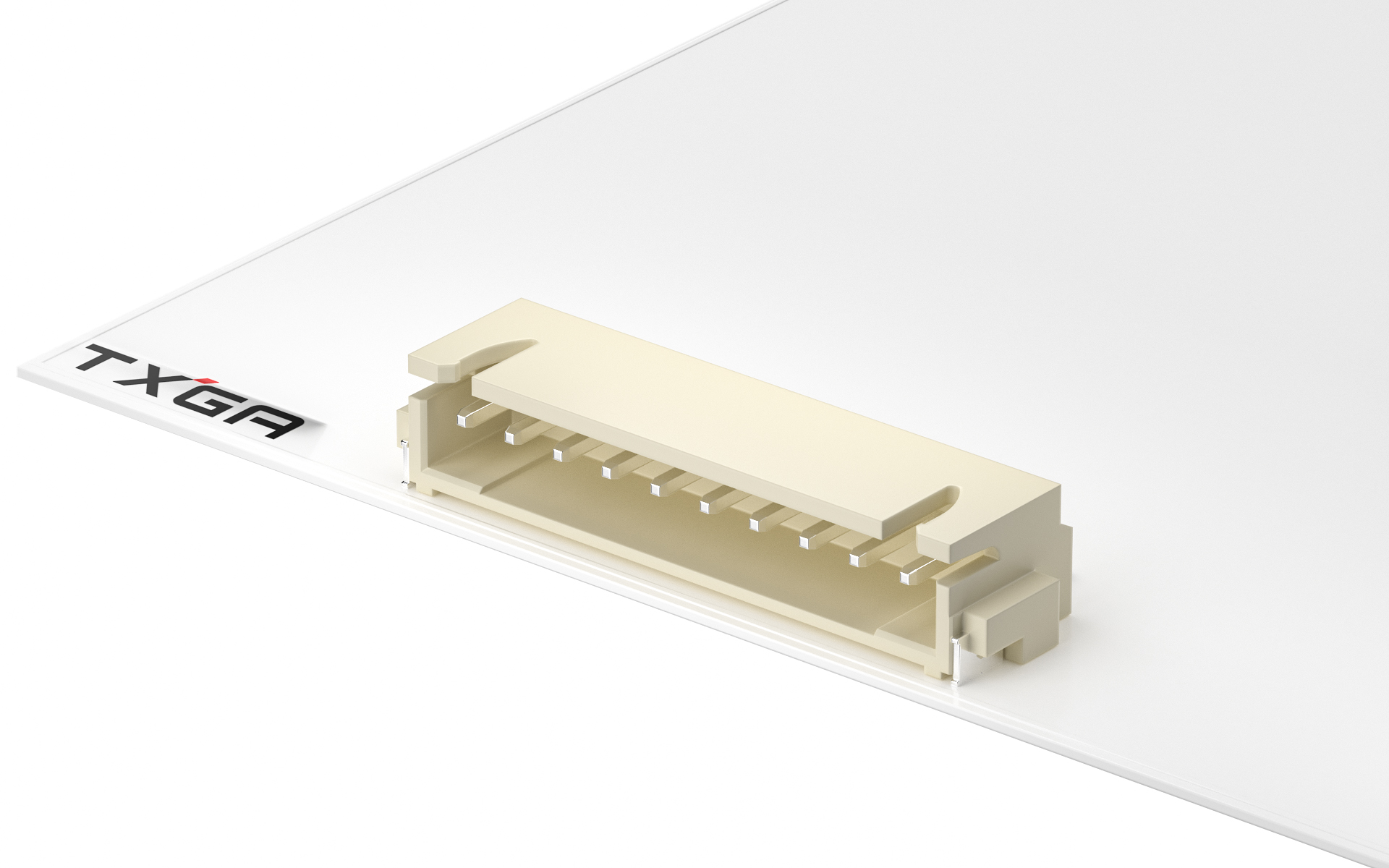

Wafer 2.5mm 90°Angle 10Circuits (SMT)
FWF25021-S10B24W5M Copy
Share this product
Stock(pcs)
510
Lead time

≦ 510 In stock

＞ 510 Estimated delivery date 2025-10-14

MPQ
900
MOQ
900
Quantity Unit Price
1 $0.248323
10 $0.233591
50 $0.204128
100 $0.189396
500 $0.159933
1000 $0.118830
2500 $0.117203
5000 $0.115575
10000 $0.113947
25000 $0.112319

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2.5mm
Row Option
Single row
Number of Positions
10Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF25021 series

3D Drawings

FWF25021-S10B24W5M_REF
Plug
Wire to board housing 2.5mm 10Circuits

FHG25001-S10M2W1B

Wire to board housing 2.5mm 10Circuits
