板装插座 3mm 插件 180° 20位

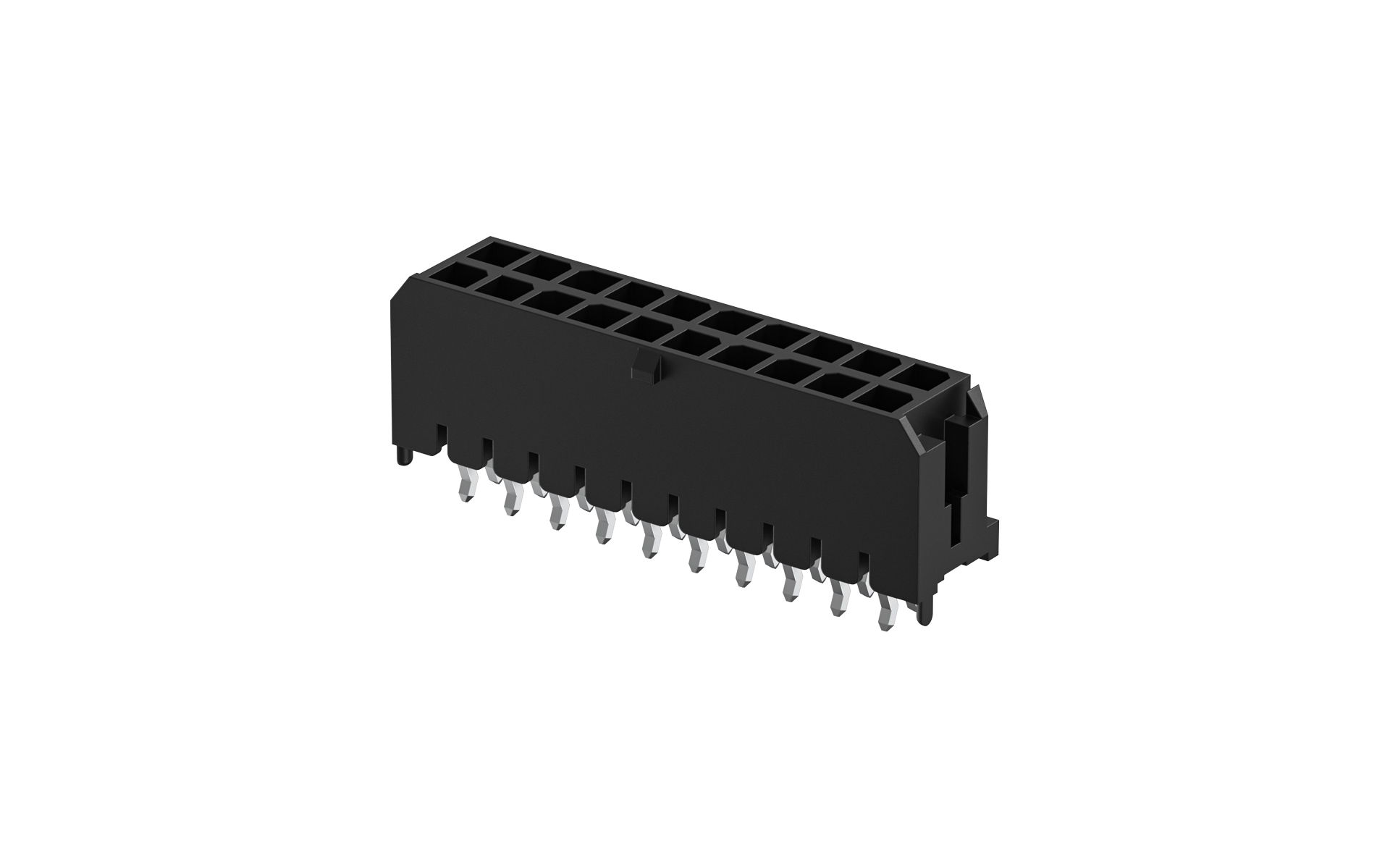

FWF30001-D20S22K6K
Wafer 3mm 180°Vertical 20Circuits (DIP)
FWF30001-D20S22K6K Copy
Share this product
Stock(pcs)
98
Lead time

≦ 98 In stock

＞ 98 Estimated delivery date 2026-01-04

MPQ
500
MOQ
1000
Quantity Unit Price
1 $0.419443
10 $0.395589
50 $0.347881
100 $0.324027
500 $0.276320
1000 $0.215574
2500 $0.212610
5000 $0.209647
10000 $0.206684
25000 $0.203721

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3mm
Row Option
Dual row
Number of Positions
20Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
5A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray

Product Drawings

FWF30001Series.pdf

Product Specifications

FWF30001Productspecification.pdf
Plug
Wire to board housing 3mm 20Circuits

FHG30001-D20M2K6B

Wire to board housing 3mm 20Circuits
