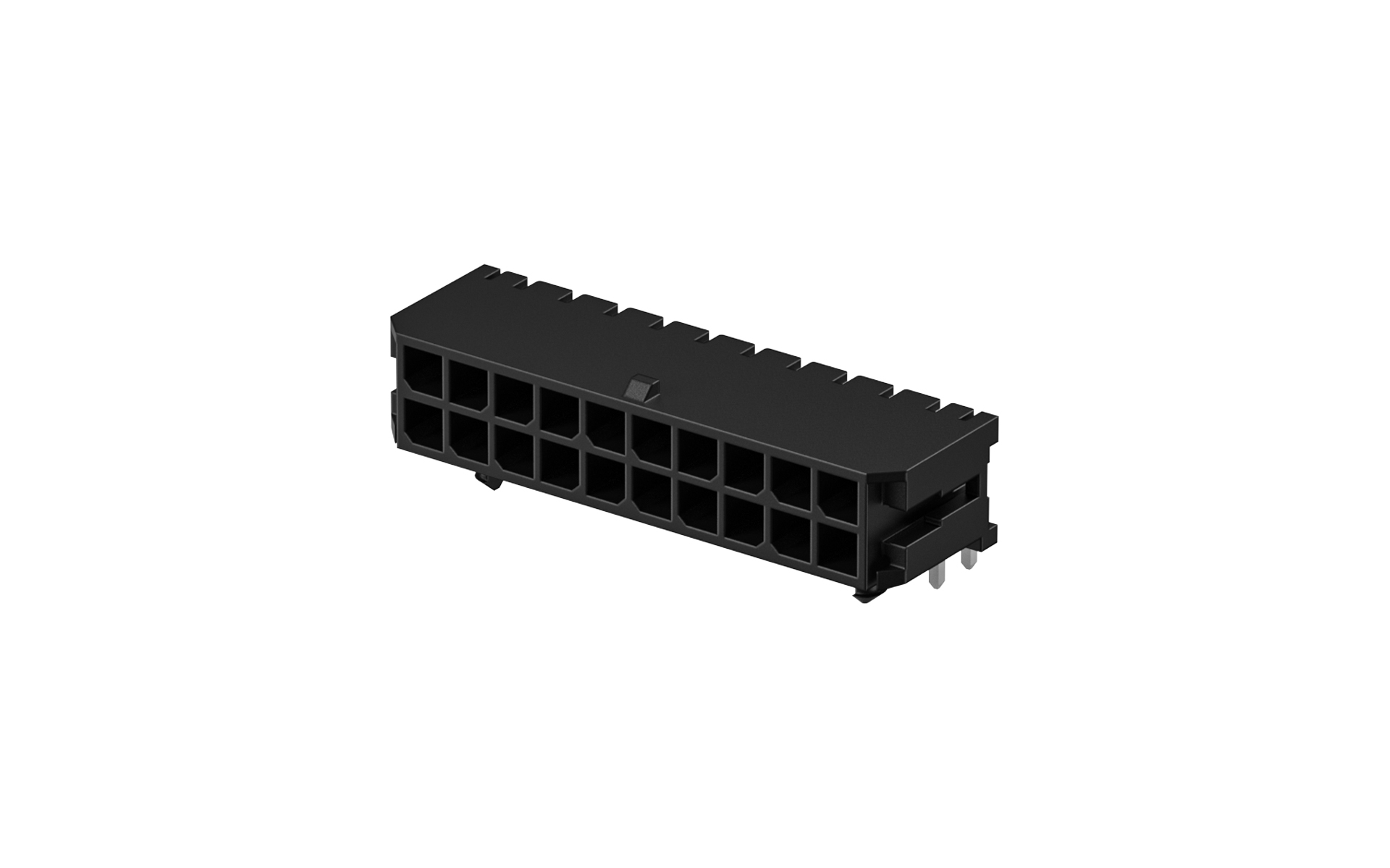

板装插座 3mm 插件 90° 10位(带定位柱)
FWF30002-D10B22K6B
Wafer 3mm 90°Angle 10Circuits (DIP)
FWF30002-D10B22K6B Copy
Share this product
Stock(pcs)
9715
Lead time

≦ 9715 In stock

＞ 9715 Estimated delivery date 2025-08-29

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.232699
10 $0.218894
50 $0.191285
100 $0.177480
500 $0.149870
1000 $0.111354
2500 $0.109828
5000 $0.108303
10000 $0.106778
25000 $0.105252
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3mm
Row Option
Dual row
Number of Positions
10Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
5A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF30002series

Product Specifications

FWF30002Productspecification.pdf
Plug
Wire to board housing 3mm 10Circuits

FHG30001-D10M2K6B

Wire to board housing 3mm 10Circuits
