板装插座 3mm 插件 90° 18位(带定位柱)

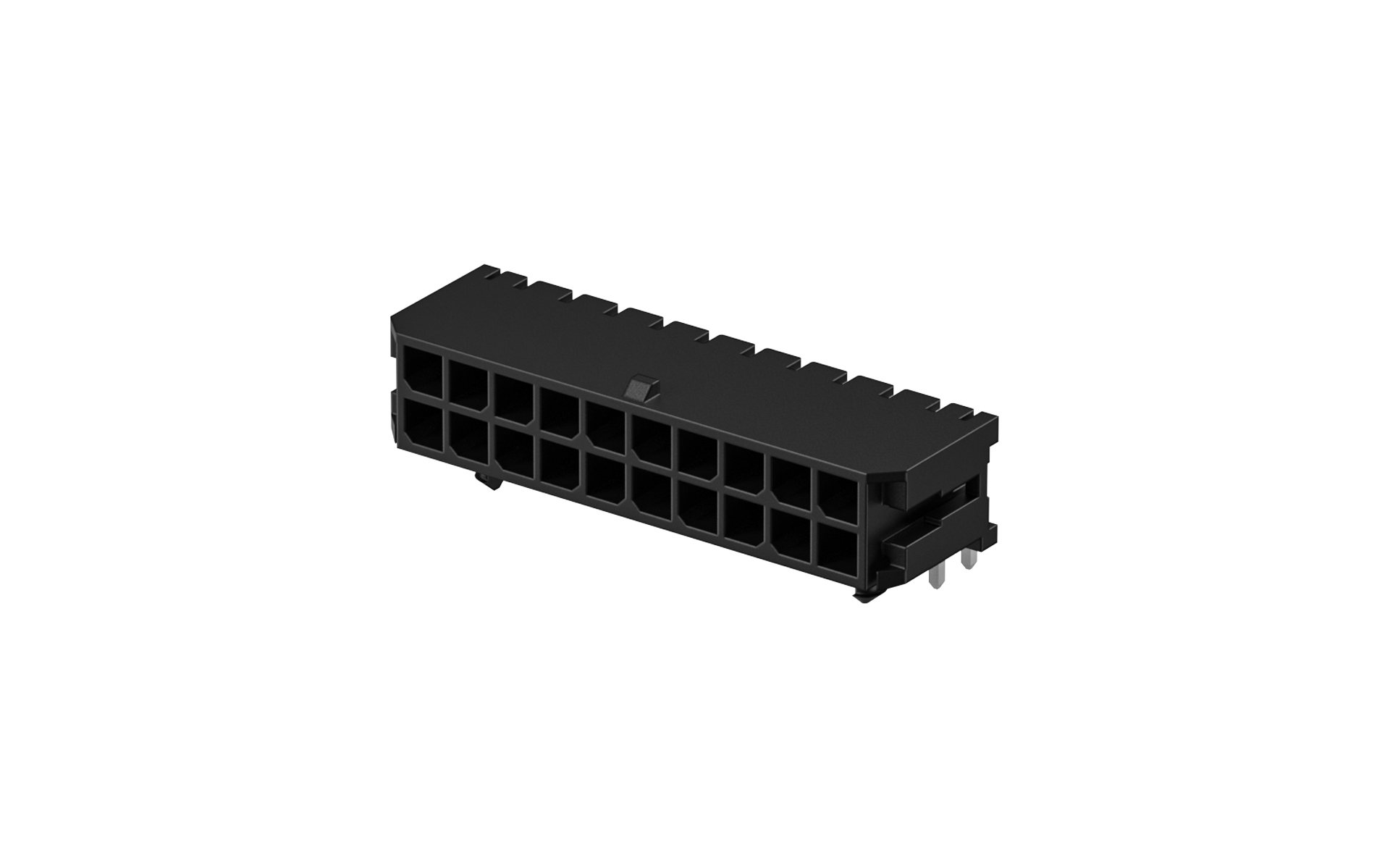

FWF30002-D18B22K6B
Wafer 3mm 90°Angle 18Circuits (DIP)
FWF30002-D18B22K6B Copy
Share this product
Stock(pcs)
760
Lead time

≦ 760 In stock

＞ 760 Estimated delivery date 2025-12-30

MPQ
500
MOQ
1000
Quantity Unit Price
1 $0.315380
10 $0.297444
50 $0.261573
100 $0.243637
500 $0.207765
1000 $0.162091
2500 $0.159862
5000 $0.157634
10000 $0.155406
25000 $0.153178

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3mm
Row Option
Dual row
Number of Positions
18Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
5A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF30002series

Product Specifications

FWF30002Productspecification.pdf
Plug
Wire to board housing 3mm 18Circuits

FHG30001-D18M2K6B

Wire to board housing 3mm 18Circuits
