板装插座 3mm 插件 90° 20位(带定位柱)
FWF30002-D20B22K6B

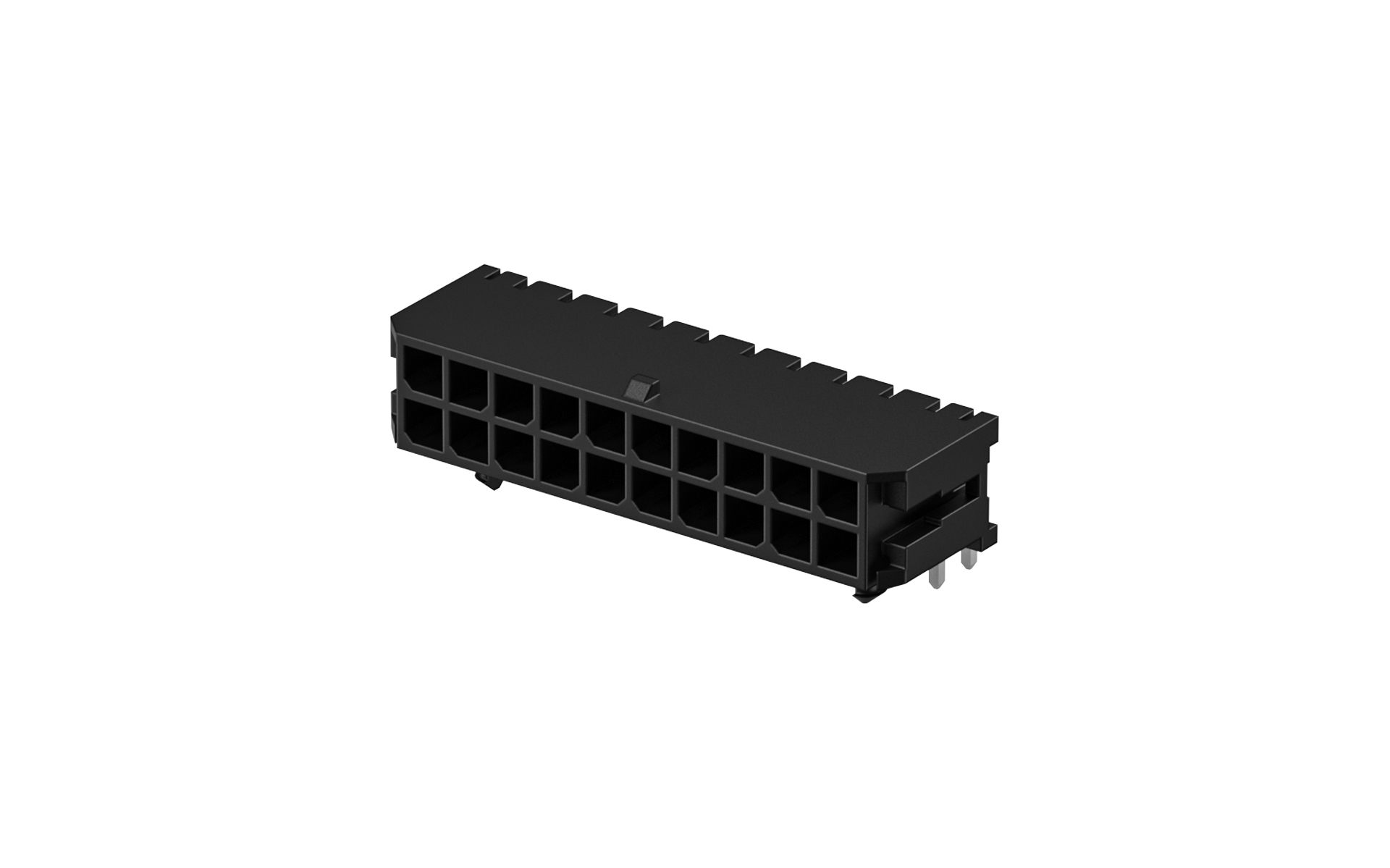

Wafer 3mm 90°Angle 20Circuits (DIP)
FWF30002-D20B22K6B Copy
Share this product
Stock(pcs)
936
Lead time

≦ 936 In stock

＞ 936 Estimated delivery date 2025-12-30

MPQ
500
MOQ
1000
Quantity Unit Price
1 $0.340728
10 $0.321351
50 $0.282596
100 $0.263219
500 $0.224464
1000 $0.175118
2500 $0.172711
5000 $0.170304
10000 $0.167897
25000 $0.165490

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3mm
Row Option
Dual row
Number of Positions
20Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
5A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF30002series

Product Specifications

FWF30002Productspecification.pdf
Plug
Wire to board housing 3mm 20Circuits

FHG30001-D20M2K6B

Wire to board housing 3mm 20Circuits
