板装插座 3mm 插件 90° 22位(带定位柱)

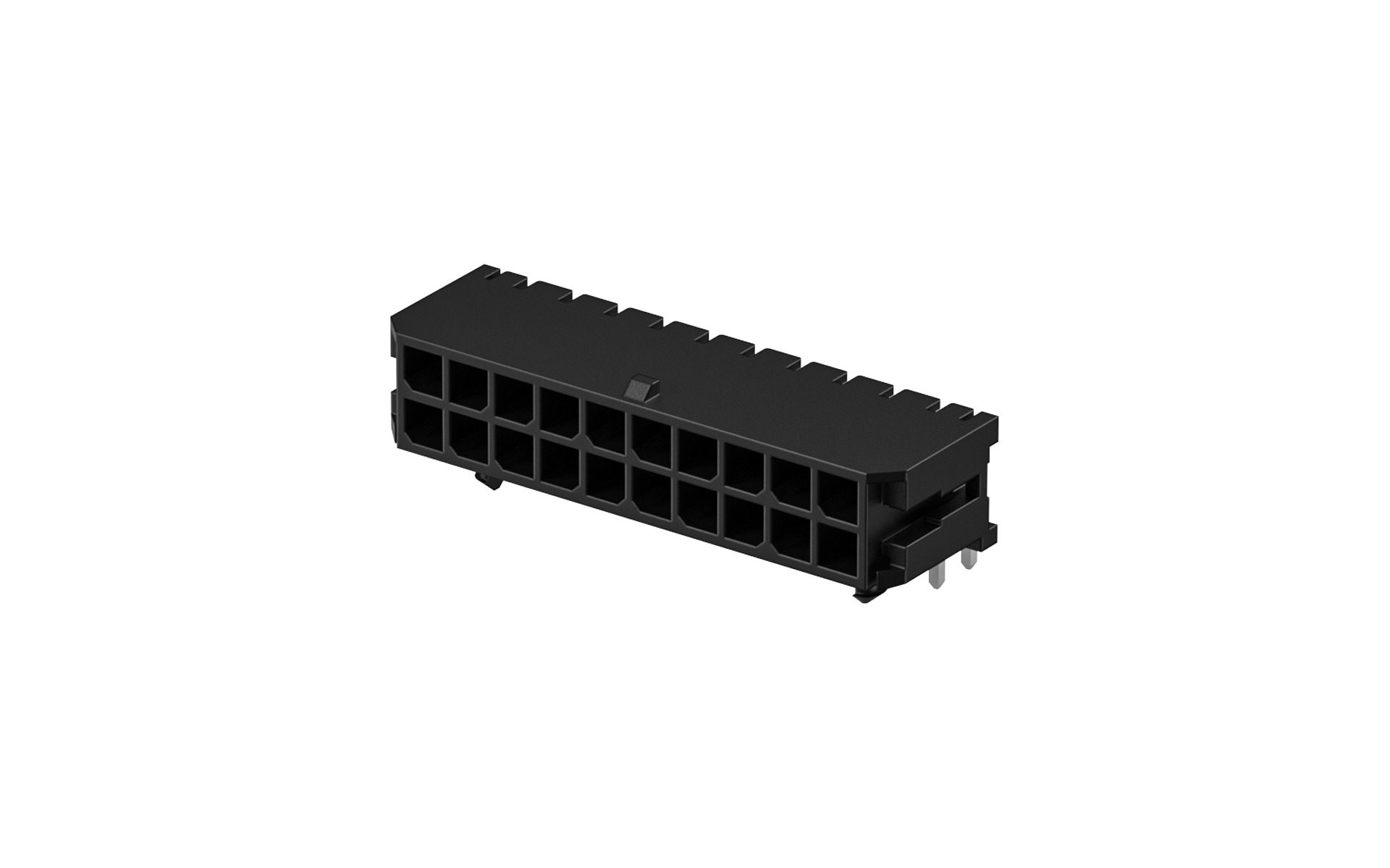

FWF30002-D22B22K6B
Wafer 3mm 90°Angle 22Circuits (DIP)
FWF30002-D22B22K6B Copy
Share this product
Stock(pcs)
41
Lead time

≦ 41 In stock

＞ 41 Estimated delivery date 2025-12-30

MPQ
500
MOQ
1000
Quantity Unit Price
1 $0.365246
10 $0.344475
50 $0.302931
100 $0.282159
500 $0.240616
1000 $0.187719
2500 $0.185139
5000 $0.182559
10000 $0.179978
25000 $0.177398

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3mm
Row Option
Dual row
Number of Positions
22Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
5A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF30002series

Product Specifications

FWF30002Productspecification.pdf
Plug
Wire to board housing 3mm 22Circuits

FHG30001-D22M2K6B

Wire to board housing 3mm 22Circuits
