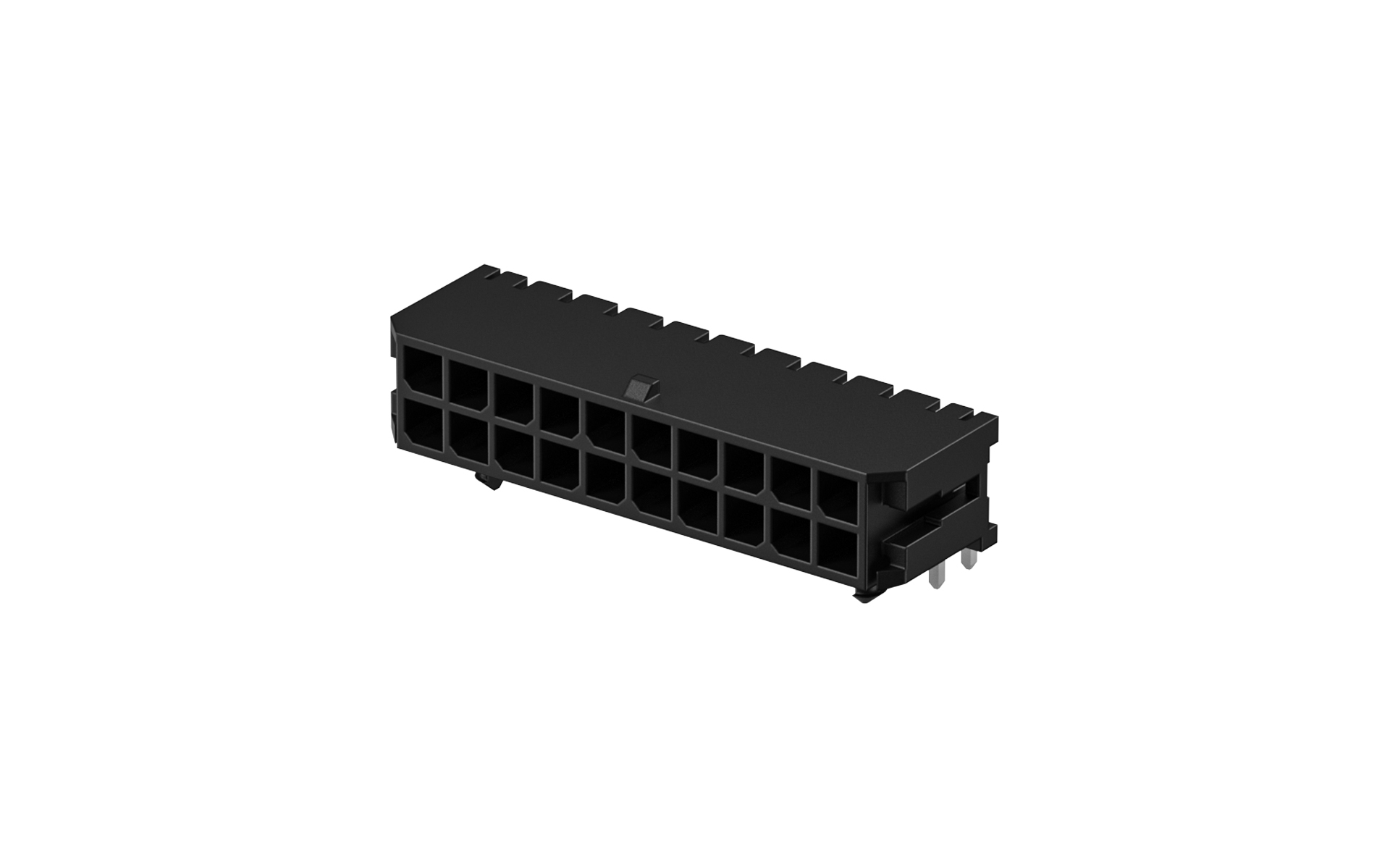

板装插座 3mm 插件 90° 24位(带定位柱)
FWF30002-D24B22K6B
Wafer 3mm 90°Angle 24Circuits (DIP)
FWF30002-D24B22K6B Copy
Share this product
Stock(pcs)
796
Lead time

≦ 796 In stock

＞ 796 Estimated delivery date 2025-12-30

MPQ
500
MOQ
1000
Quantity Unit Price
1 $0.389765
10 $0.367599
50 $0.323267
100 $0.301101
500 $0.256768
1000 $0.200321
2500 $0.197567
5000 $0.194813
10000 $0.192060
25000 $0.189306

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3mm
Row Option
Dual row
Number of Positions
24Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
5A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF30002series

Product Specifications

FWF30002Productspecification.pdf
Plug
Wire to board housing 3mm 24Circuits

FHG30001-D24M2K6B

Wire to board housing 3mm 24Circuits
