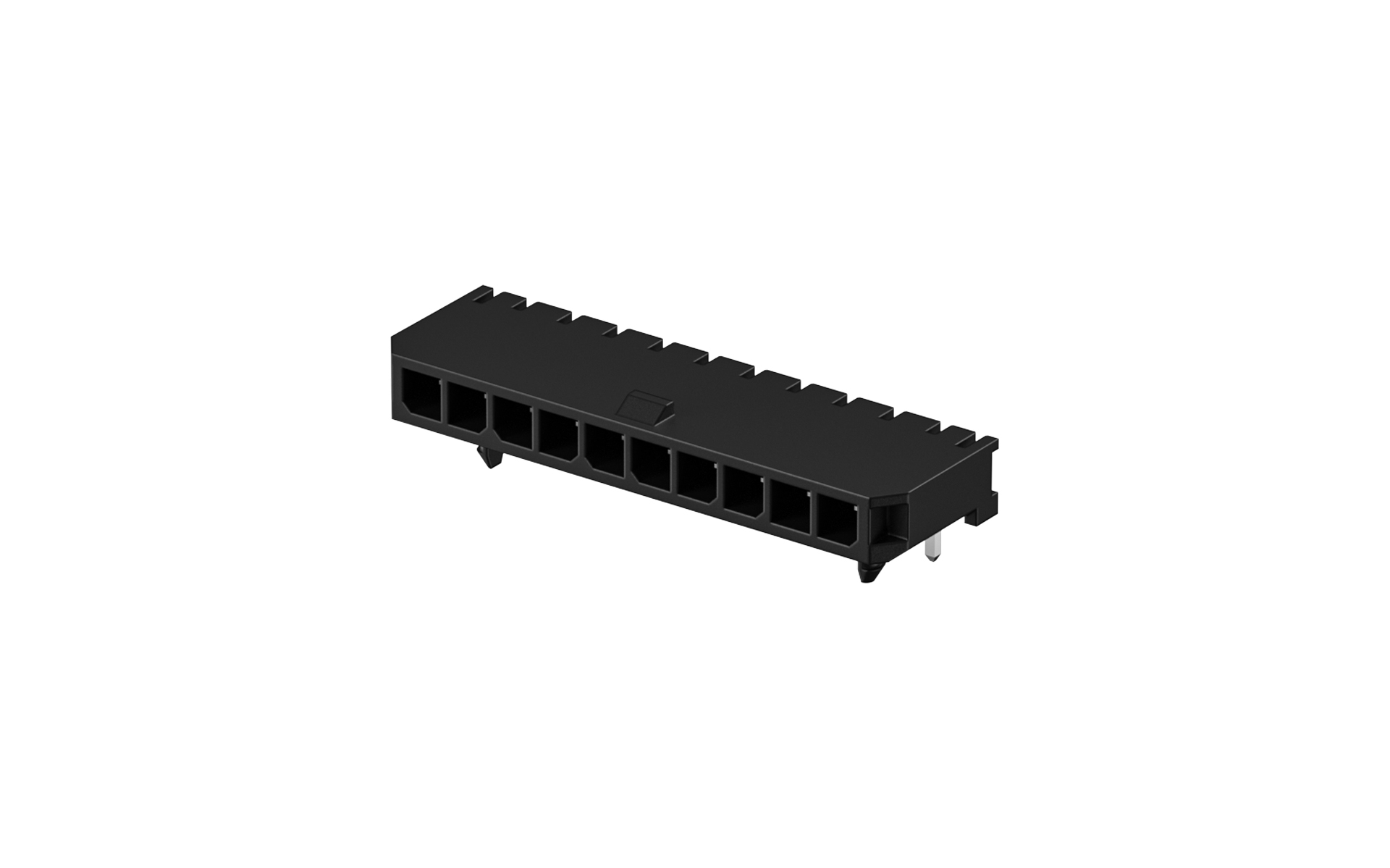

板装插座 3mm 插件 90° 10位
FWF30005-S10B22K6B
Wafer 3mm 90°Angle 10Circuits(DIP)
FWF30005-S10B22K6B Copy
Share this product
Stock(pcs)
252
Lead time

≦ 252 In stock

＞ 252 Estimated delivery date 2025-08-29

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.301410
10 $0.284269
50 $0.249986
100 $0.232845
500 $0.198562
1000 $0.154911
2500 $0.152781
5000 $0.150652
10000 $0.148523
25000 $0.146393
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3mm
Row Option
Single row
Number of Positions
10Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
5A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF30005
Plug
Wire to board housing 3mm 10Circuits

FHG30002-S10M2K6B

Wire to board housing 3mm 10Circuits
