板装插座 3mm 插件 90° 12位
FWF30005-S12B22K6B

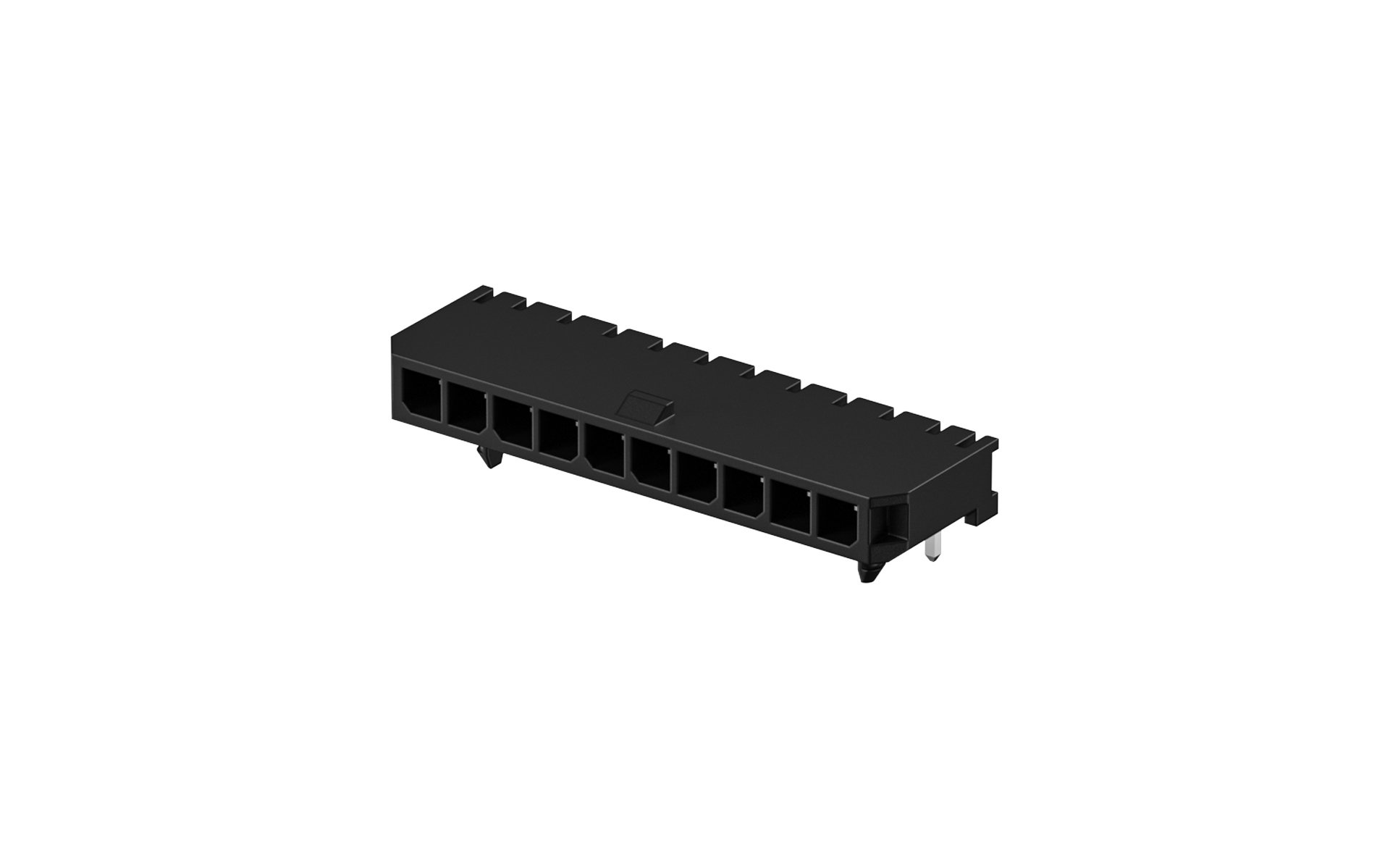

Wafer 3mm 90°Angle 12Circuits(DIP)
FWF30005-S12B22K6B Copy
Share this product
Stock(pcs)
5
Lead time

≦ 5 In stock

＞ 5 Estimated delivery date 2025-12-30

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.303779
10 $0.286503
50 $0.251951
100 $0.234675
500 $0.200123
1000 $0.156128
2500 $0.153982
5000 $0.151836
10000 $0.149690
25000 $0.147544

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3mm
Row Option
Single row
Number of Positions
12Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
5A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF30005
Plug
Wire to board housing 3mm 12Circuits

FHG30002-S12M2K6B

Wire to board housing 3mm 12Circuits
