板装插座 3mm 立贴 16位

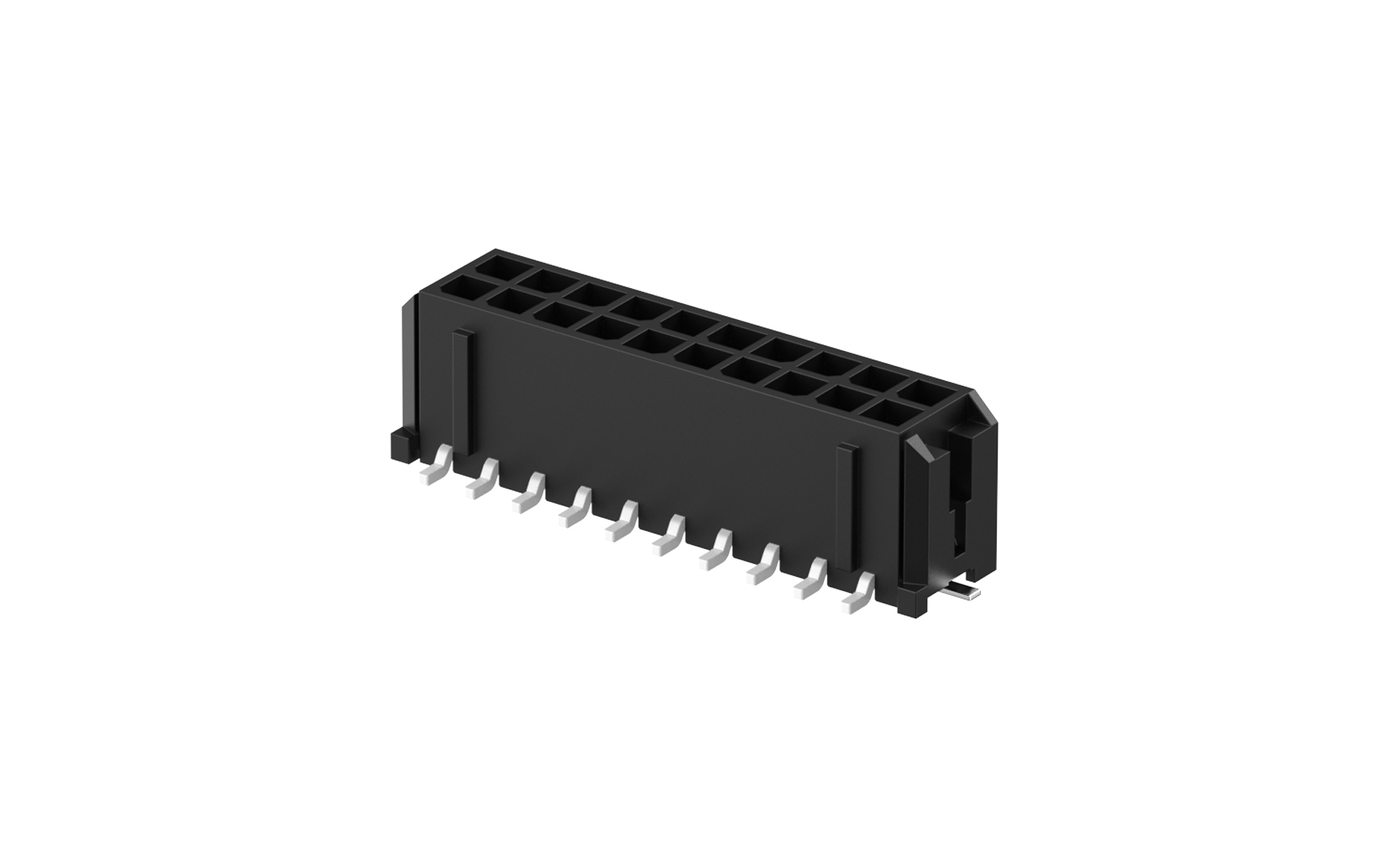

FWF30016-D16S23K6M
Wafer 3mm 180°Vertical 16Circuits (SMT)
FWF30016-D16S23K6M Copy
Share this product
Stock(pcs)
13
Lead time

≦ 13 In stock

＞ 13 Estimated delivery date 2026-01-04

MPQ
300
MOQ
900
Quantity Unit Price
1 $0.788547
10 $0.657122
50 $0.573489
100 $0.525698
300 $0.430116
900 $0.333340
4500 $0.328561
9000 $0.323782

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3mm
Row Option
Dual row
Number of Positions
16Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
5A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Matte tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF30016 Series

3D Drawings

FWF30016-D16S23K6M_REF
Plug
Wire to board housing 3mm 16Circuits

FHG30001-D16M2K6B

Wire to board housing 3mm 16Circuits
