FWF30019-D10B23K6M Wafer 3mm 90°Angle 10Circuits (SMT)

FWF30019-D10B23K6M

Wafer 3mm 90°Angle 10Circuits (SMT)

Product Number：FWF30019-D10B23K6M

Production Status： Active

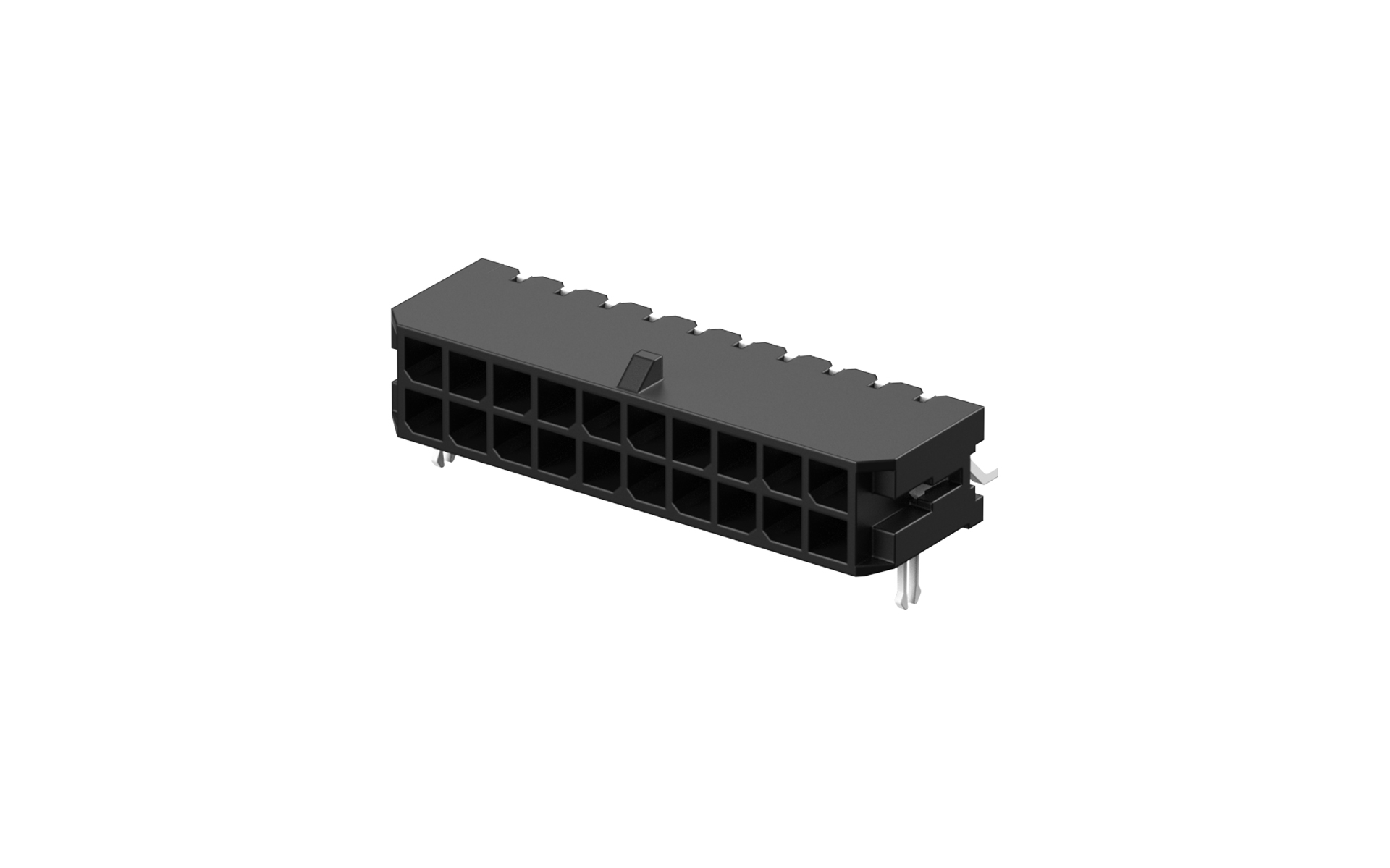

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{6.252691\|tradeCurrencySymbol({digits:6})}}
10+	{{5.373407\|tradeCurrencySymbol({digits:6})}}
50+	{{4.689518\|tradeCurrencySymbol({digits:6})}}
100+	{{4.298725\|tradeCurrencySymbol({digits:6})}}
500+	{{3.517139\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 1000

MPQ 1400

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Wire to Board/Wire Connector

Style

Socket

Gender

Female

Pitch

3mm

Row Option

Dual row

Number of Positions

10Circuits

Orientation

Right angle(90°)

Colour

Black

Current(Max)

Voltage(Max)

250V

Contact Resistance

10 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

1500V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

Mounting Style

SMT

Material-Contact

Brass

Plating

Matte tin plated

Material-Resin

LCP

Flammability Rating

UL94 V-0

Packaging

Reel

Product Drawings

FWF30019 Series.pdf

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
