板装插座 3mm 卧贴 14位(带鱼叉)

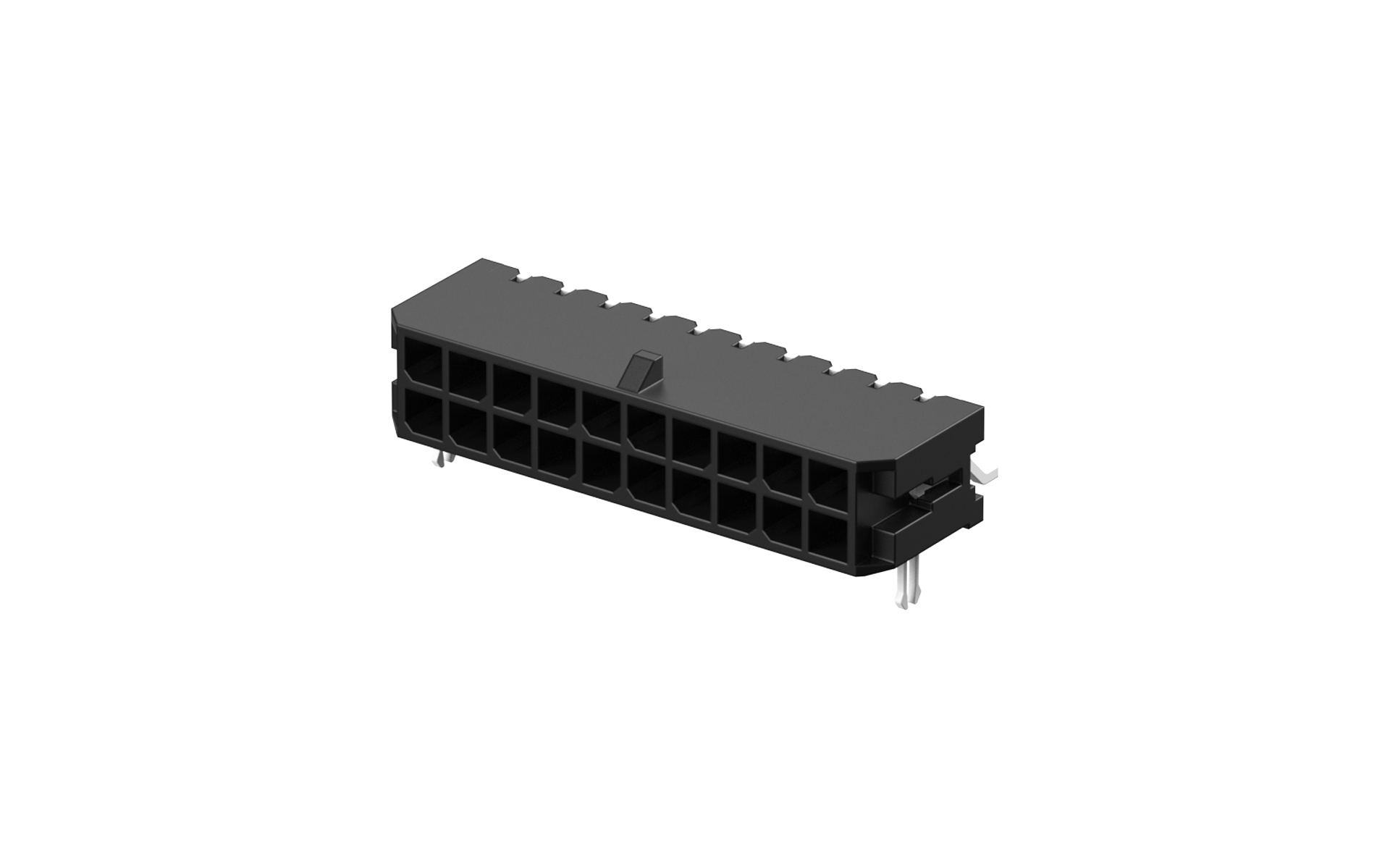

FWF30019-D14B23K6M
Wafer 3mm 90°Angle 14Circuits (SMT)
FWF30019-D14B23K6M Copy
Share this product
Stock(pcs)
400
Lead time

≦ 400 In stock

＞ 400 Estimated delivery date 2025-12-30

MPQ
200
MOQ
1000
Quantity Unit Price
1 $1.006345
10 $0.864828
50 $0.754759
100 $0.691862
500 $0.566069
1000 $0.438704
5000 $0.432414
10000 $0.426124

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3mm
Row Option
Dual row
Number of Positions
14Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
5A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Matte tin plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF30019 Series
Plug
Wire to board housing 3mm 14Circuits

FHG30001-D14M2K6B

Wire to board housing 3mm 14Circuits

 Wire to board housing 3mm 14Circuits

FHG30006-D14M2BKB

Wire to board housing 3mm 14Circuits
