板装插座 3mm 卧贴 20位(带鱼叉)

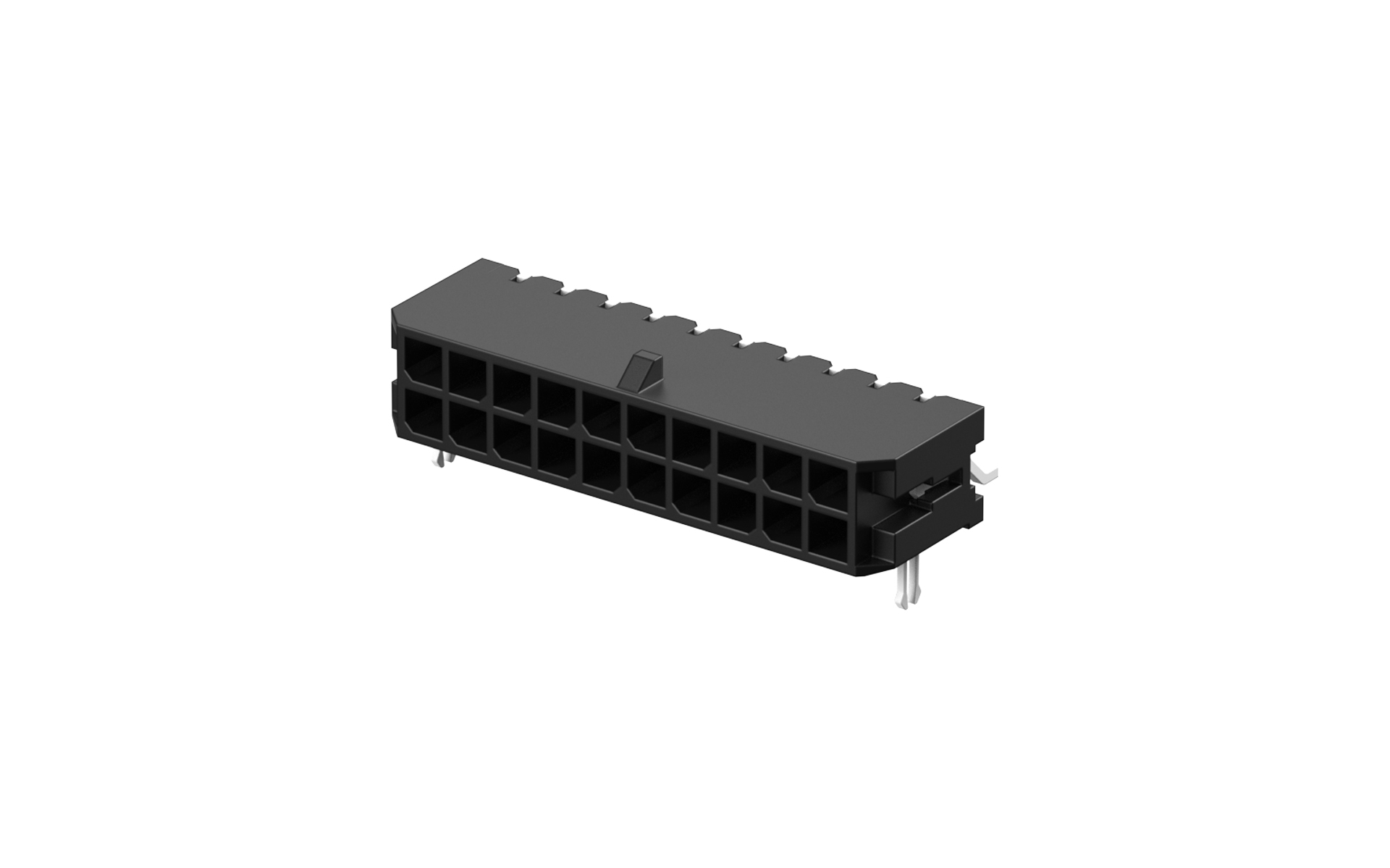

FWF30019-D20B23K6M
Wafer 3mm 90°Angle 20Circuits (SMT)
FWF30019-D20B23K6M Copy
Share this product
Stock(pcs)
940
Lead time

≦ 940 In stock

＞ 940 Estimated delivery date 2025-12-30

MPQ
200
MOQ
1000
Quantity Unit Price
1 $1.340276
10 $1.183911
50 $1.027545
100 $0.938193
500 $0.781828
1000 $0.620995
5000 $0.612059
10000 $0.603124

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3mm
Row Option
Dual row
Number of Positions
20Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
5A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Matte tin plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF30019 Series
Plug
Wire to board housing 3mm 20Circuits

FHG30001-D20M2K6B

Wire to board housing 3mm 20Circuits

 Wire to board housing 3mm 20Circuits

FHG30006-D20M2BKB

Wire to board housing 3mm 20Circuits
