板装插座 3mm 卧贴 14位 (大卡扣）

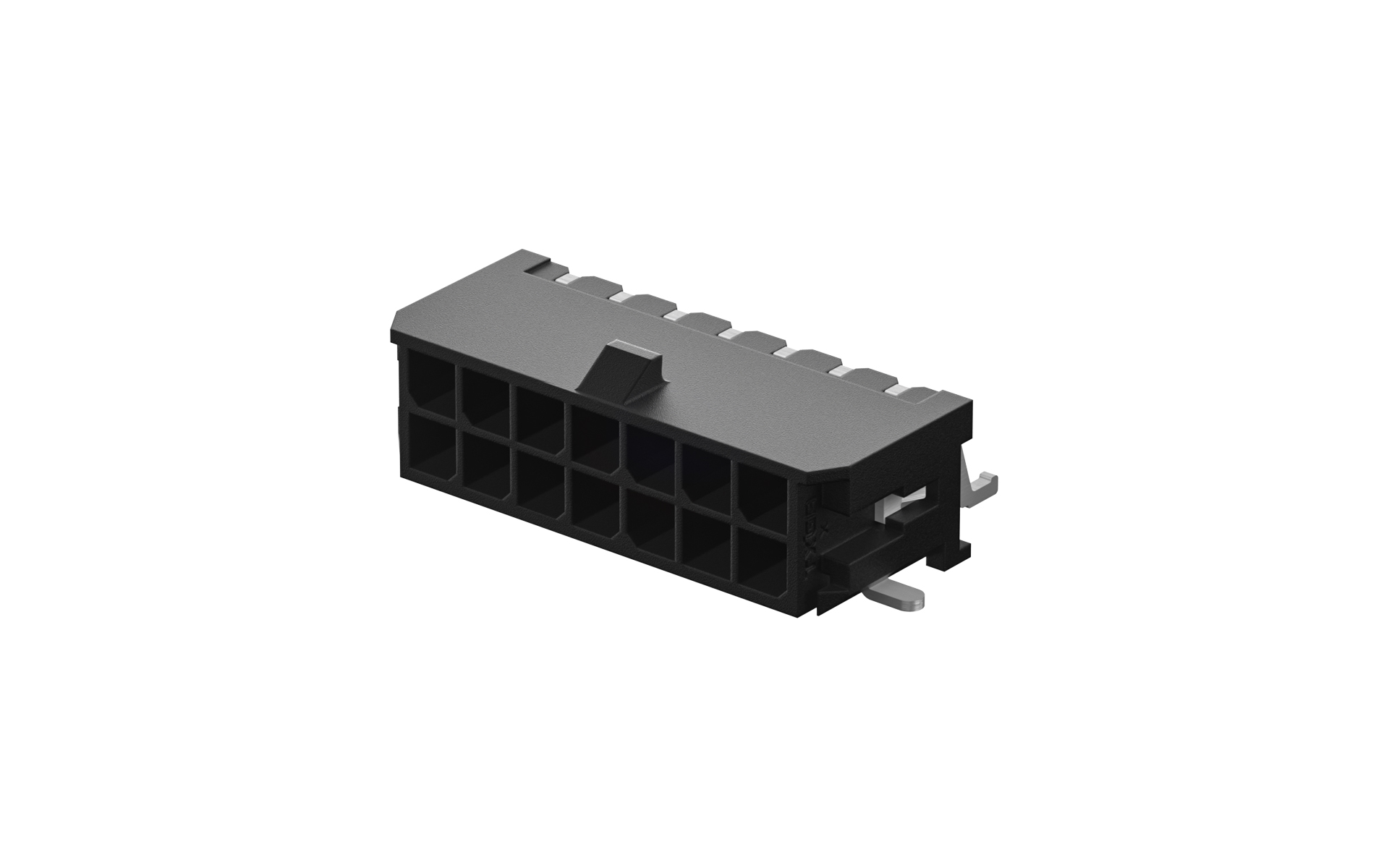

FWF30025-D14B23BKM
Wafer 3mm 90°Angle 14Circuits (SMT)
FWF30025-D14B23BKM Copy
Share this product
Stock(pcs)
13160
Lead time

≦ 13160 In stock

＞ 13160 Estimated delivery date 2026-01-04

MPQ
200
MOQ
2000
Quantity Unit Price
1 $0.718982
10 $0.597120
50 $0.548376
100 $0.516692
500 $0.441138
1000 $0.332681
5000 $0.327807
10000 $0.322932

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3mm
Row Option
Dual row
Number of Positions
14Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
5A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Matte tin plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

销售图FWF30025-DXXB23BKM

3D Drawings

FWF30025-D14B23BKM
Plug
Wire to board housing 3mm 14Circuits

FHG30006-D14M2BKB

Wire to board housing 3mm 14Circuits
