板装插座 3mm 卧贴 16位 (大卡扣）

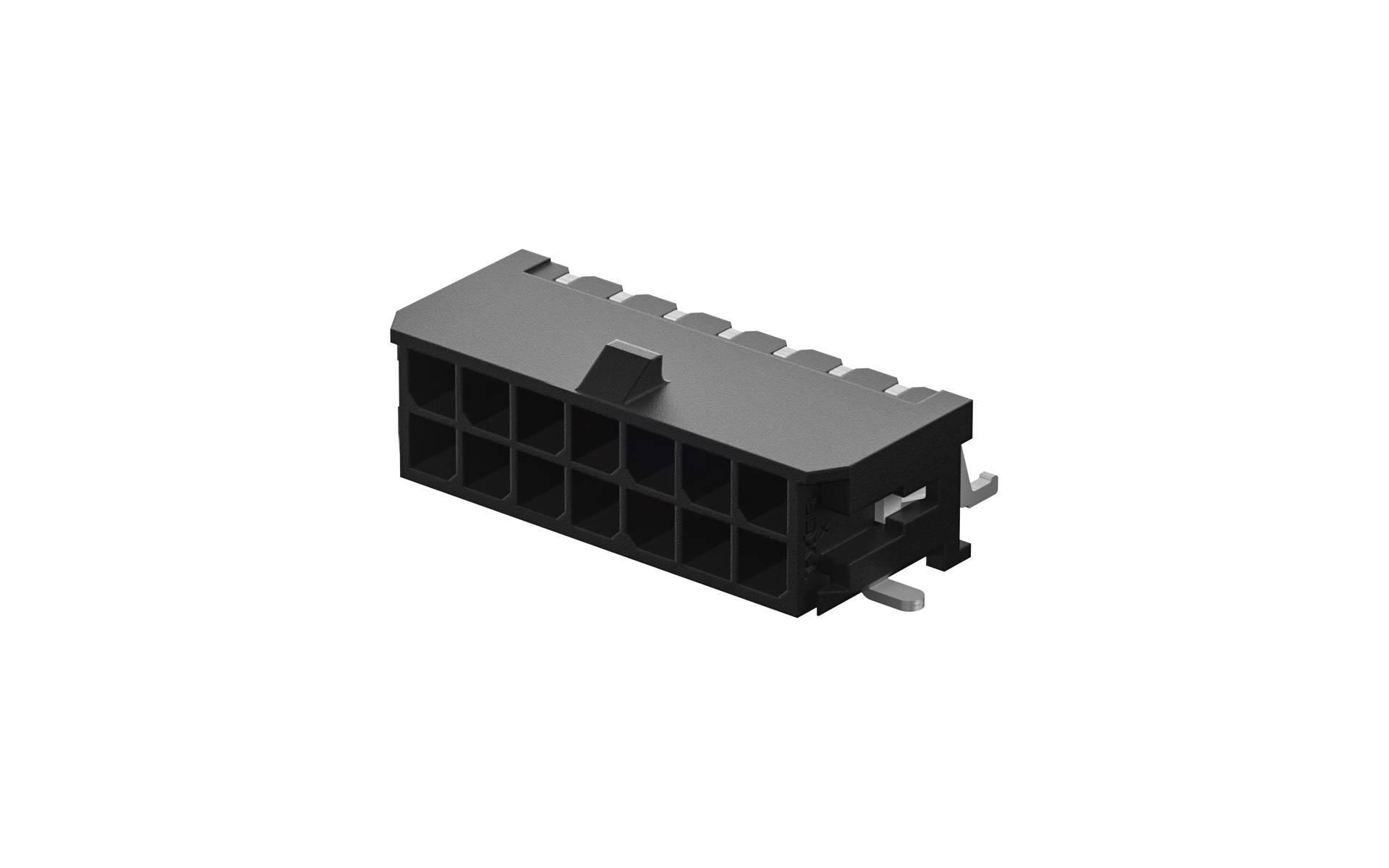

FWF30025-D16B23BKM
Wafer 3mm 90°Angle 16Circuits (SMT)
FWF30025-D16B23BKM Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2026-01-04
MPQ
200
MOQ
2000
Quantity Unit Price
1 $0.803776
10 $0.667543
50 $0.613050
100 $0.577629
500 $0.493164
1000 $0.371917
5000 $0.366468
10000 $0.361018

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3mm
Row Option
Dual row
Number of Positions
16Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
5A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Matte tin plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

销售图FWF30025-DXXB23BKM
Plug
Wire to board housing 3mm 16Circuits

FHG30006-D16M2BKB

Wire to board housing 3mm 16Circuits
