板装插座 3mm 插件 180° 12位 (大卡扣）
FWF30027-D12S23BKK-B

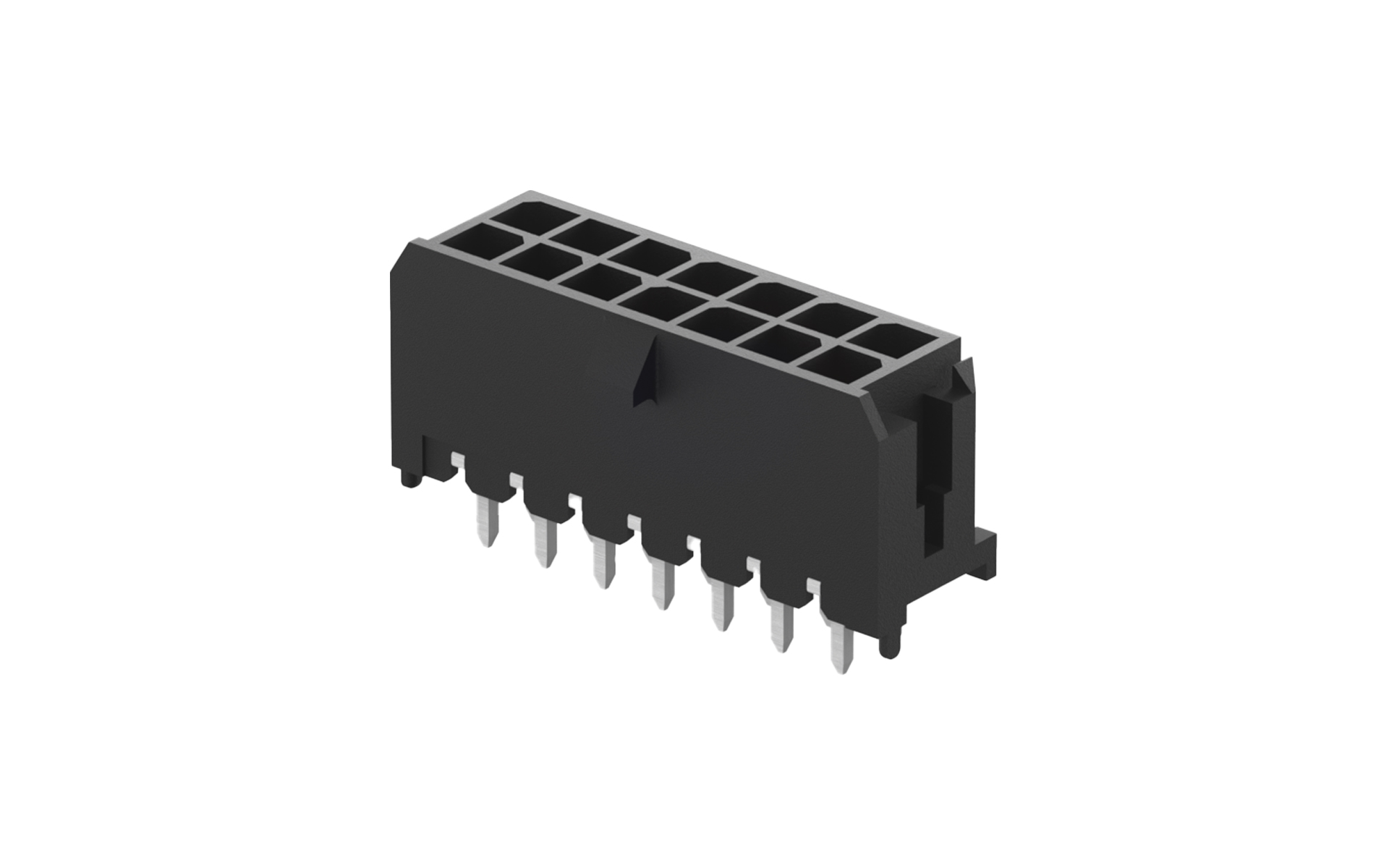

Wafer 3mm 180°Vertical 12Circuits (DIP)
FWF30027-D12S23BKK-B Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2026-01-03
MPQ
192
MOQ
1920
Quantity Unit Price
1 $0.507223
10 $0.478377
50 $0.420685
100 $0.391839
500 $0.334147
1000 $0.260689
2500 $0.257105
5000 $0.253522
10000 $0.249939
25000 $0.246355

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3mm
Row Option
Dual row
Number of Positions
12Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
5A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Matte tin plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray

Product Drawings

FWF30027-DXXS23BKX-B.pdf
Plug
Wire to board housing 3mm 12Circuits

FHG30006-D12M2BKB

Wire to board housing 3mm 12Circuits
