板装插座 3mm 插件 180° 14位 (大卡扣）

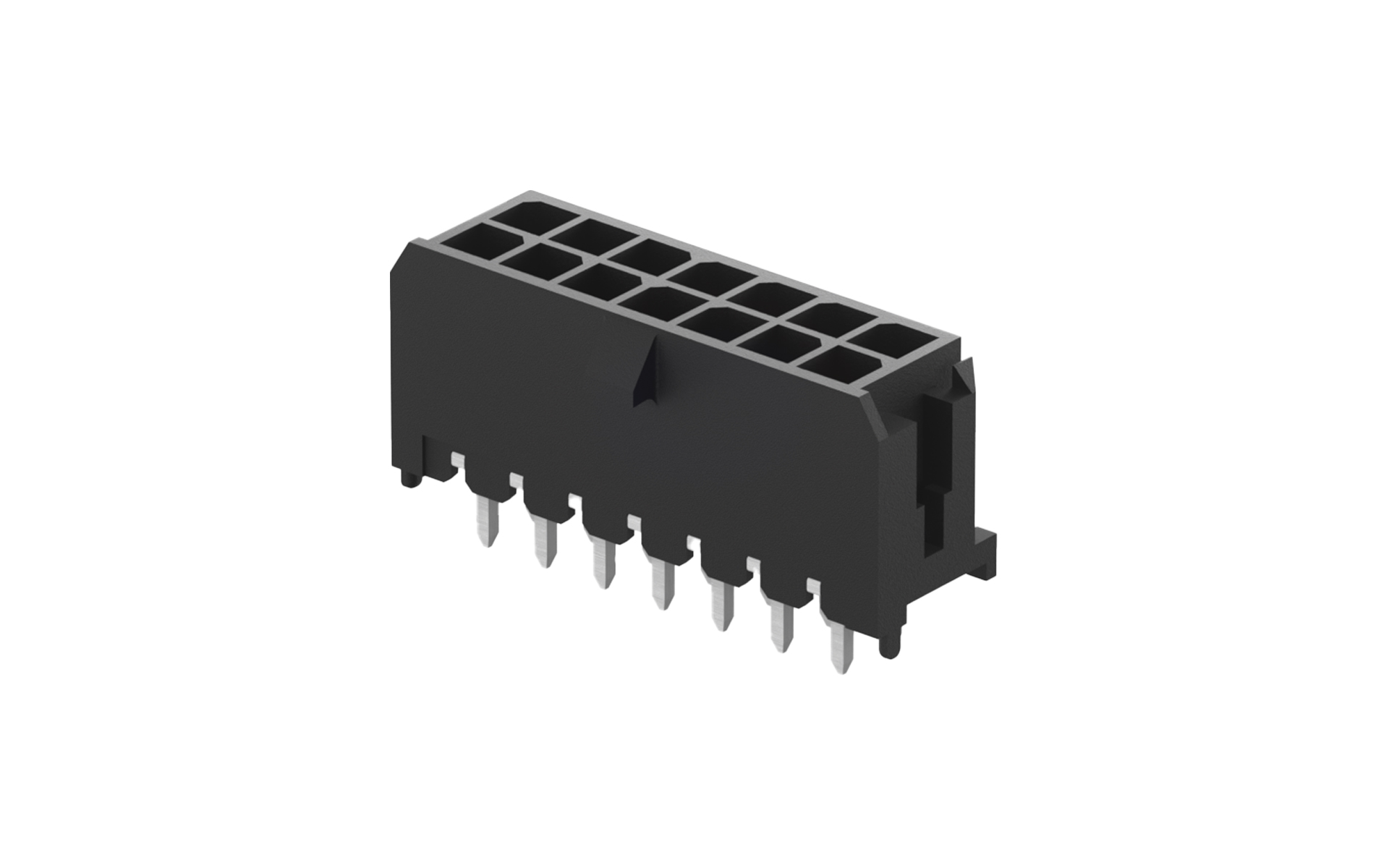

FWF30027-D14S23BKK-B
Wafer 3mm 180°Vertical 14Circuits (DIP)
FWF30027-D14S23BKK-B Copy
Share this product
Stock(pcs)
24737
Lead time

≦ 24737 In stock

＞ 24737 Estimated delivery date 2026-01-04

MPQ
168
MOQ
2016
Quantity Unit Price
1 $0.554337
10 $0.523574
50 $0.462049
100 $0.431286
500 $0.369761
1000 $0.295402
2500 $0.291327
5000 $0.287253
10000 $0.283178
25000 $0.279104

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3mm
Row Option
Dual row
Number of Positions
14Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
5A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Matte tin plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray

Product Drawings

FWF30027-DXXS23BKX-B.pdf

3D Drawings

FWF30027-D14S23BKK-B
Plug
Wire to board housing 3mm 14Circuits

FHG30006-D14M2BKB

Wire to board housing 3mm 14Circuits
