板装插座 3.96mm 插件180° 5位 (取消第2,3,4位)
FWF39601-S05S22W1B-E234

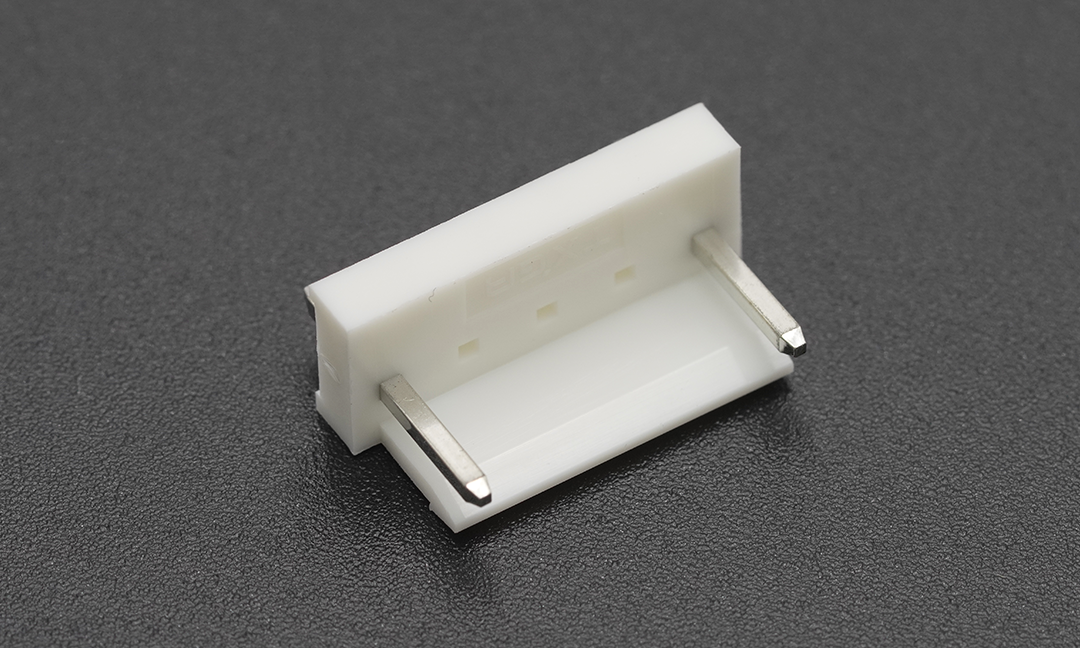

Wafer 3.96mm 180°Vertical 5Circuits (DIP) (Canceled No.2, 3, 4Circuits)
FWF39601-S05S22W1B-E234 Copy
Share this product
Stock(pcs)
1234
Lead time

≦ 1234 In stock

＞ 1234 Estimated delivery date 2025-12-29

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.082534
10 $0.066027
50 $0.053647
100 $0.051171
500 $0.042587
1000 $0.030207
5000 $0.029547
10000 $0.029217

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3.96mm
Row Option
Single row
Number of Positions
5Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
7A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

Drawing-FWF39601

Product Specifications

FWF39601Productspecification.pdf
Plug
Wire to board housing 3.96mm 5Circuits

FHG39601-S05M2W1B

Wire to board housing 3.96mm 5Circuits
