板装插座 3.96mm 插件180° 8位 (取消第2,3,5,6,7位)
FWF39601-S08S22W1B-E23567

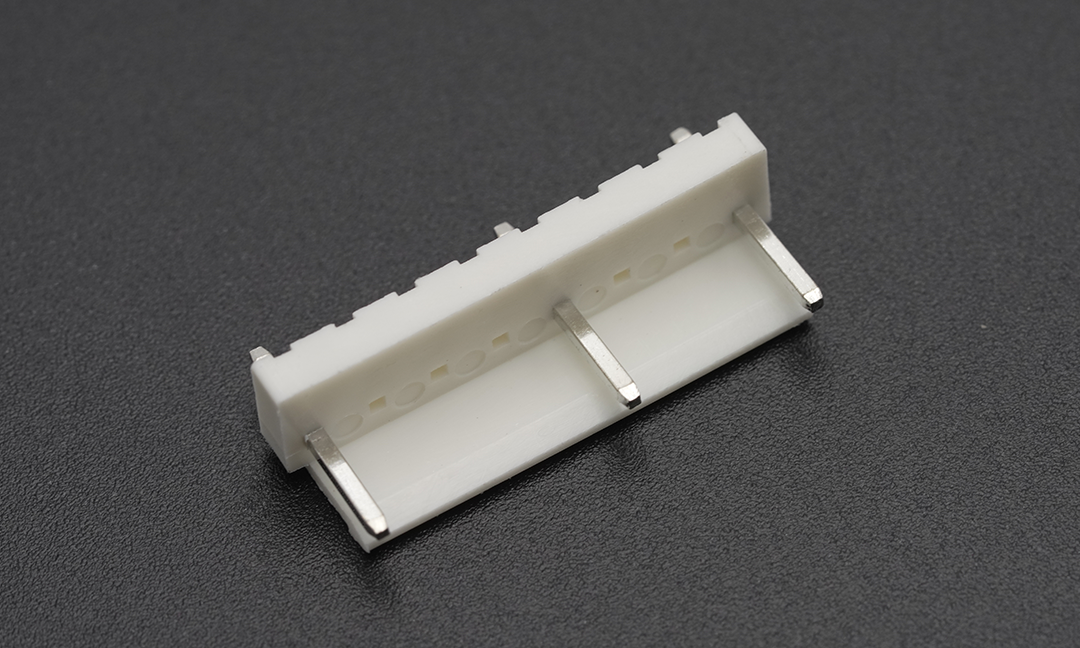

Wafer 3.96mm 180°Vertical 8Circuits (DIP) (Canceled No.2, 3, 5, 6, 7Circuits)
FWF39601-S08S22W1B-E23567 Copy
Share this product
Stock(pcs)
196
Lead time

≦ 196 In stock

＞ 196 Estimated delivery date 2025-12-29

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.108796
10 $0.087509
50 $0.074501
100 $0.070954
500 $0.059128
1000 $0.042336
5000 $0.041390
10000 $0.040917

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3.96mm
Row Option
Single row
Number of Positions
8Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
7A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

Drawing-FWF39601

Product Specifications

FWF39601Productspecification.pdf
Plug
Wire to board housing 3.96mm 8Circuits

FHG39601-S08M2W1B

Wire to board housing 3.96mm 8Circuits
