板装插座 3.96mm 插件180° 9位

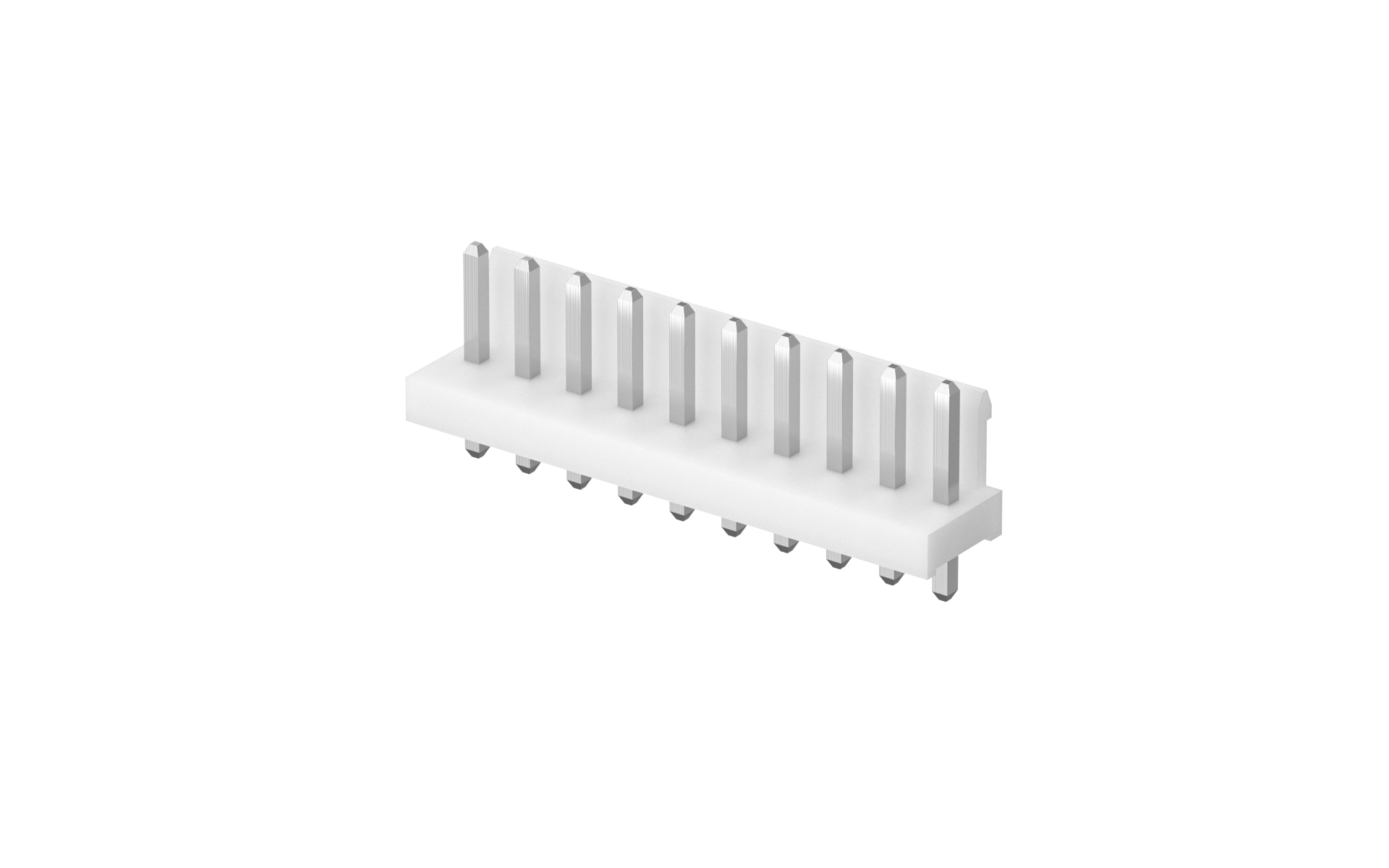

FWF39601-S09S22W1B
Wafer 3.96mm 180°Vertical 9Circuits (DIP)
FWF39601-S09S22W1B Copy
Share this product
Stock(pcs)
4233
Lead time

≦ 4233 In stock

＞ 4233 Estimated delivery date 2025-12-30

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.182759
10 $0.147002
50 $0.125151
100 $0.119191
500 $0.099326
1000 $0.071117
5000 $0.069528
10000 $0.068733

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3.96mm
Row Option
Single row
Number of Positions
9Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
7A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

Drawing-FWF39601

Product Specifications

FWF39601Productspecification.pdf
Plug
Wire to board housing 3.96mm 9Circuits

FHG39601-S09M2W1B

Wire to board housing 3.96mm 9Circuits
