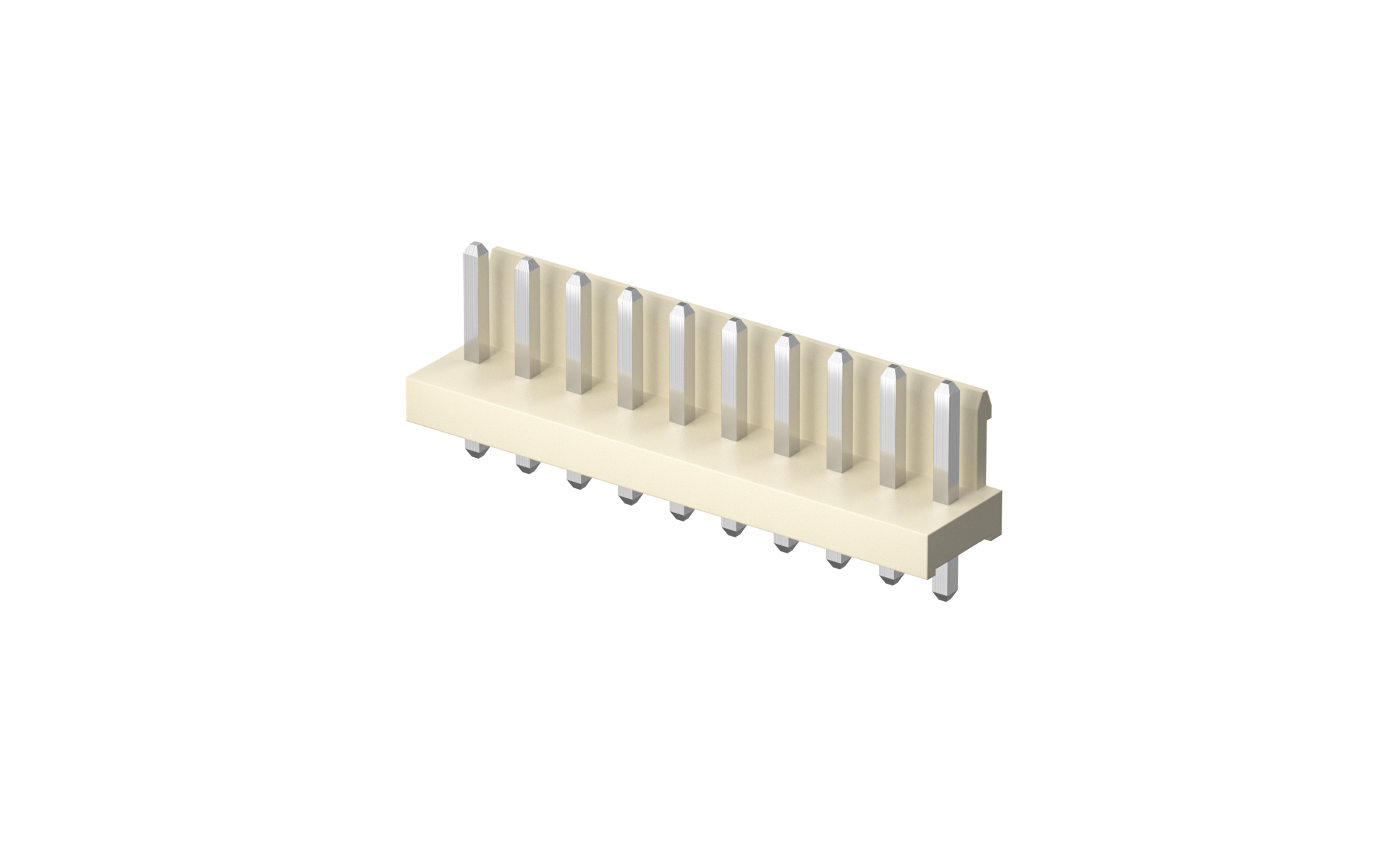

板装插座 3.96mm 插件 180° 9位(6T)
FWF39601-S09S24W5B
Wafer 3.96mm 180°Vertical 9Circuits(DIP)
FWF39601-S09S24W5B Copy
Share this product
Stock(pcs)
1000
Lead time

≦ 1000 In stock

＞ 1000 Estimated delivery date 2025-12-30

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.254386
10 $0.202968
50 $0.175906
100 $0.167787
500 $0.140724
1000 $0.098507
5000 $0.096342
10000 $0.095260

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3.96mm
Row Option
Single row
Number of Positions
9Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
7A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

Drawing-FWF39601

Product Specifications

FWF39601Productspecification.pdf
Plug
Wire to board housing 3.96mm 9Circuits

FHG39601-S09M2W1B

Wire to board housing 3.96mm 9Circuits
