板装插座 3.96mm 插件180° 10位

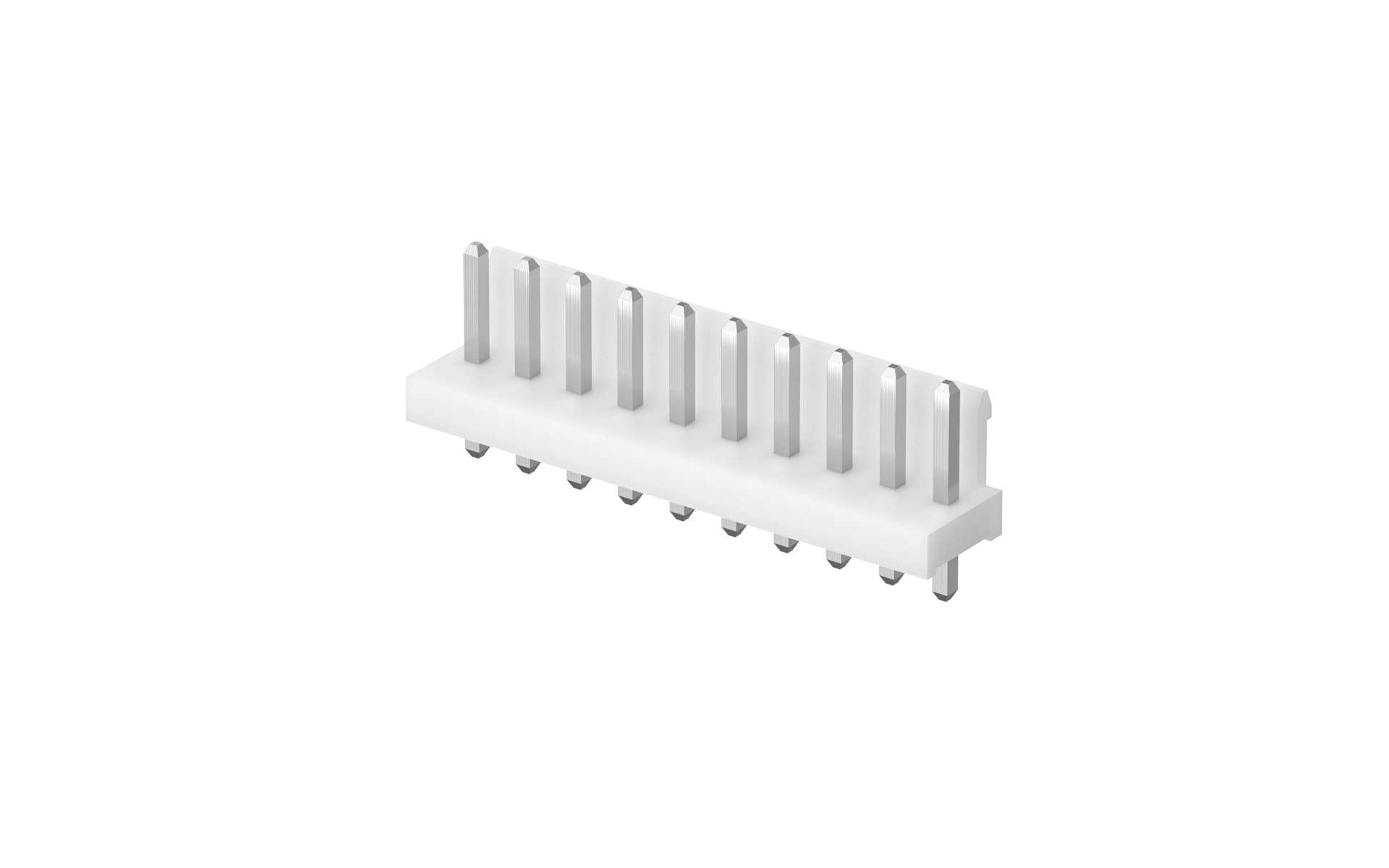

FWF39601-S10S22W1B
Wafer 3.96mm 180°Vertical 10Circuits (DIP)
FWF39601-S10S22W1B Copy
Share this product
Stock(pcs)
4680
Lead time

≦ 4680 In stock

＞ 4680 Estimated delivery date 2025-12-29

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.199431
10 $0.157329
50 $0.135170
100 $0.128522
500 $0.106363
1000 $0.078443
5000 $0.076670
10000 $0.075784

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3.96mm
Row Option
Single row
Number of Positions
10Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
7A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

Drawing-FWF39601

Product Specifications

FWF39601Productspecification.pdf
Plug
Wire to board housing 3.96mm 10Circuits

FHG39601-S10M2W1B

Wire to board housing 3.96mm 10Circuits
