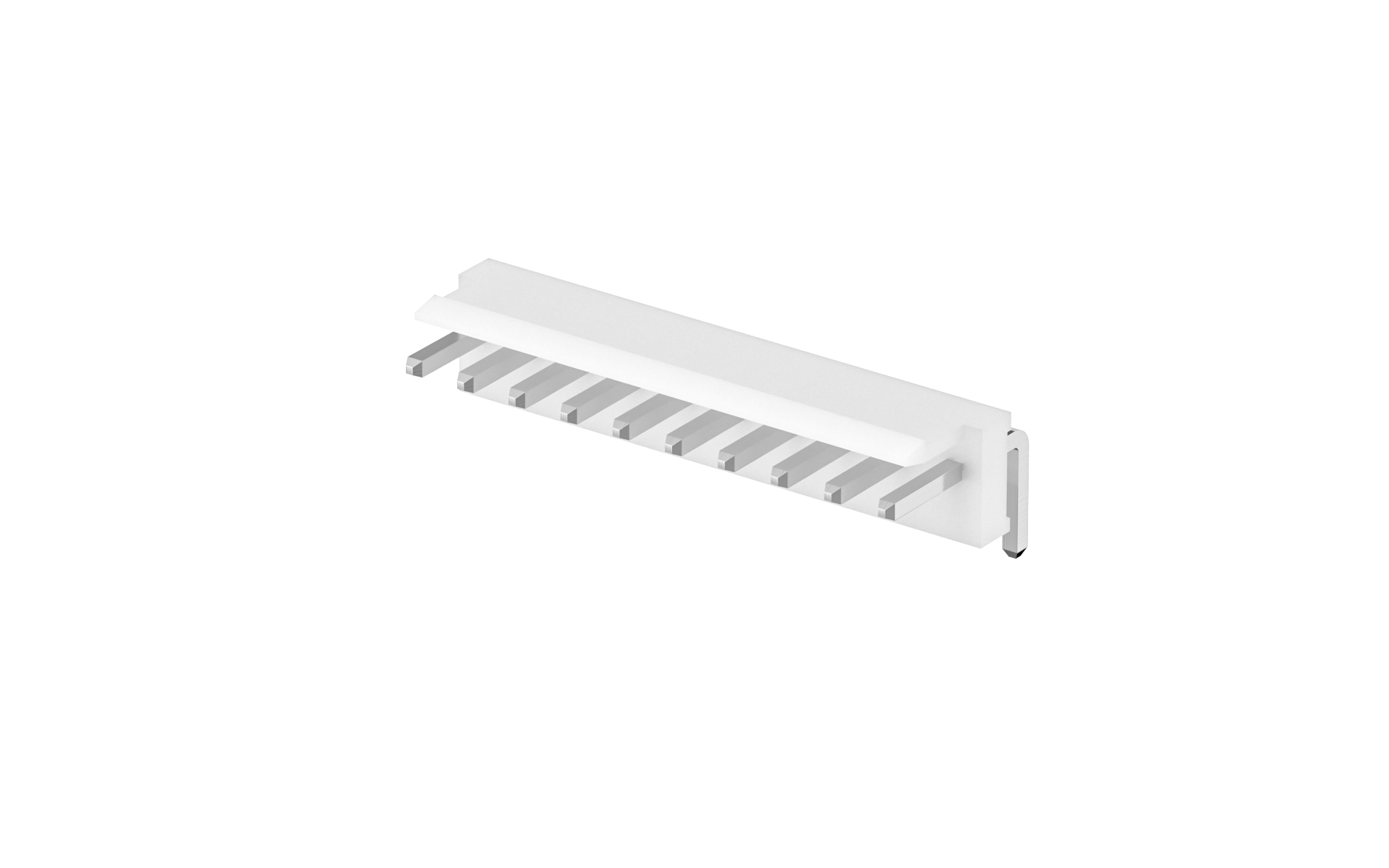

板装插座 3.96mm 插件 90° 9位(无卤)
FWF39602-S09B22W1B
Wafer 3.96mm 90°Angle 9Circuits (DIP)(HF)
FWF39602-S09B22W1B Copy
Share this product
Stock(pcs)
15684
Lead time

≦ 15684 In stock

＞ 15684 Estimated delivery date 2025-12-30

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.223402
10 $0.174046
50 $0.148069
100 $0.140276
500 $0.114299
1000 $0.081568
5000 $0.079490
10000 $0.078450

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3.96mm
Row Option
Single row
Number of Positions
9Circuits
Orientation
Right angle(90°)
Colour
White
Electrical
Current(Max)
7A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF39602 series

Product Specifications

FWF39602Productspecification.pdf
Plug
Wire to board housing 3.96mm 9Circuits

FHG39601-S09M2W1B

Wire to board housing 3.96mm 9Circuits
