板装插座 3.96mm 插件 90° 10位(无卤)

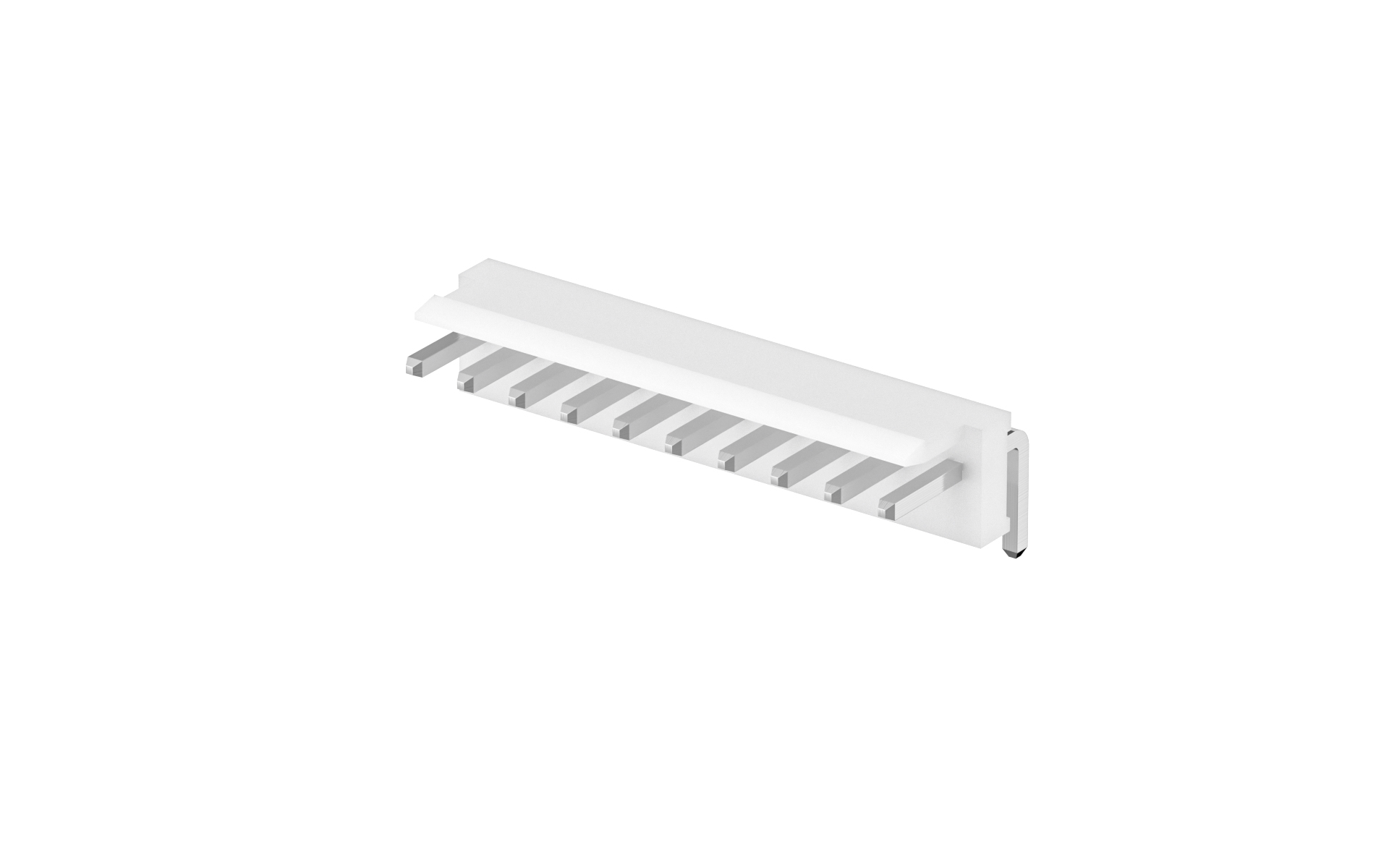

FWF39602-S10B22W1B
Wafer 3.96mm 90°Angle 10Circuits (DIP)(HF)
FWF39602-S10B22W1B Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-12-29
MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.248969
10 $0.193964
50 $0.165014
100 $0.156329
500 $0.127379
1000 $0.090903
5000 $0.088587
10000 $0.087429

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3.96mm
Row Option
Single row
Number of Positions
10Circuits
Orientation
Right angle(90°)
Colour
White
Electrical
Current(Max)
7A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF39602 series

Product Specifications

FWF39602Productspecification.pdf
Plug
Wire to board housing 3.96mm 10Circuits

FHG39601-S10M2W1B

Wire to board housing 3.96mm 10Circuits
