板装插座 3.96mm 插件 90° 12位(无卤)

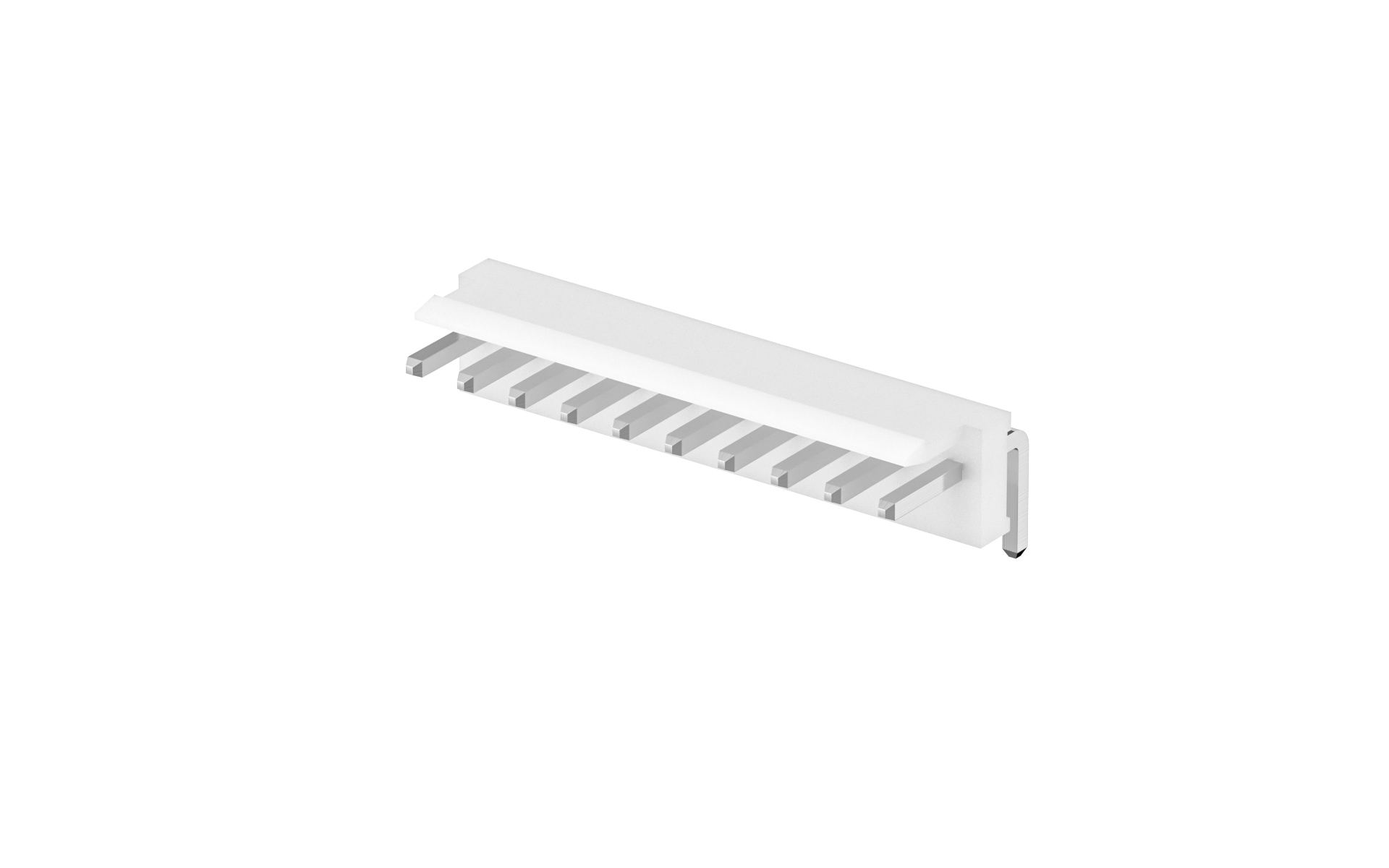

FWF39602-S12B22W1B
Wafer 3.96mm 90°Angle 12Circuits (DIP)(HF)
FWF39602-S12B22W1B Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-12-29
MPQ
500
MOQ
1000
Quantity Unit Price
1 $0.291755
10 $0.227297
50 $0.193372
100 $0.183195
500 $0.149270
1000 $0.106524
5000 $0.103810
10000 $0.102453

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3.96mm
Row Option
Single row
Number of Positions
12Circuits
Orientation
Right angle(90°)
Colour
White
Electrical
Current(Max)
7A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF39602 series

Product Specifications

FWF39602Productspecification.pdf
Plug
Wire to board housing 3.96mm 12Circuits

FHG39601-S12M2W1B

Wire to board housing 3.96mm 12Circuits
