FWF39614-S04S25W5M Wafer 3.96mm, 4Circuits, Vertical(180°), SMT

FWF39614-S04S25W5M

Wafer 3.96mm, 4Circuits, Vertical(180°), SMT

Product Number：FWF39614-S04S25W5M

Production Status： Active

Wafer 3.96mm, 4Circuits, Vertical(180°), SMT

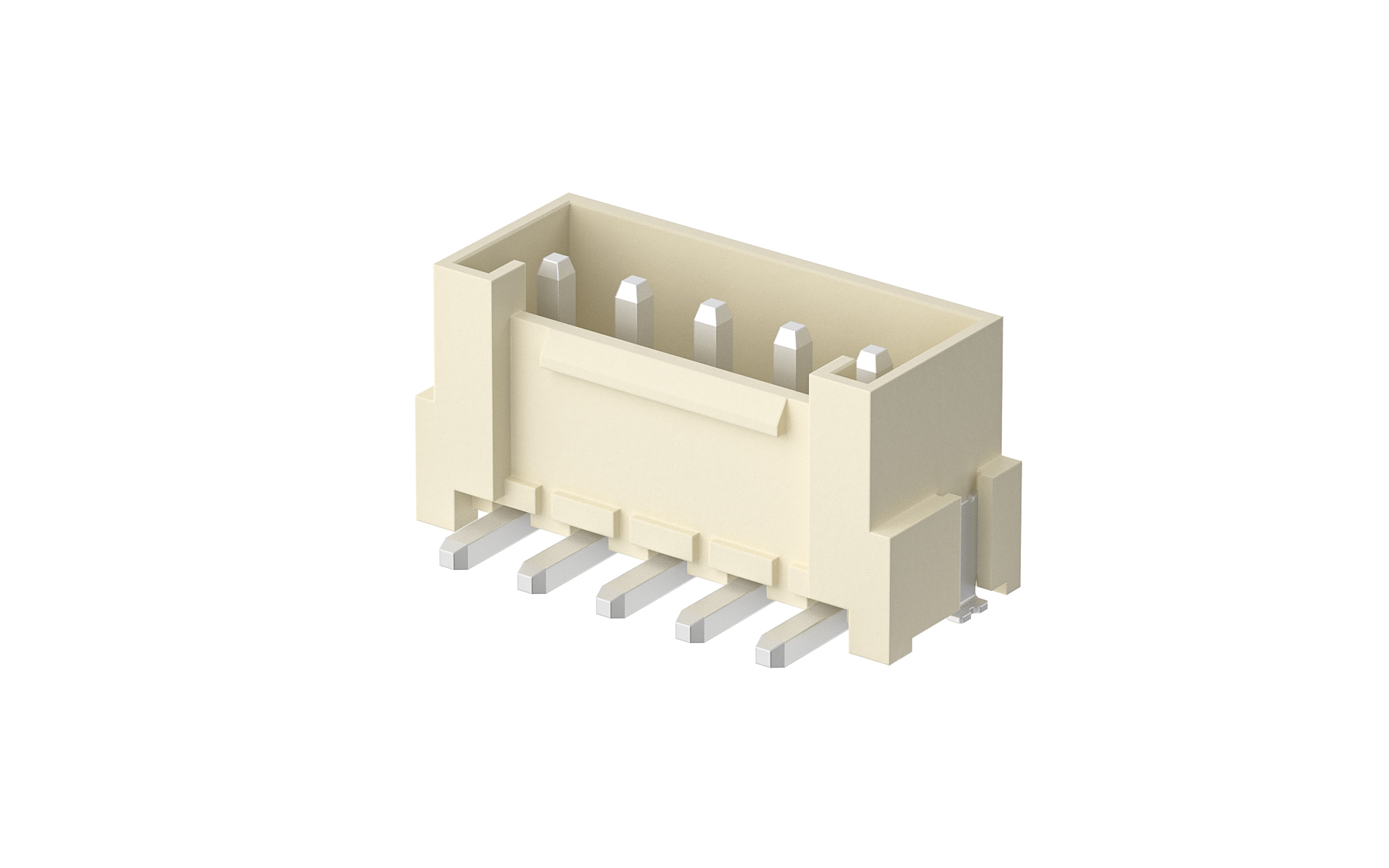

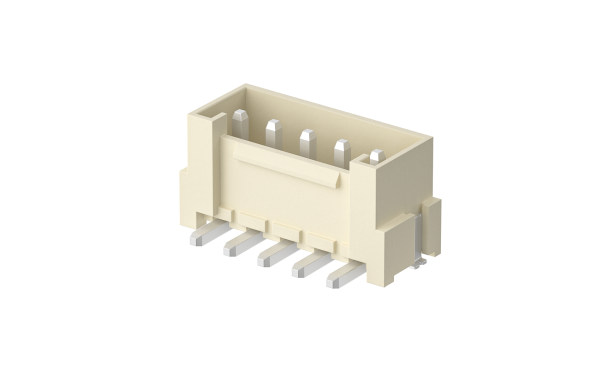

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{2.642886\|tradeCurrencySymbol({digits:6})}}
10+	{{1.761924\|tradeCurrencySymbol({digits:6})}}
50+	{{1.477743\|tradeCurrencySymbol({digits:6})}}
100+	{{1.352703\|tradeCurrencySymbol({digits:6})}}
500+	{{1.182194\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 155

Lead time Ship Immediately

MOQ 1040

MPQ 1040

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Wire to Board/Wire Connector

Style

Socket

Gender

Female

Pitch

3.96mm

Row Option

Single row

Number of Positions

4Circuits

Orientation

Vertical(180°)

Colour

Natural

Current(Max)

Voltage(Max)

250V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

1500V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

Mounting Style

SMT

Material-Contact

Brass

Plating

Bright tin plated

Material-Resin

PA9T

Flammability Rating

UL94 V-0

Packaging

Reel

Product Drawings

FWF39614 Series.pdf

3D Drawings

FWF39614-S04S25W5M_REF.stp

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
