板装插座 3.96mm 卧贴 3位

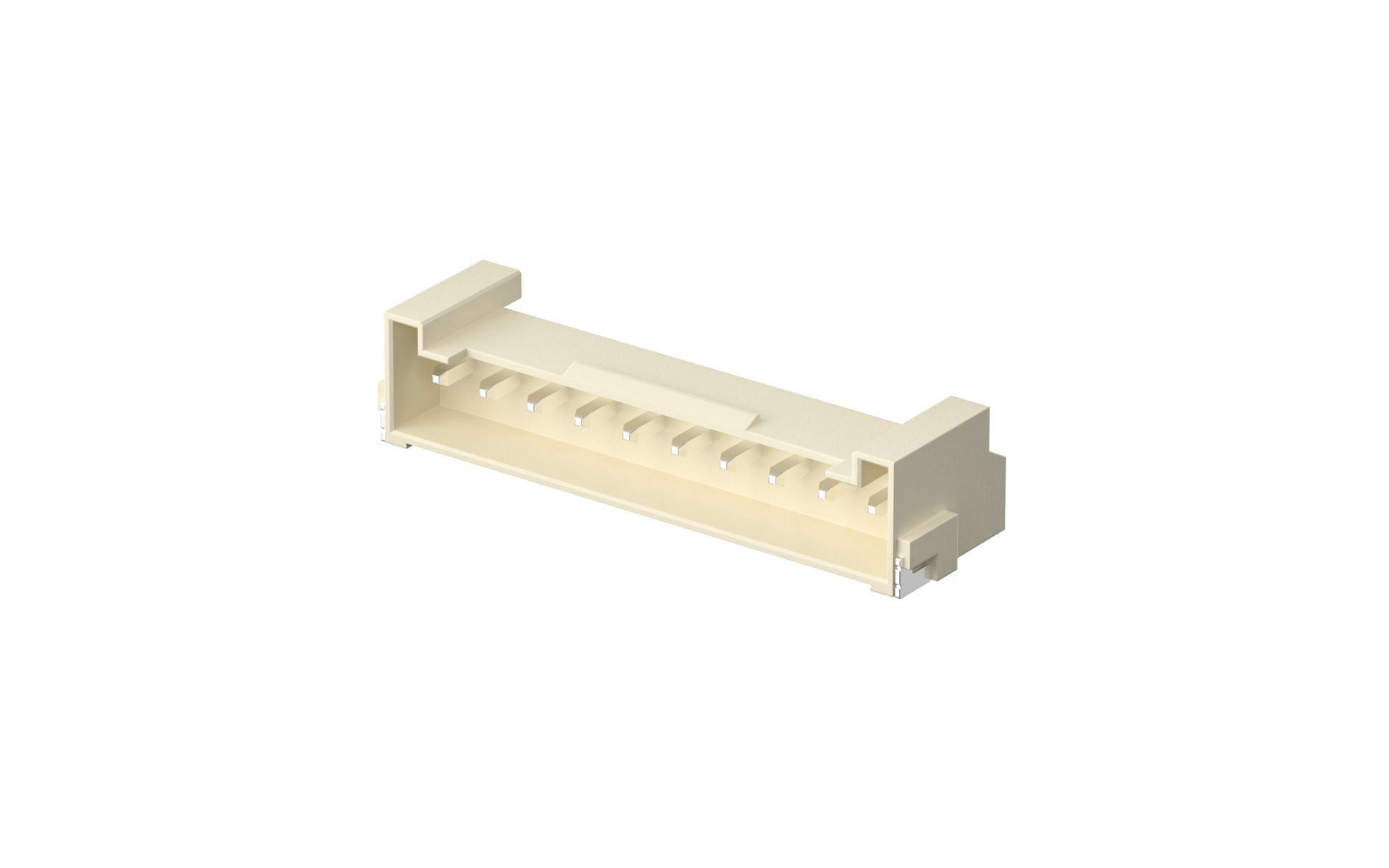

FWF39615-S03B23W5M
Wafer 3.96mm 90°Angle 3Circuits (SMT)
FWF39615-S03B23W5M Copy
Share this product
Stock(pcs)
38
Lead time

≦ 38 In stock

＞ 38 Estimated delivery date 2026-01-03

MPQ
300
MOQ
300
Quantity Unit Price
1 $0.252370
10 $0.237398
50 $0.207455
100 $0.192483
500 $0.162539
1000 $0.120767
2500 $0.119113
5000 $0.117458
10000 $0.115804
25000 $0.114150

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3.96mm
Row Option
Single row
Number of Positions
3Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
7A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF39615 Series

3D Drawings

FWF39615-S03B23W5M_ref
Plug
Wire to board housing 3.96mm 3Circuits

FHG39601-S03M2W1B

Wire to board housing 3.96mm 3Circuits
