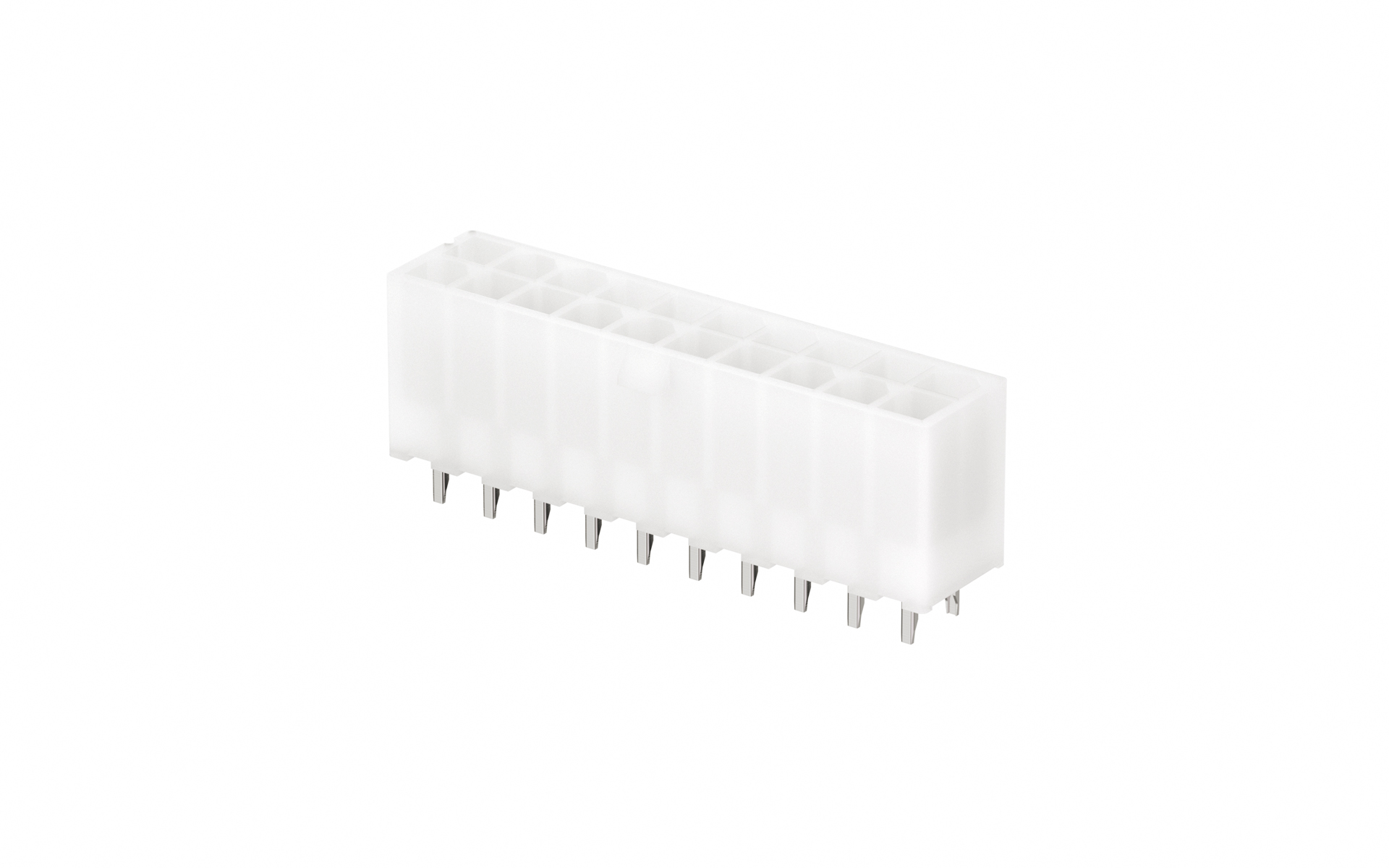

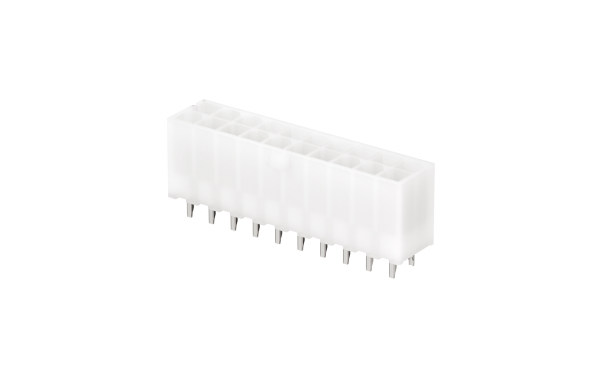

FWF42001-D22S22TK Wafer 4.2mm 180°Vertical 22Circuits (DIP)

FWF42001-D22S22TK

Wafer 4.2mm 180°Vertical 22Circuits (DIP)

Product Number：FWF42001-D22S22TK

Production Status： Active

Wafer 4.2mm 180°Vertical 22Circuits (DIP)

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{4.390879\|tradeCurrencySymbol({digits:6})}}
10+	{{4.147211\|tradeCurrencySymbol({digits:6})}}
50+	{{3.659873\|tradeCurrencySymbol({digits:6})}}
100+	{{3.416205\|tradeCurrencySymbol({digits:6})}}
500+	{{2.928867\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 420

MPQ 1575

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Wire to Board/Wire Connector

Style

Socket

Gender

Female

Pitch

4.2mm

Row Option

Dual row

Number of Positions

22Circuits

Orientation

Vertical(180°)

Colour

Clear

Current(Max)

Voltage(Max)

250V

Contact Resistance

15 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

1500V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

Mounting Style

Through hole

Material-Contact

Copper alloy

Plating

Bright tin plated

Material-Resin

PA66

Flammability Rating

UL94 V-2

Packaging

Tray

Product Drawings

FWF42001 Series.pdf

Product Specifications

FWF42001Productspecification.pdf English Version

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
