板装插座 4.2mm 插件 180° 24位(空心针)

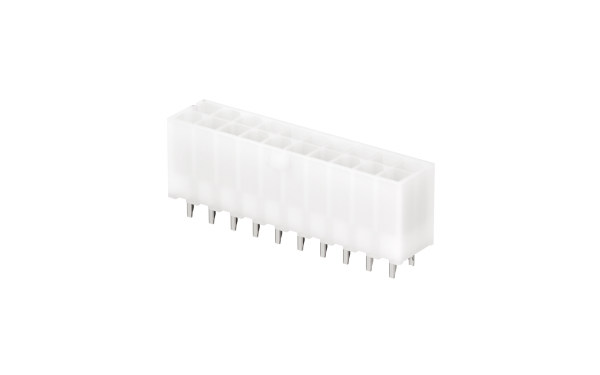

FWF42001-D24S22TK
Wafer 4.2mm 180°Vertical 24Circuits (DIP)
FWF42001-D24S22TK Copy
Share this product
Stock(pcs)
194
Lead time

≦ 194 In stock

＞ 194 Estimated delivery date 2025-10-13

MPQ
100
MOQ
400
Quantity Unit Price
1 $0.385990
10 $0.364039
50 $0.320136
100 $0.298185
500 $0.254282
1000 $0.198381
2500 $0.195654
5000 $0.192927
10000 $0.190200
25000 $0.187473

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
4.2mm
Row Option
Dual row
Number of Positions
24Circuits
Orientation
Vertical(180°)
Colour
Clear
Electrical
Current(Max)
7A
Voltage(Max)
250V
Contact Resistance
15 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Copper alloy
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-2
Packaging
Packaging
Tray

Product Drawings

FWF42001 Series

3D Drawings

FWF42001-D24S22TK-REF

Product Specifications

FWF42001Productspecification.pdf
Plug
Wire to board housing 4.2mm 24Circuits

FHG42001-D24M2TB

Wire to board housing 4.2mm 24Circuits
