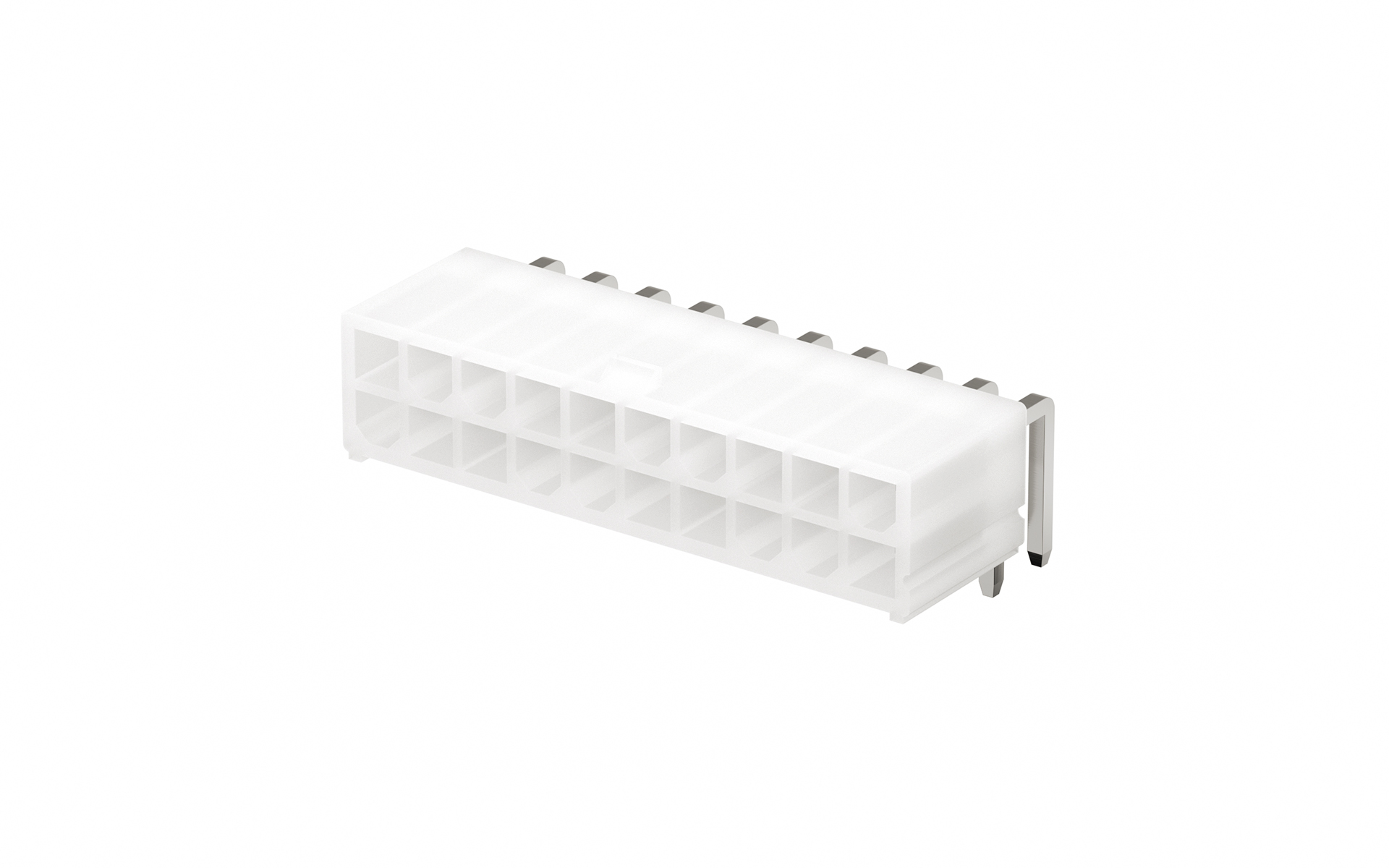

板装插座 4.2mm 插件 90° 10位(实心针)
FWF42003-D10B22TK
Wafer 4.2mm 90°Angle 10Circuits(DIP)
FWF42003-D10B22TK Copy
Share this product
Stock(pcs)
1155
Lead time

≦ 1155 In stock

＞ 1155 Estimated delivery date 2025-10-13

MPQ
500
MOQ
1000
Quantity Unit Price
1 $0.286691
10 $0.270387
50 $0.237778
100 $0.221474
500 $0.188866
1000 $0.147345
2500 $0.145320
5000 $0.143295
10000 $0.141269
25000 $0.139244

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
4.2mm
Row Option
Dual row
Number of Positions
10Circuits
Orientation
Right angle(90°)
Colour
Clear
Electrical
Current(Max)
9A
Voltage(Max)
250V
Contact Resistance
15 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-2
Packaging
Packaging
Tray

Product Drawings

FWF42003 series

3D Drawings

FWF42003-10P_ref

Product Specifications

Product specification FWF42003
Plug
Wire to board housing 4.2mm 10Circuits

FHG42001-D10M2TB

Wire to board housing 4.2mm 10Circuits
