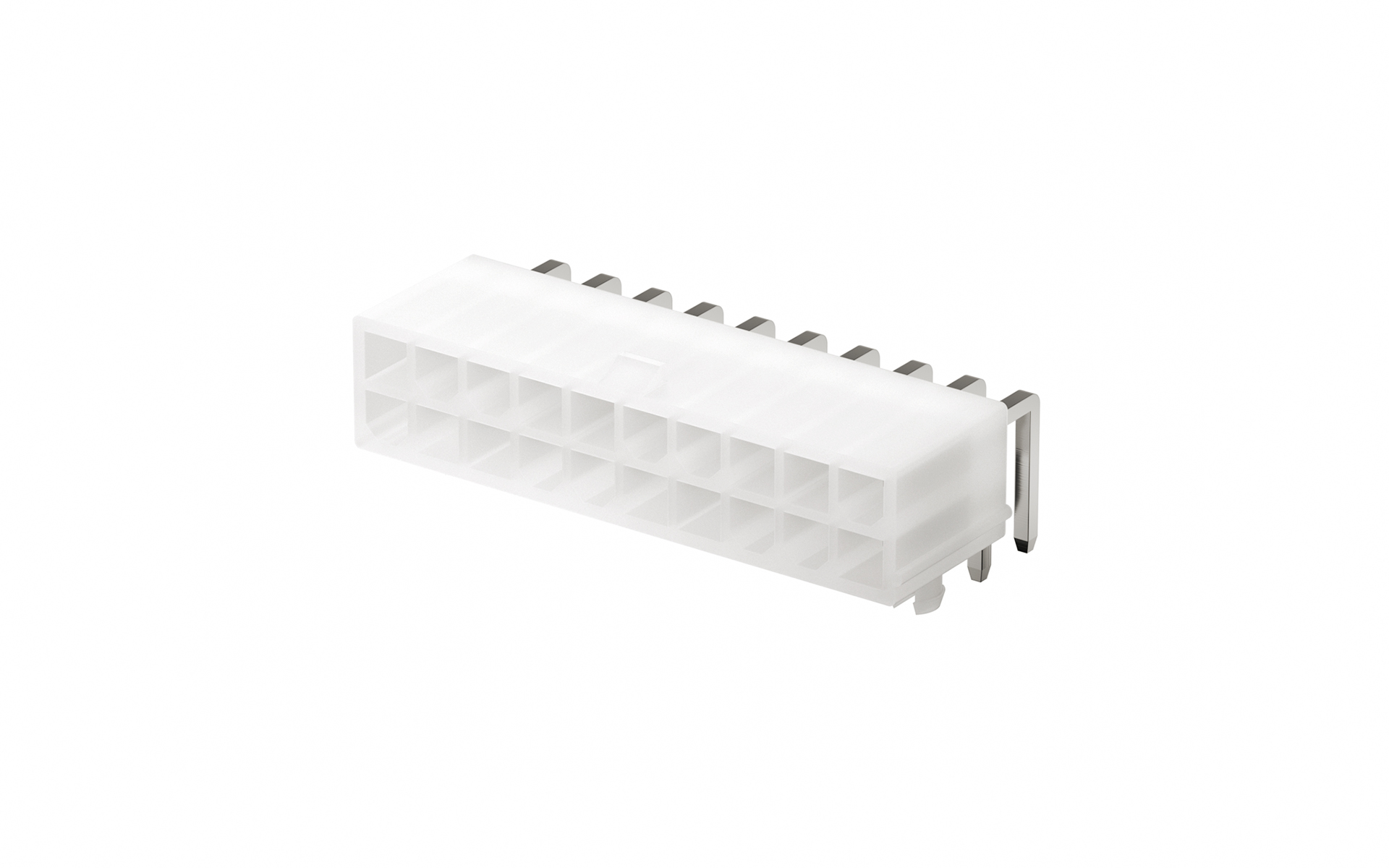

板装插座 4.2mm 插件 90° 16位(实心针)(带定位柱)
FWF42004-D16B22TK
Wafer 4.2mm 90°Angle 16Circuits (DIP)
FWF42004-D16B22TK Copy
Share this product
Stock(pcs)
126
Lead time

≦ 126 In stock

＞ 126 Estimated delivery date 2025-10-13

MPQ
200
MOQ
1000
Quantity Unit Price
1 $0.419696
10 $0.395828
50 $0.348091
100 $0.324223
500 $0.276486
1000 $0.215704
2500 $0.212739
5000 $0.209774
10000 $0.206809
25000 $0.203844

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
4.2mm
Row Option
Dual row
Number of Positions
16Circuits
Orientation
Right angle(90°)
Colour
Clear
Electrical
Current(Max)
9A
Voltage(Max)
250V
Contact Resistance
15 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-2
Packaging
Packaging
Tray

Product Drawings

FWF42004 series

Product Specifications

FWF42004Productspecification.pdf
Plug
Wire to board housing 4.2mm 16Circuits

FHG42001-D16M2TB

Wire to board housing 4.2mm 16Circuits
