FWJL24-D10020GN-01
JL24 ,双头线束 ,10位 ,0.2M
JL24, Two-way plug cable, 10Circuits, 0.2M
Product Number：FWJL24-D10020GN-01
Production Status： Active

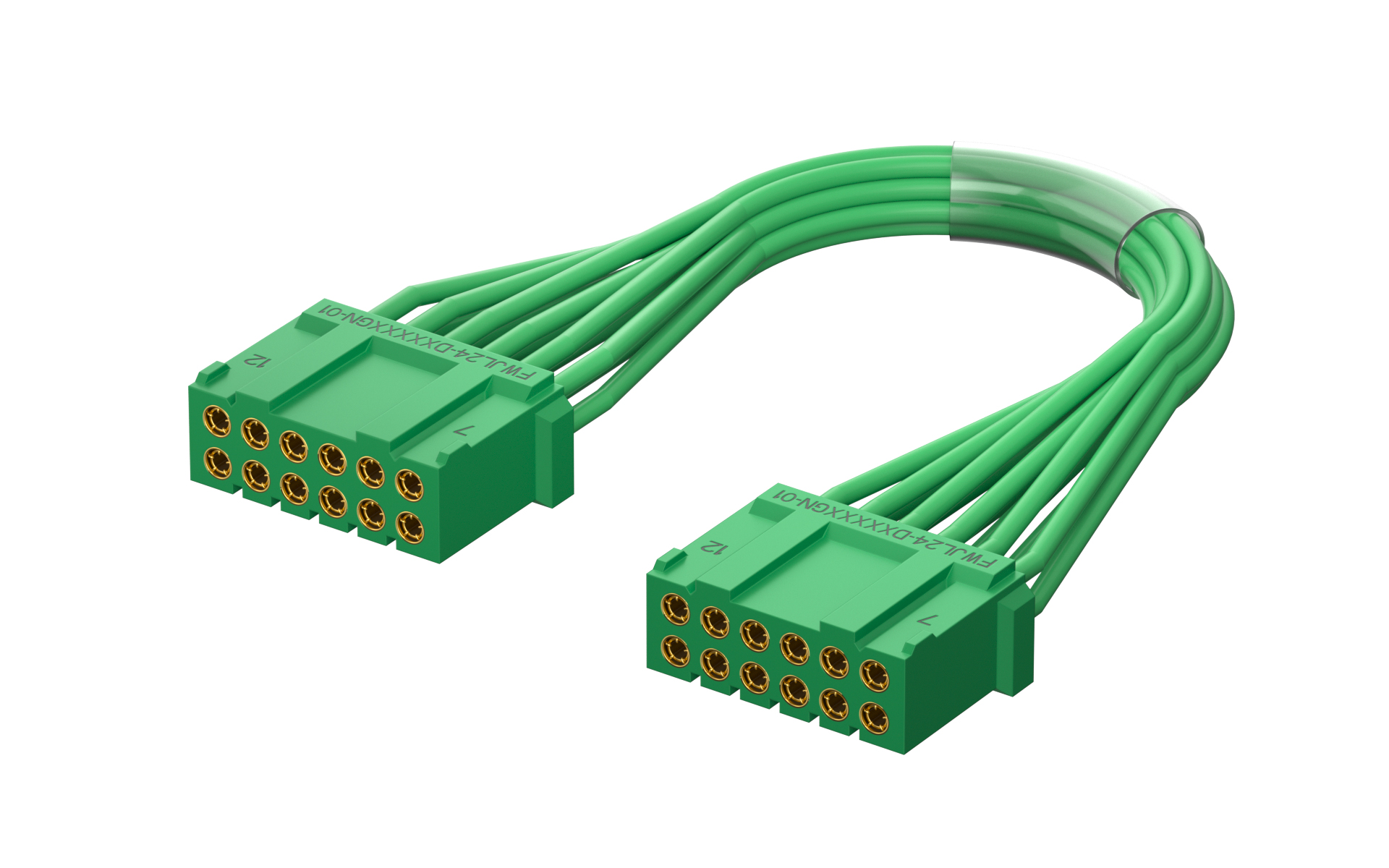

JL24, Two-way plug cable, 10Circuits, 0.2M
JL24, Two-way plug cable, 10Circuits, 0.2M
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

视频加载失败，请稍后重试。

{{ videoIndex + 1 }} / {{ videos.length }}
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{265.52997|tradeCurrencySymbol({digits:6})}}
10+ {{251.712557|tradeCurrencySymbol({digits:6})}}
50+ {{224.077732|tradeCurrencySymbol({digits:6})}}
100+ {{210.260319|tradeCurrencySymbol({digits:6})}}
500+ {{182.625494|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 10
MPQ 2000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Printed Circuit Connector
Product Category
JL24
Style
Cable assembly
Cable Category
Two-way plug cable
Number of Positions
10Circuits
Colour
Green
Cable Length(mm)
L=200mm
Current(Max)
1A
Voltage(Max)
300V
Operating Temperature Range
-55ºC~+125ºC
Packaging
PE Bag

Product Drawings

FWJL24-DXXXXXGN-01.pdf
Receptacle
JL24, Socket, 10Circuits, 90°Angle, Through Hole
F0JL24-S10RD000-01
JL24, Socket, 10Circuits, 90°Angle, Through Hole
JL24, Socket, 10Circuits, 180°Vertical, Through Hole
F1JL24-S10SD000-01
JL24, Socket, 10Circuits, 180°Vertical, Through Hole
JL24, Socket, 10Circuits, Vertical(180°), Through hole
F2JL24-S10SD000-01
JL24, Socket, 10Circuits, Vertical(180°), Through hole
JL24, Socket, 10Circuits, Vertical(180°), Through hole
F3JL24-S10SD000-01
JL24, Socket, 10Circuits, Vertical(180°), Through hole
