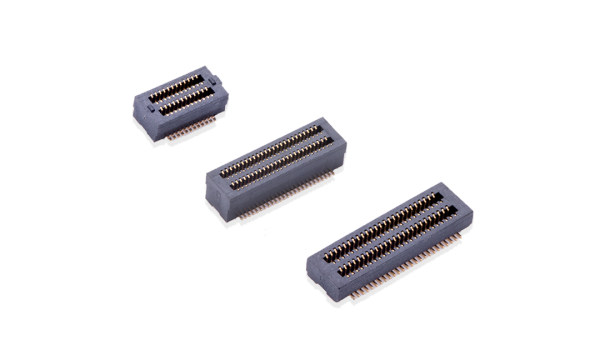

FBB05003-F Board to Board 0.5mm SMT_TXGA Industrial Electronic Co., Ltd.

FBB05003-F Board to Board 0.5mm SMT

EU RoHS
Compliant(2011/65/EU)
EU REACH
Dose not contain REACH SVHC(1907/2006/EC)
EU ELV
Compliant(2000/53/EC)

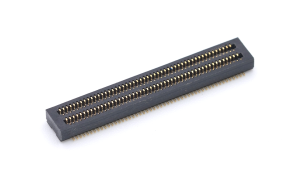

FBB05003-F100S1003K6MH22

Board to Board 0.5mm ,FEMALE ,100Circuits ,180° Vertical(SMT)(H1=2.2mm)

Stock(pcs)	15	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date when out of stock {{2026-04-19\|timezoneDate}}

FBB05003-F100S1003K6MH30

Board to Board 0.5mm ,FEMALE ,100Circuits ,180° Vertical(SMT)(H1=3mm)

Stock(pcs)	50	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date when out of stock {{2026-04-19\|timezoneDate}}

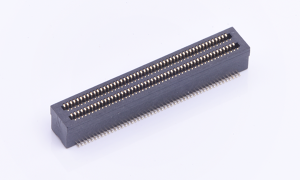

FBB05003-F100S1033K6MH45

Board to Board 0.5mm ,Female ,100Circuits ,180° Vertical(SMT) ,3μ"(H1=4.5mm)

Stock(pcs)	50	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date when out of stock {{2026-04-18\|timezoneDate}}

FBB05003-F10S1003K6MH40

Board to Board 0.5mm ,FEMALE ,10Circuits ,180° Vertical(SMT)(H1=4mm)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date {{2026-04-19\|timezoneDate}}

FBB05003-F12S1003K6MH22

Board to Board 0.5mm ,Female ,12Circuits ,180° Vertical(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date {{2026-04-18\|timezoneDate}}

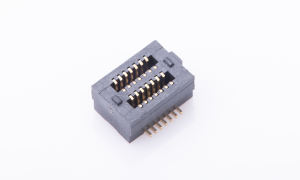

FBB05003-F14S1003K6MH30

Board to Board 180°Vertical 0.5mm 14Circuits(H1=3mm)

Stock(pcs)	47208	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FBB05003-F14S1003K6MH40

Board to Board 0.5mm ,FEMALE ,14Circuits ,180° Vertical(SMT)(H1=4mm)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date {{2026-04-19\|timezoneDate}}

FBB05003-F16S1003K6MH22

Board to Board 0.5mm ,Female ,16Circuits ,180° Vertical(SMT)(H1=2.2mm)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date {{2026-04-18\|timezoneDate}}

FBB05003-F20S1003K6MH22

Board to Board 0.5mm ,FEMALE ,20Circuits ,180° Vertical(SMT)(H1=2.2mm)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date {{2026-04-18\|timezoneDate}}

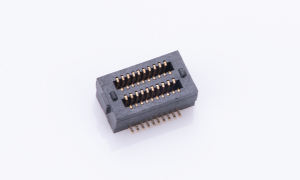

FBB05003-F20S1003K6MH30

Board to Board 180°Vertical 0.5mm 20Circuits(H1=3mm)

Stock(pcs)	38	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

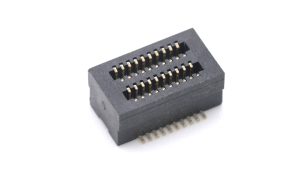

FBB05003-F20S1003K6MH35

Board to Board 180°Vertical 0.5mm 20Circuits(H1=3.5mm)

Stock(pcs)	834	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-18\|timezoneDate}}

FBB05003-F20S1003K6MH40

Board to Board 0.5mm ,FEMALE ,20Circuits ,180° Vertical(SMT)(H1=4mm)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date {{2026-04-19\|timezoneDate}}

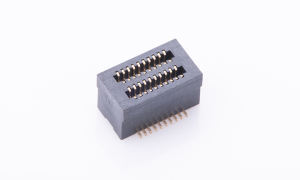

FBB05003-F20S1003K6MH45

Board to Board 0.5mm ,Female ,20Circuits ,180° Vertical(SMT)

Stock(pcs)	10	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date when out of stock {{2026-04-18\|timezoneDate}}

FBB05003-F22S1003K6MH22

Board to Board 0.5mm ,Female ,22Circuits ,180° Vertical(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date {{2026-04-18\|timezoneDate}}

FBB05003-F24S1003K6MH22

Board to Board 180°Vertical 0.5mm 24Circuits(H1=2.2mm)

Stock(pcs)	30	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-18\|timezoneDate}}

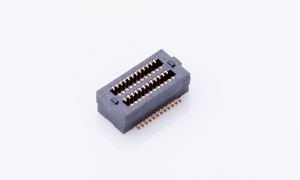

FBB05003-F24S1003K6MH30

Board to Board 180°Vertical 0.5mm 24Circuits(H1=3mm)

Stock(pcs)	2240	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FBB05003-F28S1003K6MH45

Board to Board 0.5mm ,FEMALE ,28Circuits ,180° Vertical(SMT)(H1=4.5mm)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date {{2026-04-19\|timezoneDate}}

FBB05003-F30S1003K6MH22

Board to Board 0.5mm ,Female ,30Circuits ,180° Vertical(SMT)(H1=2.2mm)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date {{2026-04-18\|timezoneDate}}

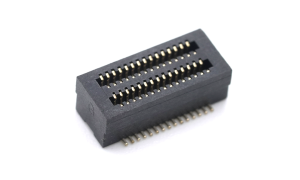

FBB05003-F30S1003K6MH35

Board to Board 0.5mm ,FEMALE ,30Circuits ,180° Vertical(SMT)(H1=3.5mm)

Stock(pcs)	6	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date when out of stock {{2026-04-19\|timezoneDate}}

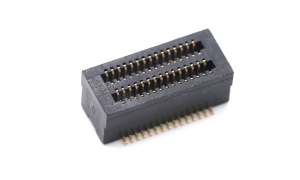

FBB05003-F30S1003K6MH40

Board to Board 0.5mm ,FEMALE ,30Circuits ,180° Vertical(SMT)(H1=4mm)

Stock(pcs)	178	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date when out of stock {{2026-04-19\|timezoneDate}}

FBB05003-F34S1003K6MH30

Board to Board 180°Vertical 0.5mm 34Circuits(H1=3mm)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

FBB05003-F40S1003K6MH35

Board to Board 180°Vertical 0.5mm 40Circuits(H1=3.5mm)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date {{2026-04-18\|timezoneDate}}

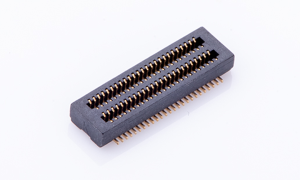

FBB05003-F50S1003K6MH22

Board to Board 0.5mm ,Female ,50Circuits ,180° Vertical(SMT)

Stock(pcs)	33	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date when out of stock {{2026-04-18\|timezoneDate}}

FBB05003-F50S1003K6MH30

Board to Board 0.5mm ,FEMALE ,50Circuits ,180° Vertical(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date {{2026-04-19\|timezoneDate}}

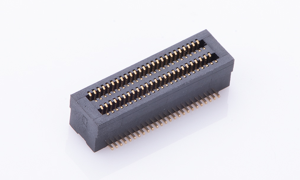

FBB05003-F50S1003K6MH40

Board to Board 0.5mm ,Female ,50Circuits ,180° Vertical(SMT)

Stock(pcs)	51	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date when out of stock {{2026-04-18\|timezoneDate}}

FBB05003-F50S1003K6MH45

Board to Board 0.5mm ,FEMALE ,50Circuits ,180° Vertical(SMT)(H1=4.5mm)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date {{2026-04-19\|timezoneDate}}

FBB05003-F60S1003K6MH45

Board to Board 0.5mm ,FEMALE,60Circuits,180° Vertical(SMT)(H1=4.5mm)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date {{2026-04-19\|timezoneDate}}

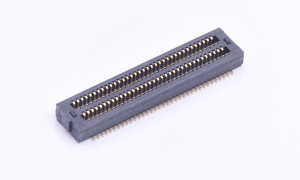

FBB05003-F70S1003K6MH22

Board to Board 0.5mm ,FEMALE ,70Circuits ,180° Vertical(SMT)

Stock(pcs)	30	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date when out of stock {{2026-04-18\|timezoneDate}}

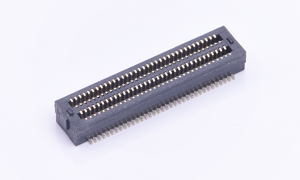

FBB05003-F70S1003K6MH30

Board to Board 0.5mm ,FEMALE ,70Circuits ,180° Vertical(SMT)(H1=3mm)

Stock(pcs)	30	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date when out of stock {{2026-04-19\|timezoneDate}}

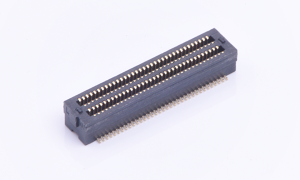

FBB05003-F70S1003K6MH35

Board to Board 0.5mm ,FEMALE ,70Circuits ,180° Vertical(SMT)(H1=3.5mm)

Stock(pcs)	30	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-19\|timezoneDate}}

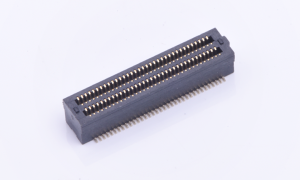

FBB05003-F70S1003K6MH40

Board to Board 180°Vertical 0.5mm 70Circuits(H1=4mm)

Stock(pcs)	30	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FBB05003-F70S1003K6MH45

Board to Board 0.5mm ,FEMALE ,70Circuits ,180° Vertical(SMT)(H1=4.5mm)

Stock(pcs)	29	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date when out of stock {{2026-04-19\|timezoneDate}}

FBB05003-F80S1003K6MH30

Board to Board 0.5mm ,FEMALE ,80Circuits ,180° Vertical(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1500
Lead time	Estimated delivery date {{2026-04-19\|timezoneDate}}

Category
CategoryBoard to board - Female Pitch：0.5mm （SMT）
Circuits8-50,60,70,80,90,100
Mating height3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5mm
Pitch0.5mm
Durabiliy (mating cycles max)30
Electrical
Current - Maximum per Contact0.50A
Voltage - Maximum50V
Contact Resistance40 mΩ Max
Insulation Resistance100 MΩ Min
Withstanding Voltage250V AC r.m.s
Temperature Range operating-25ºC~+85ºC
Material and Plating
Material-MetalPhosphor Bronze
Material - Plating MatingGold
Material - Plating TerminationGold
Material - ResinPA9T UL94V-0
Compatible Parts
PulgFBB05003-M
Receptacle-
Terminal-
Assembly shell-
