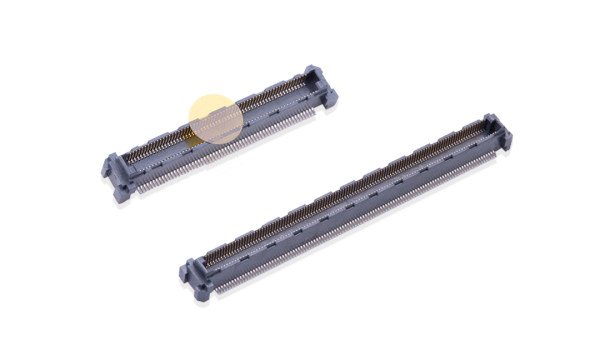

FBB05009-F Board to Board 0.5mm SMT
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

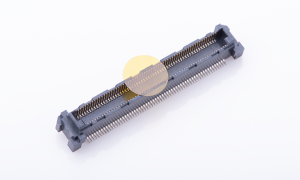

FBB05009-F120S3013K6M
Board to Board 0.5mm ,Female ,120Circuits ,180° Vertical(SMT)
Stock(pcs) 312 Status Active MPQ 500 MOQ 500 Lead time Estimated delivery date when out of stock {{2026-04-18|timezoneDate}} -

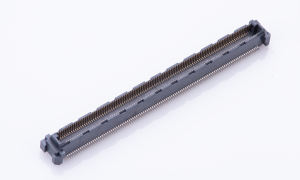

FBB05009-F220S3013K6M
Board to Board 0.5mm ,Female ,220Circuits ,180° Vertical(SMT)
Stock(pcs) 95 Status Active MPQ 500 MOQ 500 Lead time Estimated delivery date when out of stock {{2026-04-18|timezoneDate}} -
FBB05009-F220S3033K6M
Board to Board 0.5mm ,Female ,220Circuits ,180° Vertical(SMT)
Stock(pcs) 0 Status Discontinued MPQ 1000 MOQ 1000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}}
- Category
- CategoryBoard to board - Female Pitch：0.5mm （SMT）
- Circuits120,220
- Mating height6mm
- Pitch0.5mm
- Durabiliy (mating cycles max)30
- Electrical
- Current - Maximum per Contact0.50A
- Voltage - Maximum50V
- Contact Resistance55 mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage200V AC r.m.s
- Temperature Range operating-40ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold
- Material - Plating TerminationTin
- Material - ResinLCP UL94V-0
- Compatible Parts
- PulgFBB05009-M
- Receptacle-
- Terminal-
- Assembly shell-
