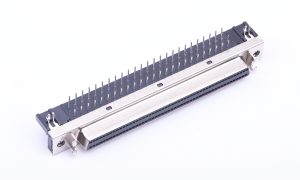

FCS10007 SCSI Connector 100Circuits 90°Angle Female
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-
FCS10007-F0DB300K6KA
SCSI Connector 100Circuit ,Female ,90° Angle(DIP) ,Positive needle
Stock(pcs) 0 Status Active MPQ 50 MOQ 500 Lead time Estimated delivery date 2025-05-25 -
FCS10007-F0DB300K6KB
SCSI Connector 100Circuit ,Female ,90° Angle(DIP) ,Versa needle
Stock(pcs) 8 Status Active MPQ 50 MOQ 500 Lead time Estimated delivery date when out of stock 2025-05-25
- Category
- CategorySCSI Connector 90°Angle Female
- Circuits100
- Pitch1.27mm
- Height10.2mm
- Electrical
- Current - Maximum per Contact1.00A
- Voltage - Maximum250V
- Contact Resistance35 mΩ Max
- Insulation Resistance500 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-40℃+105℃
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold
- Material - Plating TerminationTin
- Material - ResinPBT UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
