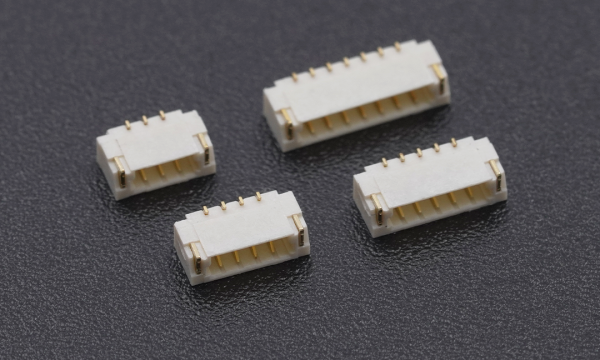

FWF08002 Wafer 0.80mm 90°Angle (SMT)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

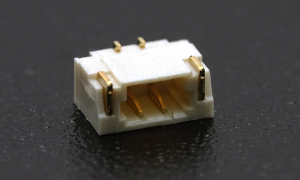

FWF08002-S02B13W5M
Wafer 0.80mm ,2Circuits ,90° Angle(SMT) ,Gold ,LCP
Stock(pcs) 10 Status Active MPQ 3500 MOQ 3500 Lead time Estimated delivery date when out of stock 2025-05-31 -
FWF08002-S02B14W5M
Wafer 0.80mm 90°Angle 2Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 3500 MOQ 3500 Lead time Estimated delivery date 2025-05-27 -
FWF08002-S02B24W5M
Wafer 0.80mm 90°Angle 2Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 4000 MOQ 4000 Lead time Estimated delivery date 2025-05-27 -

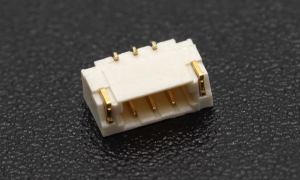

FWF08002-S03B13W5M
Wafer 0.80mm ,3Circuits ,90° Angle(SMT) ,Gold ,LCP
Stock(pcs) 39 Status Active MPQ 3500 MOQ 3500 Lead time Estimated delivery date when out of stock 2025-05-31 -

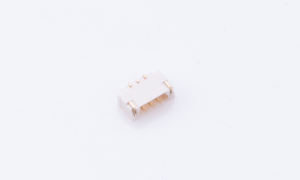

FWF08002-S03B14W5M
Wafer 0.80mm 90°Angle 3Circuits (SMT)
Stock(pcs) 1 Status Discontinued MPQ 3500 MOQ 3500 Lead time Estimated delivery date when out of stock 2025-05-27 -
FWF08002-S03B24W5M
Wafer 0.80mm 90°Angle 3Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 4000 MOQ 4000 Lead time Estimated delivery date 2025-05-27 -

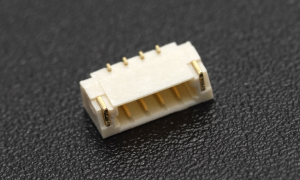

FWF08002-S04B13W5M
Wafer 0.80mm ,4Circuits ,90° Angle(SMT) ,Gold ,LCP
Stock(pcs) 502 Status Active MPQ 3500 MOQ 3500 Lead time Estimated delivery date when out of stock 2025-05-31 -

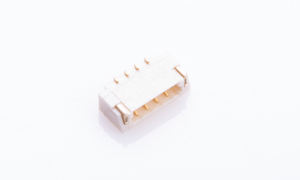

FWF08002-S04B14W5M
Wafer 0.80mm 90°Angle 4Circuits (SMT)
Stock(pcs) 70 Status Discontinued MPQ 3500 MOQ 3500 Lead time Estimated delivery date when out of stock 2025-05-27 -
FWF08002-S04B24W5M
Wafer 0.80mm 90°Angle 4Circuits (SMT)(HF)
Stock(pcs) 0 Status Discontinued MPQ 4000 MOQ 4000 Lead time Estimated delivery date 2025-05-27 -

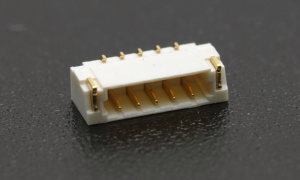

FWF08002-S05B13W5M
Wafer 0.80mm ,5Circuits ,90° Angle(SMT) ,Gold ,LCP
Stock(pcs) 1297 Status Active MPQ 3500 MOQ 3500 Lead time Estimated delivery date when out of stock 2025-05-31 -

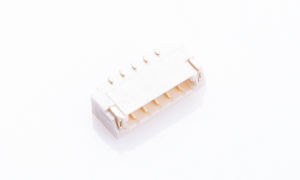

FWF08002-S05B14W5M
Wafer 0.80mm 90°Angle 5Circuits (SMT)
Stock(pcs) 40 Status Discontinued MPQ 3500 MOQ 3500 Lead time Estimated delivery date when out of stock 2025-05-27 -
FWF08002-S05B24W5M
Wafer 0.80mm 90°Angle 5Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 4000 MOQ 4000 Lead time Estimated delivery date 2025-05-27 -

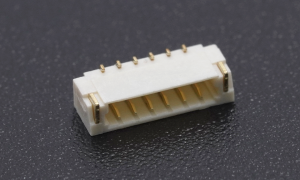

FWF08002-S06B13W5M
Wafer 0.80mm ,6Circuits ,90° Angle(SMT) ,Gold ,LCP
Stock(pcs) 135 Status Active MPQ 3500 MOQ 3500 Lead time Estimated delivery date when out of stock 2025-05-31 -

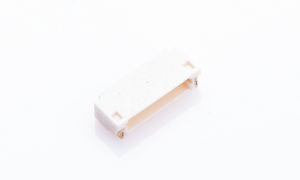

FWF08002-S06B14W5M
Wafer 0.80mm 90°Angle 6Circuits (SMT)
Stock(pcs) 8 Status Discontinued MPQ 3500 MOQ 3500 Lead time Estimated delivery date when out of stock 2025-05-27 -
FWF08002-S06B24W5M
Wafer 0.80mm 90°Angle 6Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 4000 MOQ 4000 Lead time Estimated delivery date 2025-05-27 -

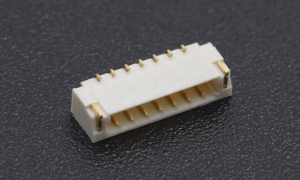

FWF08002-S07B13W5M
Wafer 0.80mm ,7Circuits ,90° Angle(SMT) ,Gold ,LCP
Stock(pcs) 0 Status Active MPQ 3500 MOQ 3500 Lead time Estimated delivery date 2025-05-31 -

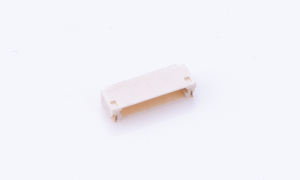

FWF08002-S07B14W5M
Wafer 0.80mm 90°Angle 7Circuits (SMT)
Stock(pcs) 70 Status Discontinued MPQ 3500 MOQ 3500 Lead time Estimated delivery date when out of stock 2025-05-27 -
FWF08002-S07B24W5M
Wafer 0.80mm 90°Angle 7Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 4000 MOQ 4000 Lead time Estimated delivery date 2025-05-27 -

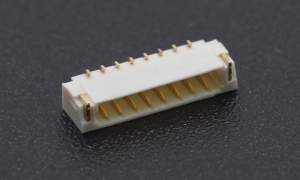

FWF08002-S08B13W5M
Wafer 0.80mm ,8Circuits ,90° Angle(SMT) ,Gold ,LCP
Stock(pcs) 11 Status Active MPQ 3500 MOQ 3500 Lead time Estimated delivery date when out of stock 2025-05-31 -

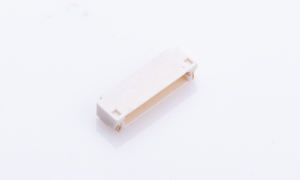

FWF08002-S08B14W5M
Wafer 0.80mm 90°Angle 8Circuits (SMT)
Stock(pcs) 1 Status Discontinued MPQ 3500 MOQ 3500 Lead time Estimated delivery date when out of stock 2025-05-27 -
FWF08002-S08B24W5M
Wafer 0.80mm 90°Angle 8Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 4000 MOQ 4000 Lead time Estimated delivery date 2025-05-27 -

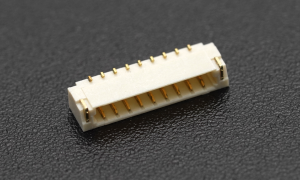

FWF08002-S09B13W5M
Wafer 0.80mm ,9Circuits ,90° Angle(SMT) ,Gold ,LCP
Stock(pcs) 40 Status Active MPQ 3500 MOQ 3500 Lead time Estimated delivery date when out of stock 2025-05-31 -
FWF08002-S09B14W5M
Wafer 0.80mm 90°Angle 9Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 3500 MOQ 3500 Lead time Estimated delivery date 2025-05-27 -
FWF08002-S09B24W5M
Wafer 0.80mm 90°Angle 9Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 4000 MOQ 4000 Lead time Estimated delivery date 2025-05-27 -

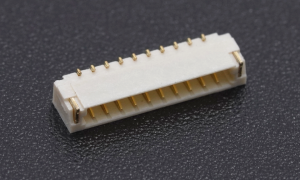

FWF08002-S10B13W5M
Wafer 0.80mm ,10Circuits ,90° Angle(SMT) ,Gold ,LCP
Stock(pcs) 41 Status Active MPQ 3500 MOQ 3500 Lead time Estimated delivery date when out of stock 2025-05-31 -
FWF08002-S10B14W5M
Wafer 0.80mm 90°Angle 10Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 3500 MOQ 3500 Lead time Estimated delivery date 2025-05-27 -
FWF08002-S10B24W5M
Wafer 0.80mm 90°Angle 10Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 4000 MOQ 4000 Lead time Estimated delivery date 2025-05-27 -
FWF08002-S11B13W5M
Wafer 0.80mm ,11Circuits ,90° Angle(SMT) ,Gold ,LCP
Stock(pcs) 0 Status Discontinued MPQ 3500 MOQ 3500 Lead time Estimated delivery date 2025-05-31 -
FWF08002-S11B14W5M
Wafer 0.80mm 90°Angle 11Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 3500 MOQ 3500 Lead time Estimated delivery date 2025-05-27 -
FWF08002-S11B24W5M
Wafer 0.80mm 90°Angle 11Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 4000 MOQ 4000 Lead time Estimated delivery date 2025-05-27 -

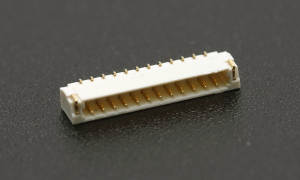

FWF08002-S12B13W5M
Wafer 0.80mm ,12Circuits ,90° Angle(SMT) ,Gold ,LCP
Stock(pcs) 2830 Status Active MPQ 3500 MOQ 3500 Lead time Estimated delivery date when out of stock 2025-05-31 -
FWF08002-S12B14W5M
Wafer 0.80mm 90°Angle 12Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 3500 MOQ 3500 Lead time Estimated delivery date 2025-05-27 -
FWF08002-S12B24W5M
Wafer 0.80mm 90°Angle 12Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 4000 MOQ 4000 Lead time Estimated delivery date 2025-05-27 -
FWF08002-S13B13W5M
Wafer 0.80mm ,13Circuits ,90° Angle(SMT) ,Gold ,LCP
Stock(pcs) 0 Status Discontinued MPQ 3500 MOQ 3500 Lead time Estimated delivery date 2025-05-31 -

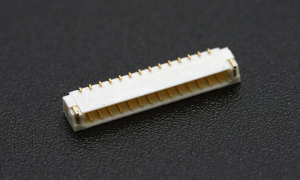

FWF08002-S14B13W5M
Wafer 0.80mm ,14Circuits ,90° Angle(SMT) ,Gold ,LCP
Stock(pcs) 816 Status Active MPQ 3500 MOQ 3500 Lead time Estimated delivery date when out of stock 2025-05-31 -
FWF08002-S14B14W5M
Wafer 0.80mm 90°Angle 14Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 3500 MOQ 3500 Lead time Estimated delivery date 2025-05-27 -
FWF08002-S14B24W5M
Wafer 0.80mm 90°Angle 14Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 4000 MOQ 4000 Lead time Estimated delivery date 2025-05-27 -
FWF08002-S15B13W5M
Wafer 0.80mm ,15Circuits ,90° Angle(SMT) ,Gold ,LCP
Stock(pcs) 0 Status Discontinued MPQ 3500 MOQ 3500 Lead time Estimated delivery date 2025-05-31 -

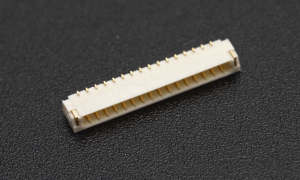

FWF08002-S16B13W5M
Wafer 0.80mm ,16Circuits ,90° Angle(SMT) ,Gold ,LCP
Stock(pcs) 14560 Status Active MPQ 3500 MOQ 3500 Lead time Estimated delivery date when out of stock 2025-05-31 -
FWF08002-S16B14W5M
Wafer 0.80mm 90°Angle 16Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 3500 MOQ 3500 Lead time Estimated delivery date 2025-05-27 -
FWF08002-S16B24W5M
Wafer 0.80mm 90°Angle 16Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 4000 MOQ 4000 Lead time Estimated delivery date 2025-05-27 -

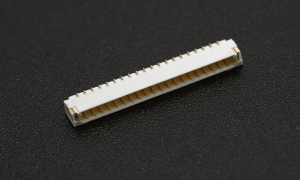

FWF08002-S20B13W5M
Wafer 0.80mm ,20Circuits ,90° Angle(SMT) ,Gold ,LCP
Stock(pcs) 48 Status Active MPQ 3500 MOQ 3500 Lead time Estimated delivery date when out of stock 2025-05-31 -
FWF08002-S20B14W5M
Wafer 0.80mm 90°Angle 20Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 3500 MOQ 3500 Lead time Estimated delivery date 2025-05-27 -
FWF08002-S20B24W5M
Wafer 0.80mm 90°Angle 20Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 4000 MOQ 4000 Lead time Estimated delivery date 2025-05-27
- Category
- CategoryWafer 90°Angle (SMT)
- Circuits2-10,12,14,16,20
- Pitch0.8mm
- Height1.7mm
- Electrical
- Current - Maximum per Contact0.50A
- Voltage - Maximum30V
- Contact Resistance20 mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage200V AC r.m.s
- Temperature Range operating-25ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold/Tin
- Material - Plating TerminationGold/Tin
- Material - ResinLCP UL94V-0
- Compatible Parts
- PulgFHG08002
- Receptacle-
- TerminalFT08001
- Assembly shell-
