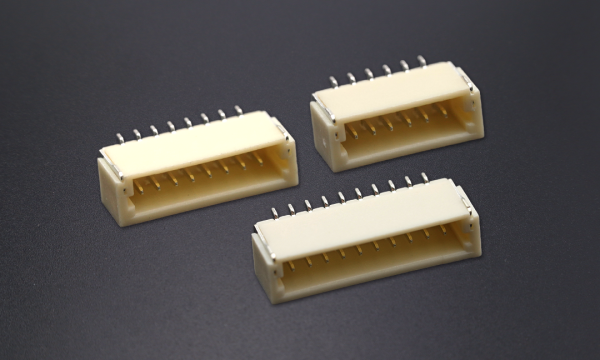

FWF10001 Wafer 1mm 90°Angle (SMT)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

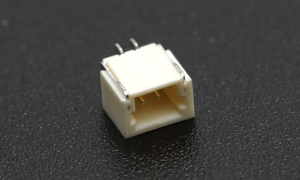

FWF10001-S02B24W5M
Wafer 1mm 90°Angle 2Circuits (SMT)
Stock(pcs) 6 Status Active MPQ 1500 MOQ 1500 Lead time Estimated delivery date when out of stock 2025-05-27 -

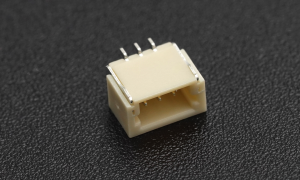

FWF10001-S03B24W5M
Wafer 1mm 90°Angle 3Circuits (SMT)
Stock(pcs) 54 Status Active MPQ 1500 MOQ 1500 Lead time Estimated delivery date when out of stock 2025-05-27 -

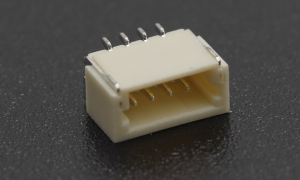

FWF10001-S04B24W5M
Wafer 1mm 90°Angle 4Circuits (SMT)
Stock(pcs) 1444 Status Active MPQ 1500 MOQ 1500 Lead time Estimated delivery date when out of stock 2025-05-27 -

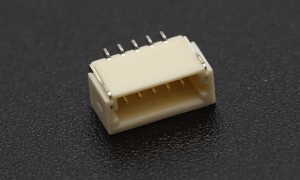

FWF10001-S05B24W5M
Wafer 1mm 90°Angle 5Circuits (SMT)
Stock(pcs) 12296 Status Active MPQ 1500 MOQ 1500 Lead time Estimated delivery date when out of stock 2025-05-27 -

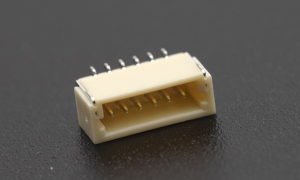

FWF10001-S06B24W5M
Wafer 1mm 90°Angle 6Circuits (SMT)
Stock(pcs) 0 Status Active MPQ 1500 MOQ 1500 Lead time Estimated delivery date 2025-05-27 -

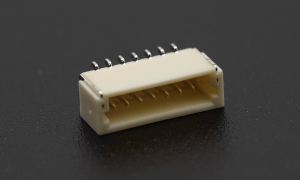

FWF10001-S07B24W5M
Wafer 1mm 90°Angle 7Circuits (SMT)
Stock(pcs) 650 Status Active MPQ 1500 MOQ 1500 Lead time Estimated delivery date when out of stock 2025-05-27 -

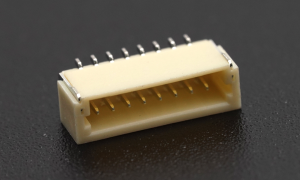

FWF10001-S08B24W5M
Wafer 1mm 90°Angle 8Circuits (SMT)
Stock(pcs) 1657 Status Active MPQ 1500 MOQ 1500 Lead time Estimated delivery date when out of stock 2025-05-27 -

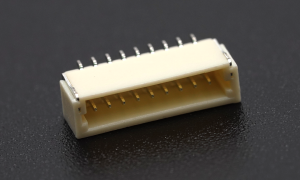

FWF10001-S09B24W5M
Wafer 1mm 90°Angle 9Circuits (SMT)
Stock(pcs) 137 Status Active MPQ 1500 MOQ 1500 Lead time Estimated delivery date when out of stock 2025-05-27 -

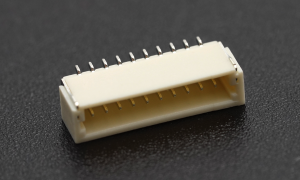

FWF10001-S10B24W5M
Wafer 1mm 90°Angle 10Circuits (SMT)
Stock(pcs) 1447 Status Active MPQ 1500 MOQ 1500 Lead time Estimated delivery date when out of stock 2025-05-27 -

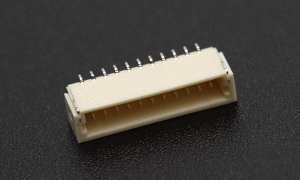

FWF10001-S11B24W5M
Wafer 1mm 90°Angle 11Circuits (SMT)
Stock(pcs) 51 Status Active MPQ 1500 MOQ 1500 Lead time Estimated delivery date when out of stock 2025-05-27 -

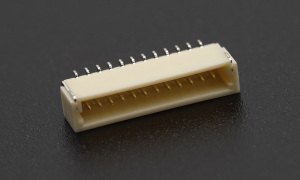

FWF10001-S12B24W5M
Wafer 1mm 90°Angle 12Circuits (SMT)
Stock(pcs) 1835 Status Active MPQ 1500 MOQ 1500 Lead time Estimated delivery date when out of stock 2025-05-27 -

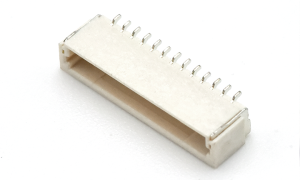

FWF10001-S13B24W5M
Wafer 1mm 90°Angle 13Circuits (SMT)
Stock(pcs) 30 Status Active MPQ 1500 MOQ 1500 Lead time Estimated delivery date when out of stock 2025-05-27 -

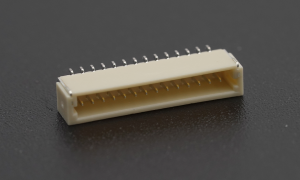

FWF10001-S14B24W5M
Wafer 1mm 90°Angle 14Circuits (SMT)
Stock(pcs) 475 Status Active MPQ 1500 MOQ 1500 Lead time Estimated delivery date when out of stock 2025-05-27 -

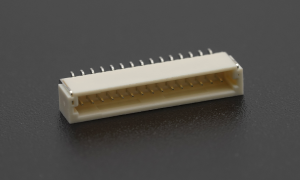

FWF10001-S15B24W5M
Wafer 1mm 90°Angle 15Circuits (SMT)
Stock(pcs) 10 Status Active MPQ 1500 MOQ 1500 Lead time Estimated delivery date when out of stock 2025-05-27 -

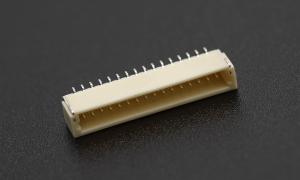

FWF10001-S16B24W5M
Wafer 1mm 90°Angle 16Circuits (SMT)
Stock(pcs) 300 Status Active MPQ 1500 MOQ 1500 Lead time Estimated delivery date when out of stock 2025-05-27 -
FWF10001-S17B24W5M
Wafer 1mm 90°Angle 17Circuits (SMT)
Stock(pcs) 0 Status Active MPQ 1500 MOQ 1500 Lead time Estimated delivery date 2025-05-27 -
FWF10001-S18B24W5M
Wafer 1mm 90°Angle 18Circuits (SMT)
Stock(pcs) 0 Status Active MPQ 1500 MOQ 1500 Lead time Estimated delivery date 2025-05-27 -

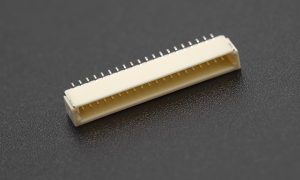

FWF10001-S20B24W5M
Wafer 1mm 90°Angle 20Circuits (SMT)
Stock(pcs) 112 Status Active MPQ 1500 MOQ 1500 Lead time Estimated delivery date when out of stock 2025-05-27
- Category
- CategoryWafer 90°Angle (SMT)
- Circuits2-18,20
- Pitch1.0mm
- Height4.35mm
- Electrical
- Current - Maximum per Contact1.00A
- Voltage - Maximum50V
- Contact Resistance20 mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-25ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingTin
- Material - Plating TerminationTin
- Material - ResinPA9T UL94V-0
- Compatible Parts
- PulgFHG10001
- Receptacle-
- TerminalFT10001
- Assembly shell-
